1. The Foundation: High-Toughness PP Resin Deck
The foundation of a trolley lies in its deck. This cart abandons traditional metal or wood platforms in favor of polypropylene (PP) resin material. This was a critical engineering decision:
- Lightweight and High-Strength: While providing robust support, PP material significantly reduces the overall vehicle weight (the entire trolley is only 31 kg or approximately 68 lbs). This makes it easier to start and move, even when fully loaded.
- Exceptional Durability: PP material offers excellent impact resistance, corrosion resistance, and weather resistance. It won't rust like metal or deform from moisture like wood, greatly extending its service life.
- Integrally Molded Details: The deck, measuring 1277mm x 425mm x 40mm, features a textured anti-slip surface and a reinforced rib structure, both of which are integrally molded to ensure structural integrity and functional reliability.

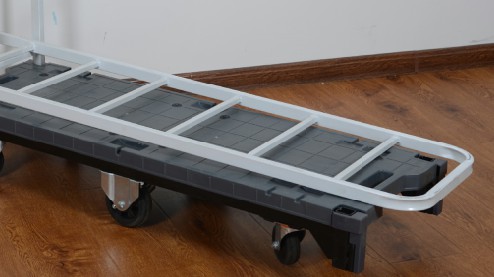

2. The Core Drive: The Innovative Six-Wheel Mobility System
The secret to this trolley's maneuverability lies in its unique six-wheel configuration:
- Four Swivel Casters (φ100mm): Located at the four corners of the deck, these are made of rubber material to ensure smooth and low-noise movement.
- Two Rigid Casters (φ125mm): Positioned in the center of the deck, these have a larger diameter and serve as the pivot axis and primary load-bearing wheels.
This "4+2" combination gives the cart two modes of movement: it can travel in a stable straight line like a traditional trolley, and it can perform a zero-radius, on-the-spot rotation using the central wheels as a pivot. This is a massive advantage that traditional four-wheeled trolleys cannot match, especially in space-constrained situations like retail aisles or tight warehouse corners.
3. The Structural Skeleton: High-Strength Carbon Steel Side Panels
To safely transport tall stacks of goods, the strength of the side panels is crucial. The side panels are made of carbon steel, with dimensions of W400mm x H1440mm.
- Rigidity and Toughness: Carbon steel provides excellent rigidity to effectively prevent goods from tipping over, while maintaining enough toughness to absorb energy from accidental impacts.
- Modular Design: The side panels and deck have a detachable structure, which facilitates transportation and storage and also allows for the possibility of adding optional middle shelves.
4. Load Capacity: From Standard to Heavy-Duty
The standard model is designed with a 350 kg (approx. 770 lbs) load capacity, sufficient for most retail and light industrial applications. However, our engineering team has also demonstrated the platform's immense potential by offering a heavy-duty option that can be upgraded to 1000 kg (approx. 2200 lbs or 1 ton). This is made possible by the deck's robust structural design and the reinforcement of key components like wheels and bearings.
Conclusion
Every detail of the u boat trolley embodies the engineering principle of "form follows function." From the lightweight durability of the PP resin deck to the ultimate maneuverability of the six-wheel system and the solid reliability of the carbon steel side panels, it is not just a handling tool but an industrial design masterpiece that integrates material science, structural mechanics, and ergonomics.
