Streamlining Pipe Storage: How a Custom Rack System Solved a Common Warehouse Challenge

Efficient storage solutions are crucial for businesses dealing with long materials like pipes. In this case study, we explore how a major US-based plumbing supply distributor significantly improved their warehouse operations by implementing a custom stack rack system.

The Challenge: Inefficient and Space-Consuming Pipe Storage

Like many businesses handling long pipes, the client faced several challenges with their existing storage methods. These included:

• Wasted Space: Traditional storage often leads to inefficient use of vertical and horizontal space.
• Difficult Access: Retrieving specific pipes could be time-consuming and potentially hazardous.
• Risk of Damage: Pipes stored improperly are more susceptible to bending, scratching, or other damage.
• Limited Stacking: Safely stacking long pipes can be challenging, further limiting storage capacity.

The Solution: Implementing a Versatile Stack Rack System

To overcome these hurdles, the client turned to a robust and intelligently designed storage solution specifically engineered for long materials like 20-foot plastic and steel pipes. The key features of this stack rack that addressed the client's needs were:

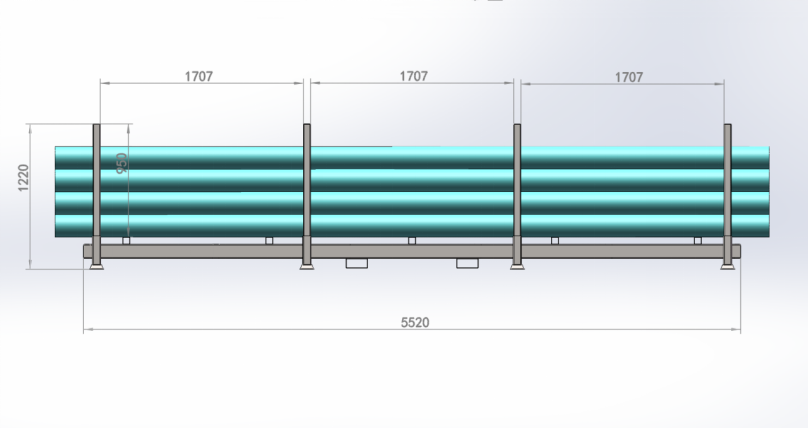

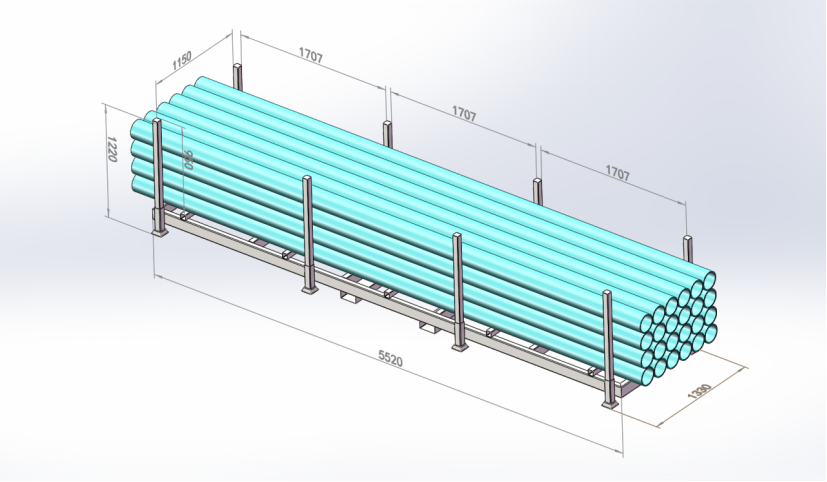

• Optimized Dimensions: With internal dimensions of 45" x 37", the racks provide ample space for a significant quantity of pipes while maintaining a manageable footprint.
• High Load Capacity: Each unit can safely hold up to 4,400 lbs of pipes, ensuring secure storage of even heavy materials.

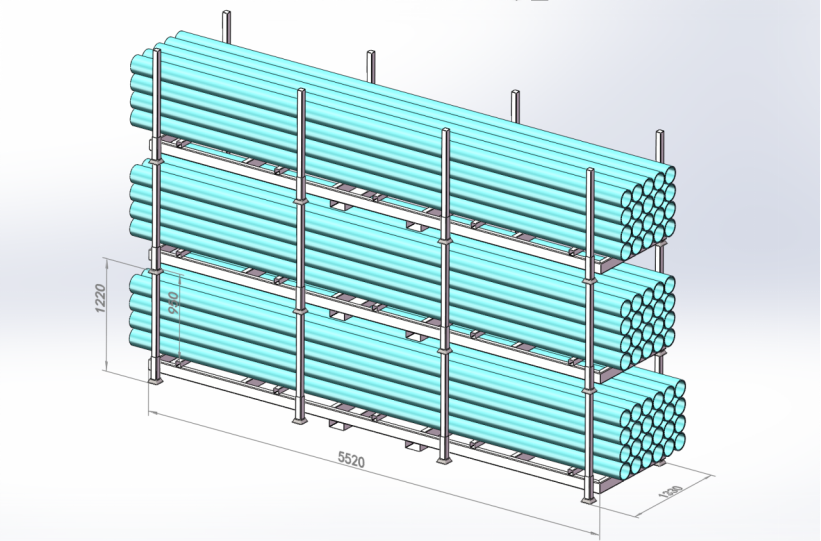

• Stackability: The system is designed for three-high stacking, maximizing vertical storage space and significantly increasing overall warehouse capacity.
• Forklift Accessibility: The design allows for easy and efficient loading and unloading of pipes using standard forklifts, streamlining warehouse operations.

Key Benefits Realized by the Client

By implementing this modular system, our client experienced a significant positive impact on their storage operations:

• Increased Storage Capacity: The ability to stack units three high dramatically increased the client's storage capacity within the same warehouse footprint.
• Improved Warehouse Organization: The uniform and structured nature of the system led to a more organized and easily navigable warehouse.
• Enhanced Efficiency: Forklift accessibility allowed for faster and more efficient retrieval and placement of pipes, saving valuable time and resources.
• Reduced Risk of Damage: The secure containment provided by the racks minimized the risk of pipes being damaged during storage and handling.
• Cost-Effective Solution: While there was an initial investment, the long-term benefits of increased efficiency, reduced damage, and optimized space utilization provided a strong return on investment.

Get a free quote

Packaging and Transportation Efficiency

The system is also designed with efficient transportation in mind. Up to 24 units can be accommodated in a standard 40-foot high container (18 laid flat and 6 standing), making shipping and logistics cost-effective. The standard packaging using wrapping film and strapping ensures the units are protected during transit. For even greater protection, optional wooden box packaging is available.

Safety First

This storage system is designed for safe operation. However, it's important to follow these guidelines:

• Ensure forklifts operate at a consistent speed when entering and lifting the racks to prevent damage.
• Regularly inspect the base and uprights for any signs of bending, deformation, or weld issues to ensure structural integrity.
• When stacking, always ensure the upper rack's feet are fully and securely placed on top of the lower rack's uprights to prevent tipping.

The implementation of this stack rack storage system provided our client with a robust, efficient, and safe solution for storing their long plastic and steel pipes. By maximizing storage density, improving organization, and streamlining handling processes, these racks proved to be a valuable asset in optimizing their warehouse operations.
