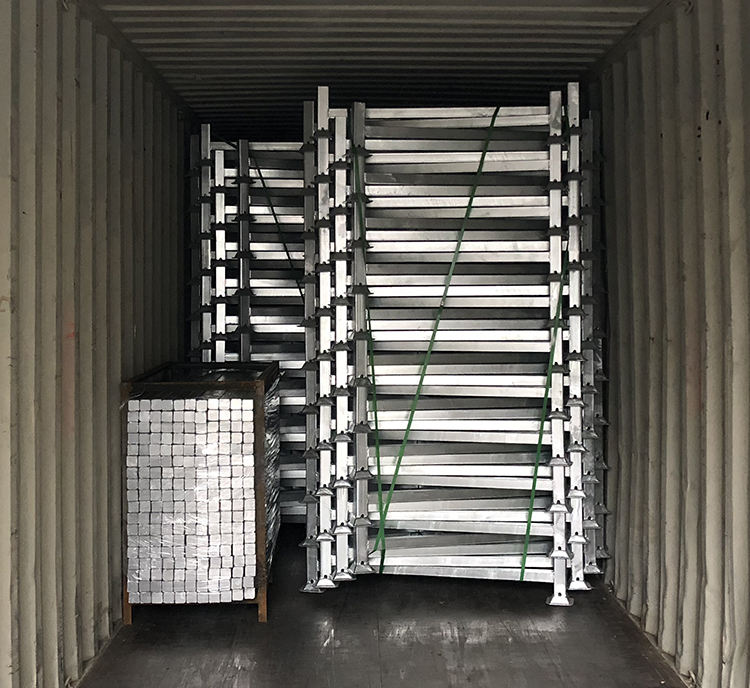

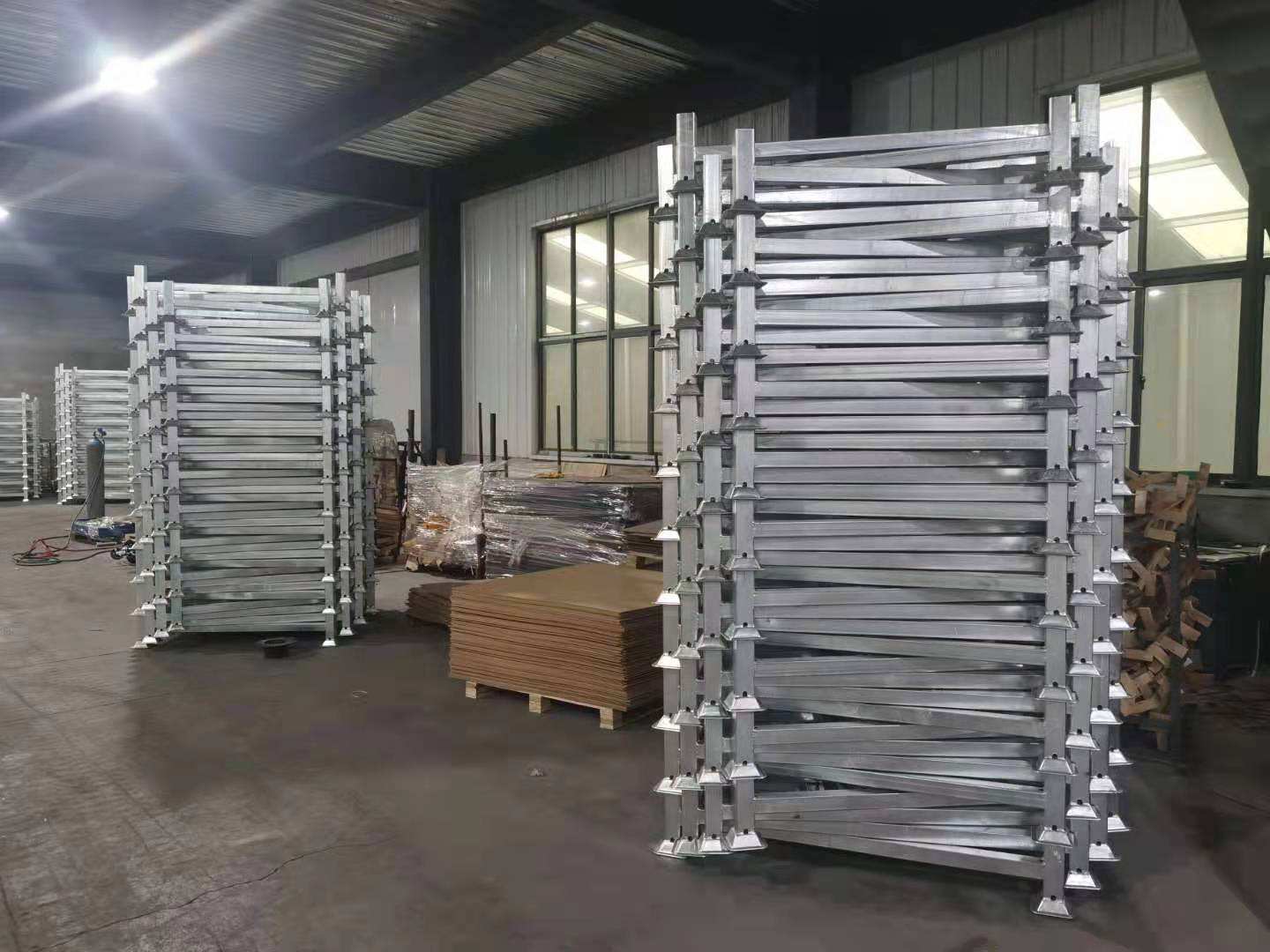

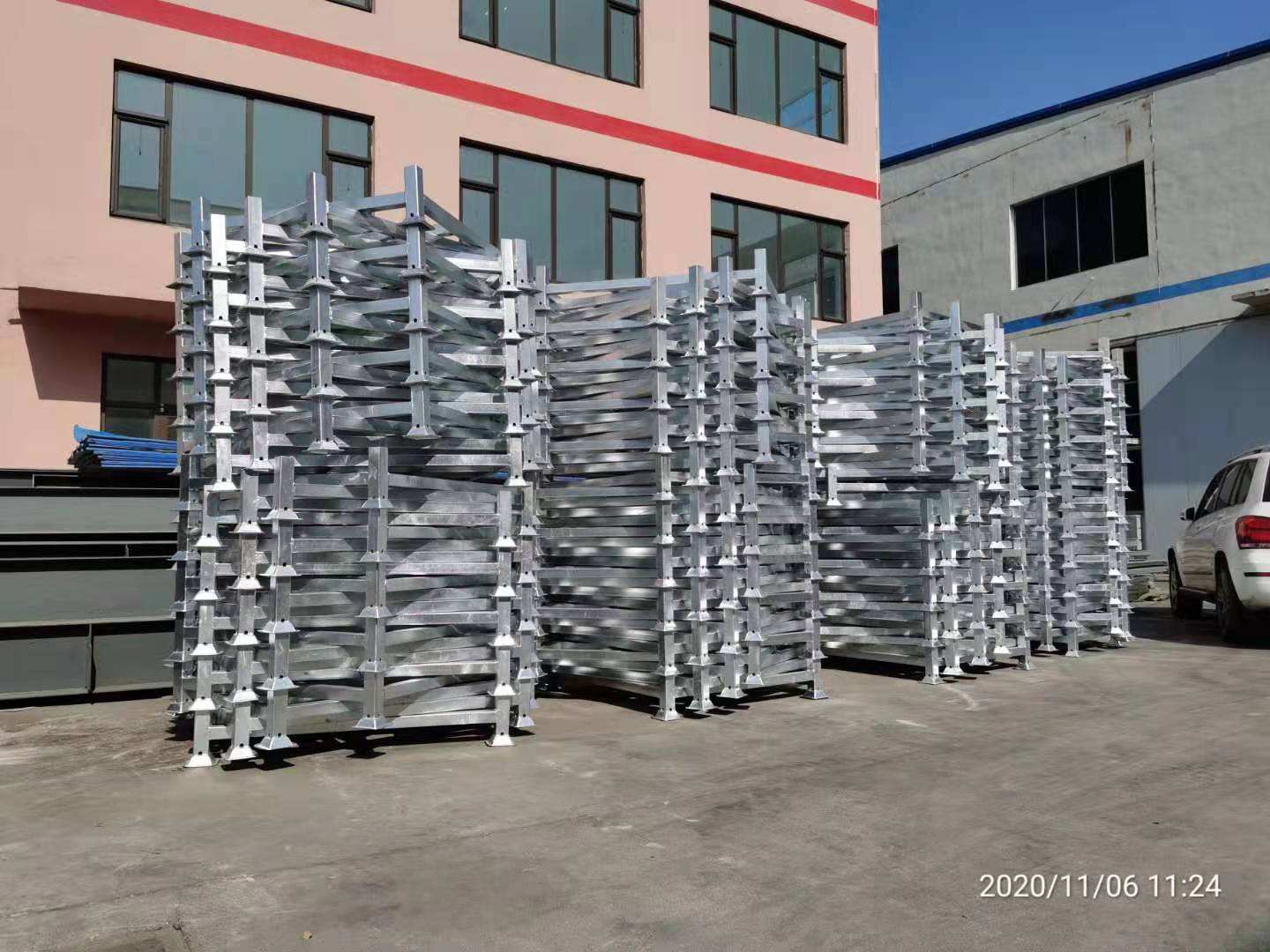

Heavy Duty Industrial galvanized Warehouse Vertical Stackable Metal Steel Storage Post Pallet Racks

Product Description Model No. Exterior Dimension Tire capacity Loading Capacity Max. Stacked Max. Stacked LxWxH pcs kg open closed CON-AO12 60x60x60 24 to 32 1100 kg 4 20 CON-AO13 72x72x72 42 to 63 1100 kg 4 20 CON-AO14 80x80x60 20 1100 kg 4 20 Mater

If you have any question or need drawings or solutions, Please leave us a message.

Now

Product Parameter

Product Description

Model No.	Exterior Dimension	Tire capacity	Loading Capacity	Max. Stacked	Max. Stacked

	LxWxH	pcs	kg	open	closed
CON-AO12	60"x60"x60"	24 to 32	1100 kg	4	20
CON-AO13	72"x72"x72"	42 to 63	1100 kg	4	20
CON-AO14	80"x80"x60"	20	1100 kg	4	20
Material	Mild steel Q235
Application area	Warehouse, logistics, tyre, auto industry
Finish	Powder coating
Remark	Customized or OEM support

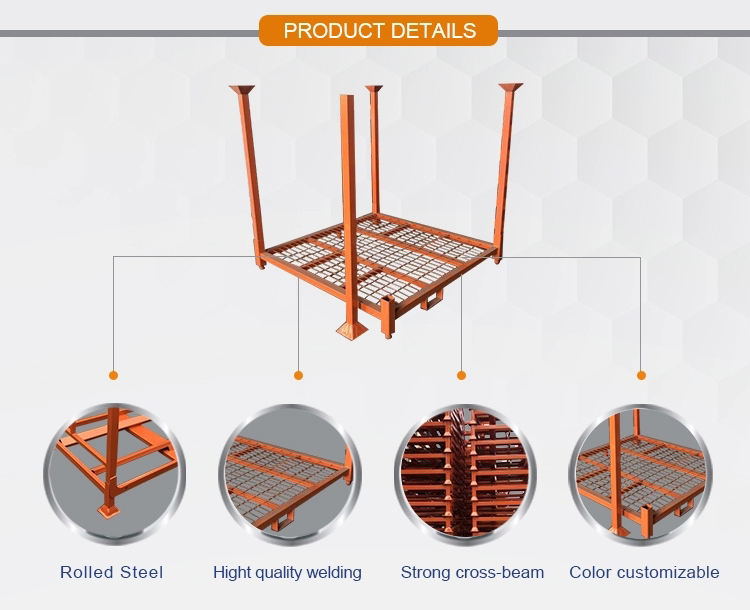

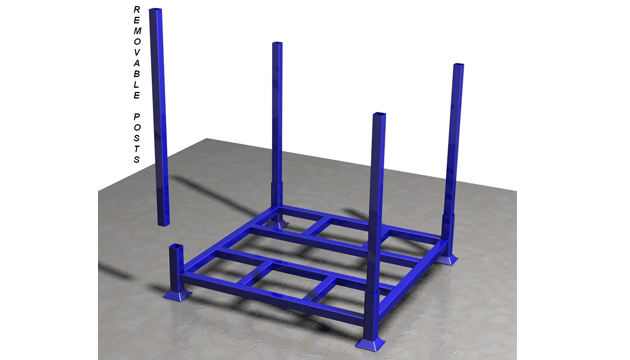

Product features	1. Portable modular racks --easy to stack and move around with the fork truck --rearrange floor space quickly and simply than pallet racking 2. Removable posts --reduce shipping costs, save space during slower periods --regain 80% storage space when folded 3.Optional bottom wire mesh & forklift guide
