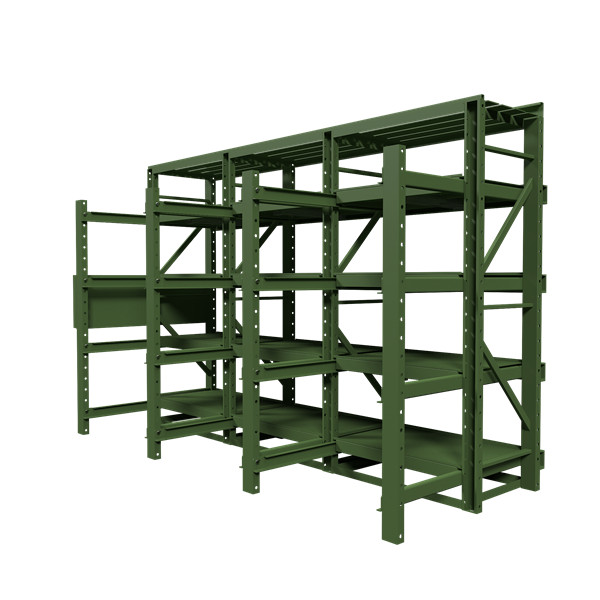

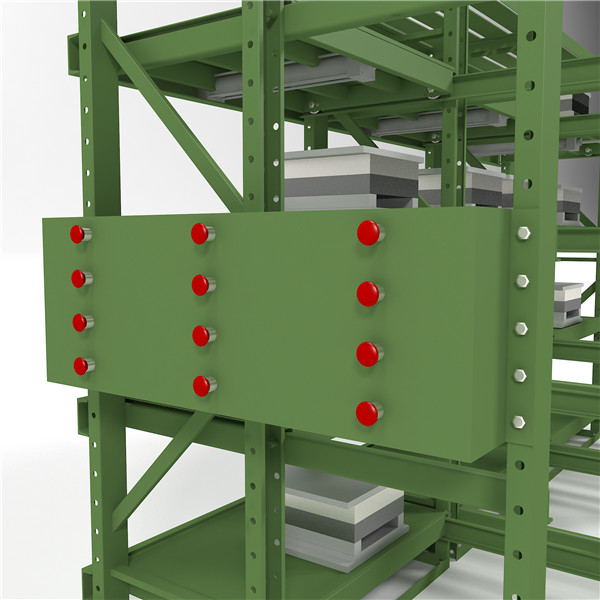

Die Roll Out Racks

This product is composed of column pumping plate slide way cylinder supporting controls and controller box etc.

If you have any question or need drawings or solutions, Please leave us a message.
Inquiry Die Roll Out Racks
Inside A Width W Height H Layers n Columns M Layer Loading Surface treatment
mm mm mm
900 600 2000 4 3 1 Powder Coating
Customized as required
Proudct Feature

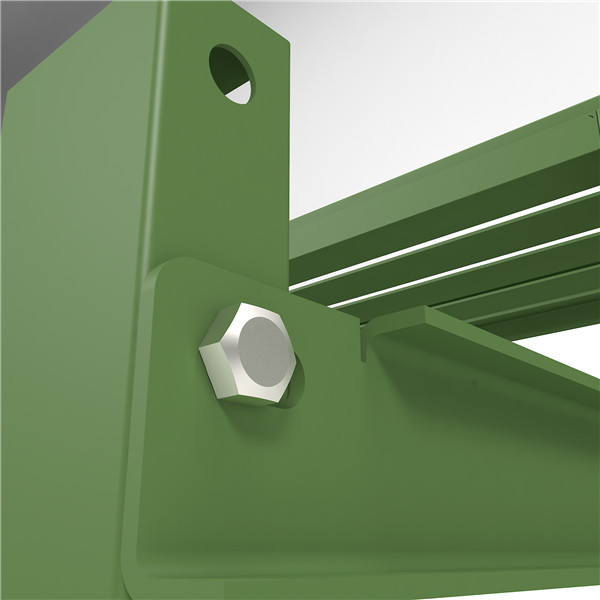

1.The whole product is hinged by bolts.
Die Roll Out Racks
Die Roll Out Racks

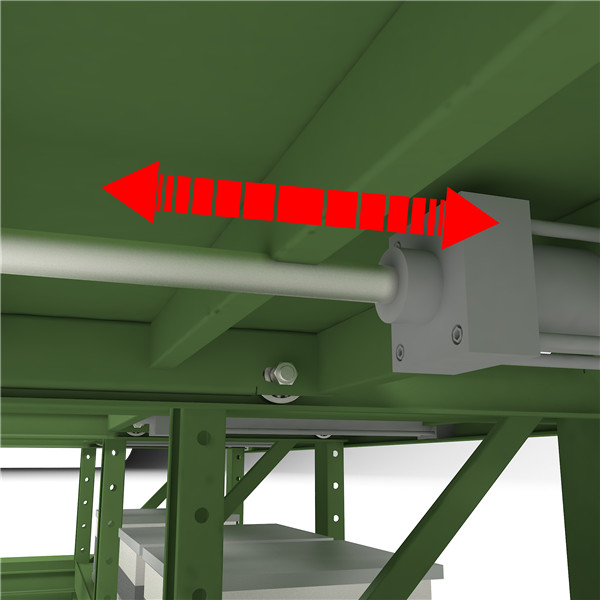

2.This product adopts pneumatic drive, and the running speed of the pumping plate can be adjusted;

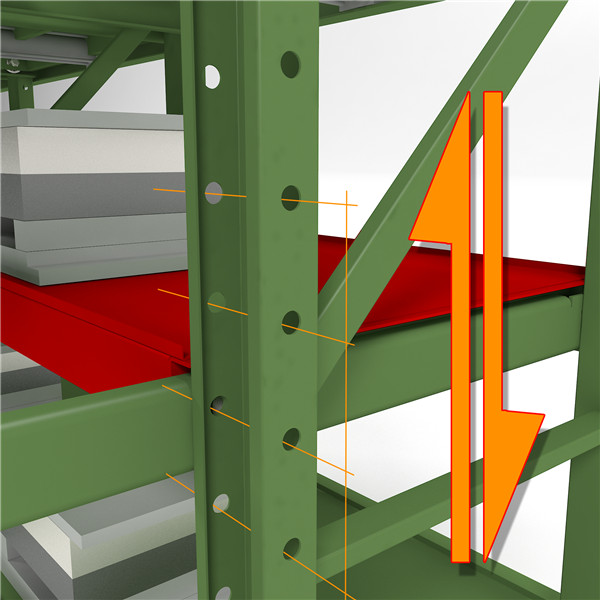

3.After the installation of the pumping plate of the product, the floor height can be adjusted up and down freely in the later stage;
Die Roll Out Racks
Die Roll Out Racks

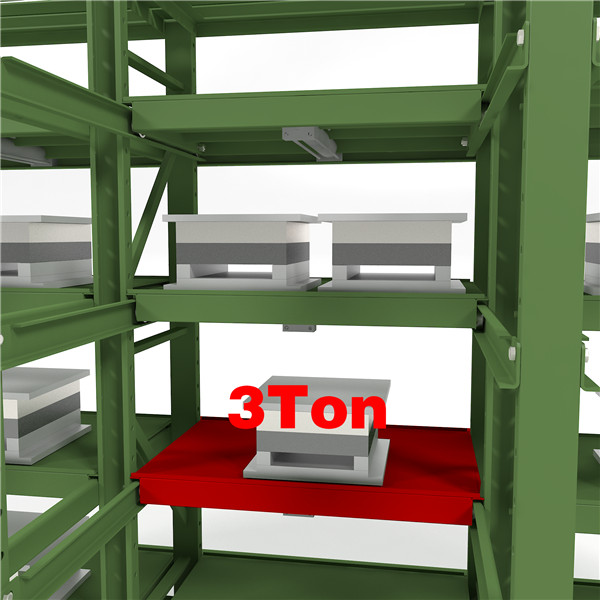

4.The bearing capacity of the product is strong, the single suction bearing capacity is up to 3T;
5.Each layer of the product is equipped with an independent control button, one-button operation is convenient and quick;
Die Roll Out Racks
Die Roll Out Racks

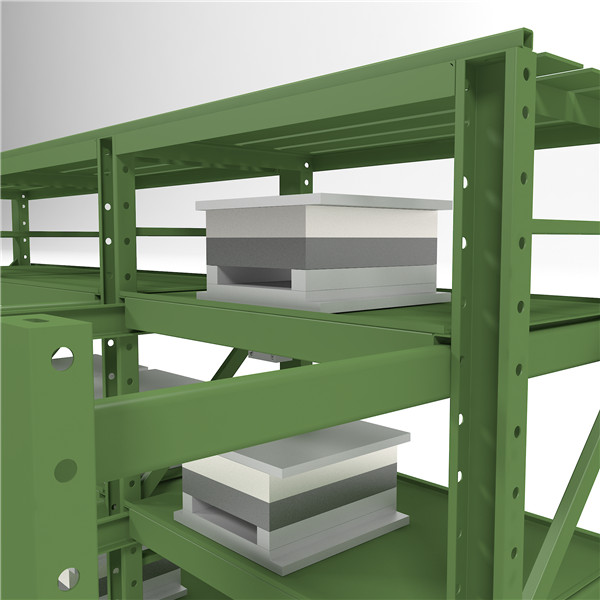

6. The extraction plate of this product can be completely pulled out, which is convenient for lifting, taking and placing of large molds;

Our Company
steelpallet
Production And Processing
steelpallet
Video production
Similar products

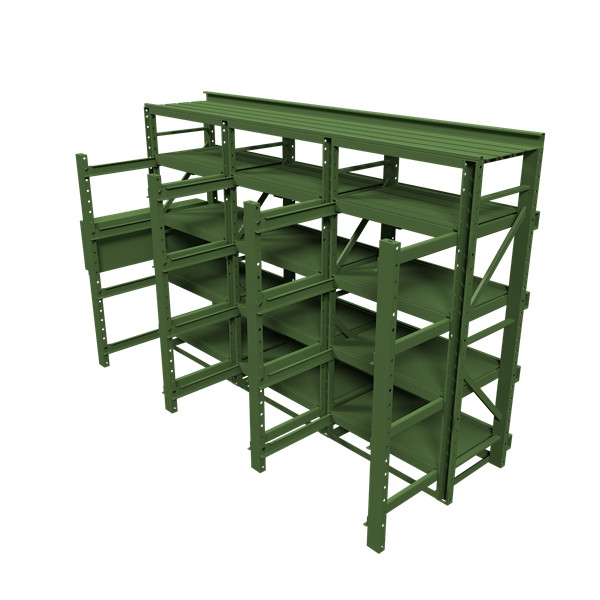

mold rack mold rack

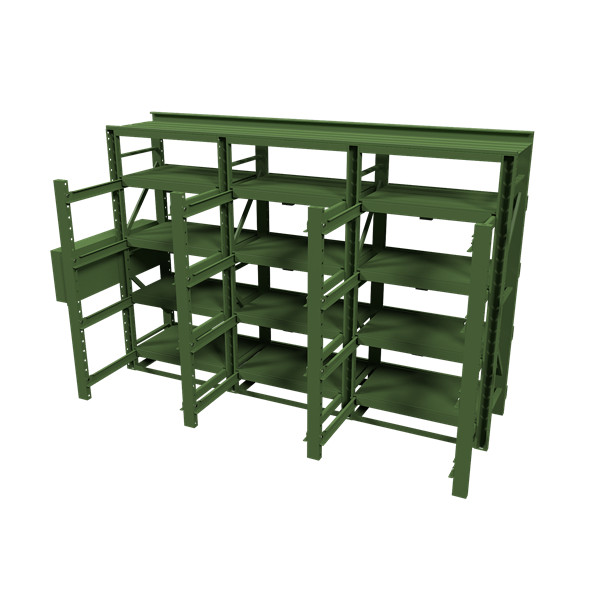

mould rack mould rack
