Product Description
Manual telescopic cantilever shelf is based on ordinary cantilever racking, for the cantilever is endowed with free telescopic function, in access to irregular or longer items (furniture, tubing lumber etc.), turn the winch, cantilever can be freely retracted, convenient for bridge crane operating.

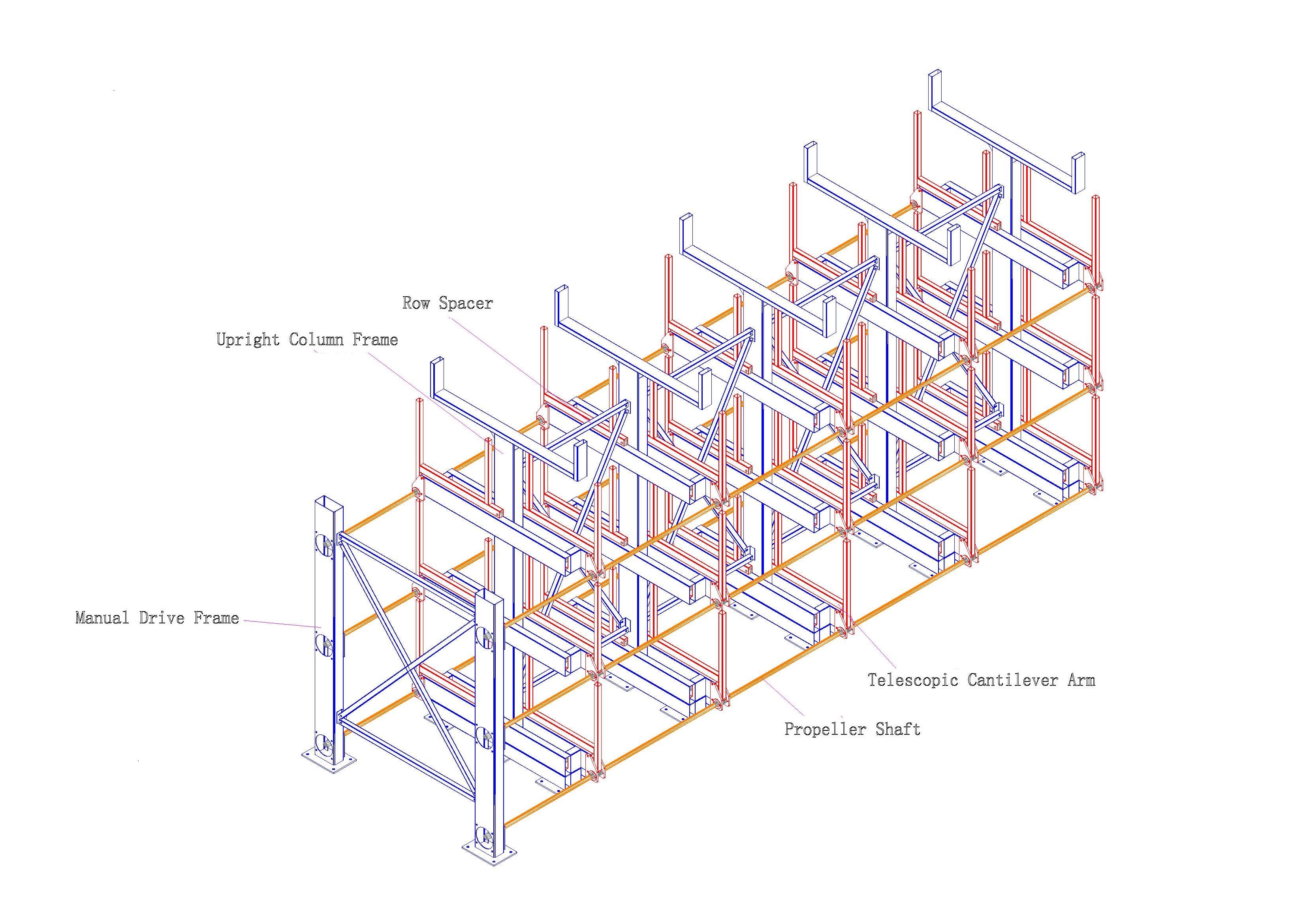

The upright column frame is fixed by square tubing welding, and the multiple upright column frames are combined by adjustable diagonal flats and connecting bar is designed to improve the whole stability.
We can customize it to the size of the goods and the size of the warehouse. We offer a wide range of column heights, arm lengths and base lengths to ensure the ideal solution for your warehouse.
Main parameter
Name
Manual Telescopic Cantilever Racking
Type
Telescopic Cantilever Racking
Material Condition
GB-T Q235, Q345, 45# High Class Carbon Steel Product
Weight Capacity
600-1000kgs/arm

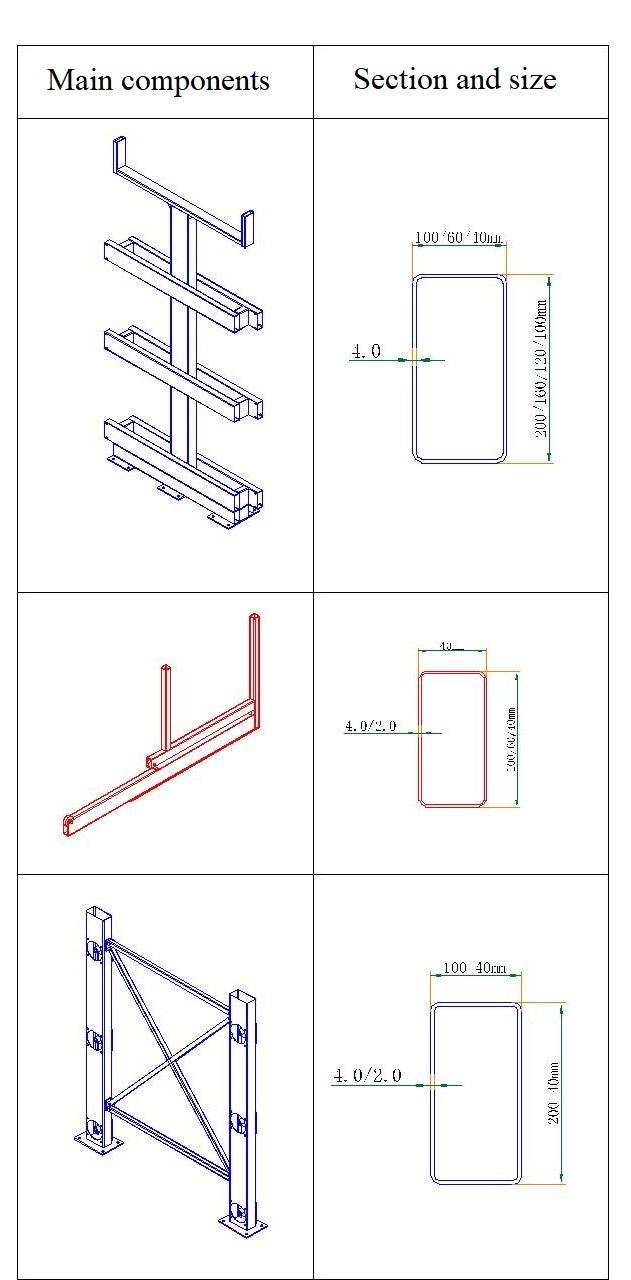

Upright Column Frame
Structural H Steel, Square Tubing
Base Length
1200mm-2200mm or Customized
Arm Length
500mm-1000mm or Customized
Length Deployed
500mm-1000mm or Customized
Layers
2-7 or Customized
Story Height
440-940mm or Customized
Active Height
250-800mm or Customized
Material Condition
GB-T Q235, Q345, 45# High Class Carbon Steel Product
Characteristics
Telescopic Cantilever Racking
Back-up Services
Installation Drawing/ On Site Instruction
Design Services
Available
Free Sample
Available (Delivery Cost on Buyer)
OEM
Available

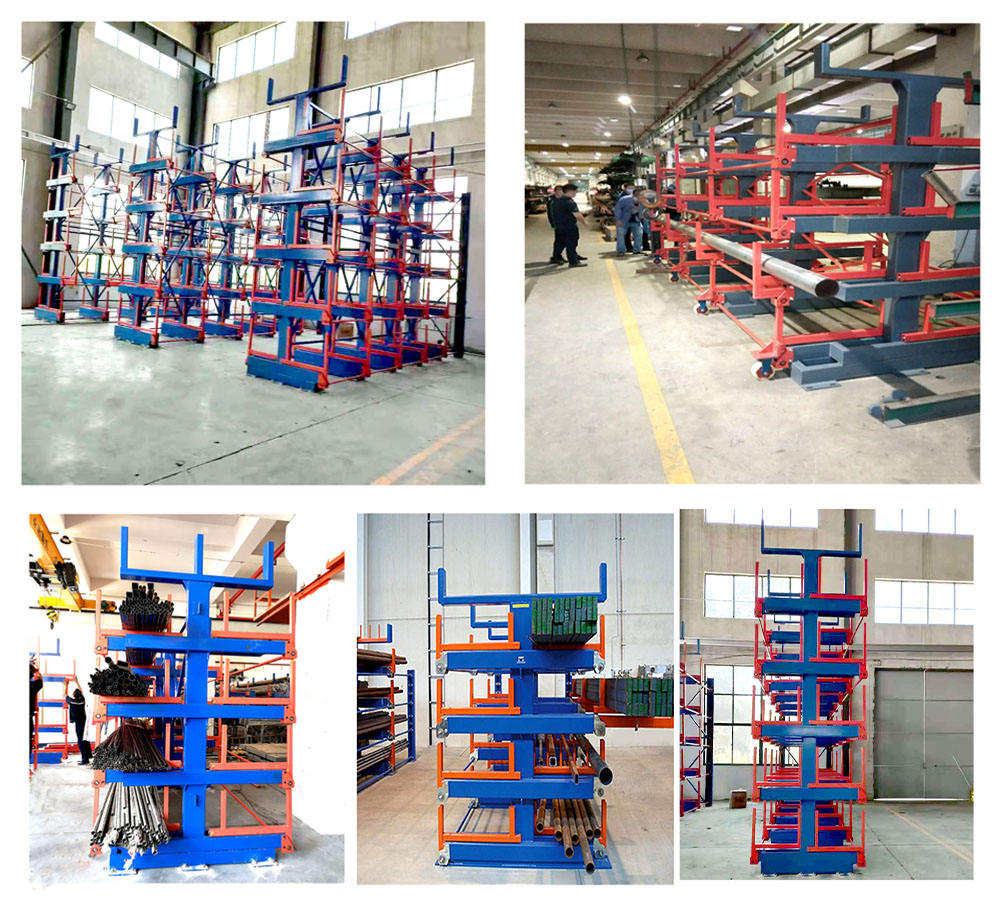

Designs
Features:
1. Exceeding 6.5m or more height is available.
2. Heavy loading, loading of single-arm can up to 1000kg.
3. Long and irregular material goods stored.
4. Except from the regular size, the longest arm can last to 3m.
5. The telescopic arm is ingenious, When extending the arms, it is easy access goods cooperate with bridge crane, and shrink the arms to save space after finished all operation.
