In a machine shop or fabrication environment, moving finished components is a high-risk task. A standard two tier cart on wheels seems like a simple solution, but it has a critical design flaw: the bottom shelf. Forcing heavy, precision-machined parts into this low, dark space is a direct cause of collisions, scratches, and costly damage. |
The standard 2 tier trolley on wheels doubles capacity on the same footprint. But watch an operator use one for an hour. To place a heavy box or a delicate SKU on the bottom shelf, they must crouch and push the item deep inside, navigating under the top shelf. This repeated awkward movement leads to strain. Worse, it’s slow. Operators are 'feeling' for space, increasing the risk of bumping and damaging goods.
In any industrial setting, "flimsy" is unacceptable. The primary concern with any extendable component is stability. A pull-out shelf that tips, wobbles, or binds under load is not a solution. The answer lies in a dual-component system that ensures stability *before* the load is placed.

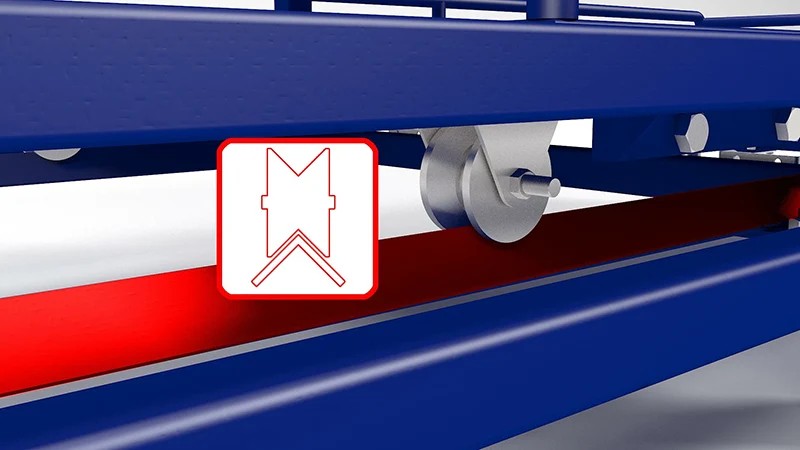

This is not a simple drawer slide. The system is built on an industrial guide track. The pull-out layer is fitted with V-groove wheels (V-wheels) that run along a dedicated angle steel rail. This engagement is critical: it locks the shelf into a precise path, eliminating the lateral wobble or "slop" seen in basic slides. This ensures a smooth, controlled motion every time.
The V-wheels guide the path, but the auxiliary casters bear the load. When the shelf is extended, two small casters at the *front* of the pull-out layer engage the floor. This instantly transfers the weight of the load directly to the ground. The shelf becomes its own independent, stable platform. This prevents the entire cart from tipping and removes all cantilever stress from the frame.
This design isn't just a feature; it's a process optimization. For a sheet metal shop or machining center, it means:
A: It directly prevents damage to valuable, heavy, or precision parts. The standard 2 tier trolley on wheels forces you to slide parts *under* the top shelf, causing collisions. The pull-out design gives you open, vertical access.
A: No. It is engineered with auxiliary front casters. When extended, the shelf's weight is supported by its own wheels on the floor, not by the cart frame. This makes it an independent, stable platform.
A: Each layer (top and bottom) is rated for 300 kg. The total safe working load for the entire cart is 600 kg.
A: This is an industrial guide track. The V-shaped wheel runs along a matching angle steel rail, which prevents the shelf from wobbling or moving side-to-side as it extends.
A: Yes. The frame is constructed from fully welded 30x30x1.5mm Q235 structural steel tubing and finished with a thick electrostatic powder coat for corrosion resistance.
