Front drop gate galvanized logistic storage collapsible wire mesh container cage
Choose Products:

Front drop gate galvanized logistic storage collapsible wire mesh container cage

Supermarket cargo transport security storage warehouse wheeling wire mesh collapsible cart roll container with wheels Four sided nesting A frame, with top lid. Its tight mesh design makes it also the perfect anti-theft unit Specifications of supermar

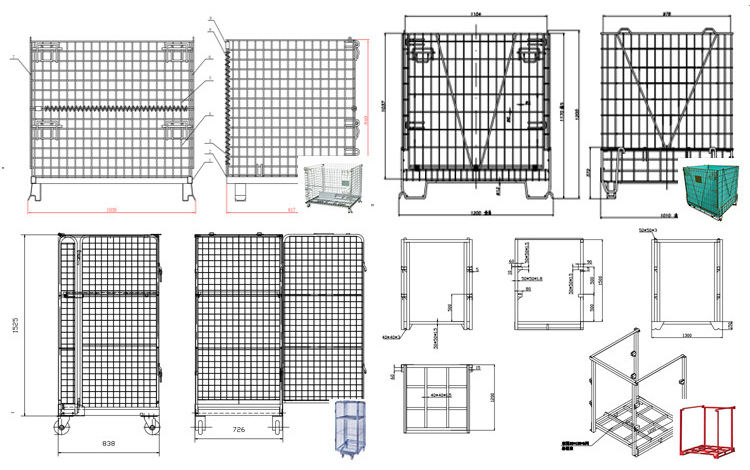

If you have any question or need drawings or solutions, Please leave us a message.
Product Parameter
Inquiry

Supermarket cargo transport security storage warehouse wheeling wire mesh collapsible cart roll container with wheels

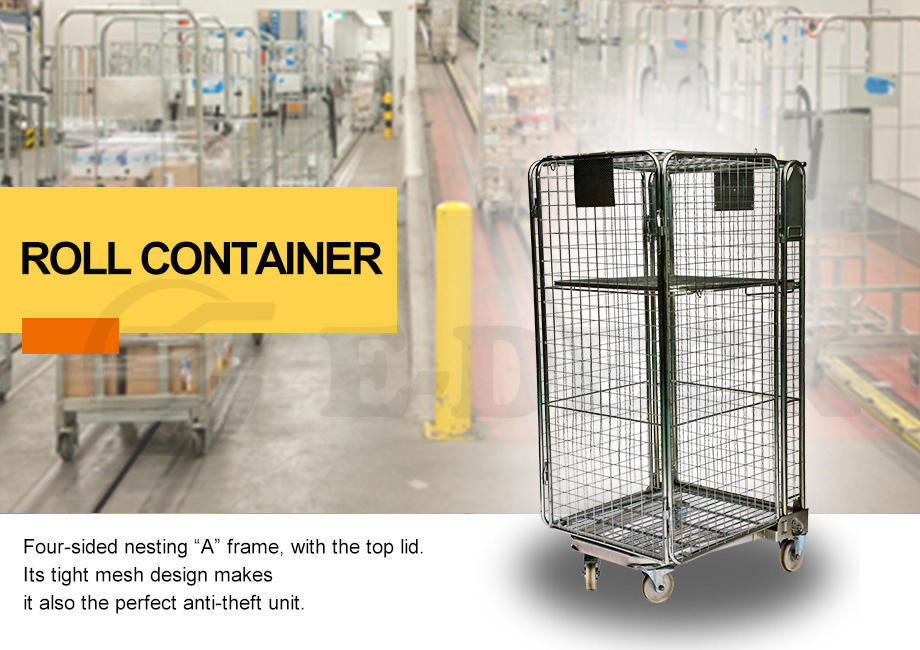

Four sided nesting “A” frame, with top lid. Its tight mesh design makes it also the perfect anti-theft unit

Supermarket cargo transport security storage warehouse wheeling wire mesh collapsible cart roll container with wheels

Specifications of supermarket cargo storage warehouse roll container

Model No.  Exterior Dimension

Tube

Diameter

Wire

Diameter

Loading

Capacity

Loaded in

1x40'HQ

  LxWxH(mm)  mm mm kg sets
EDRC07 720x810x1650 Φ20x2 Φ8&Φ 6 600 450
EDRC08 734x854x1680 Φ19x2 Φ10&Φ 6 600 320
EDRC09 734x854x1680 Φ19x2 Φ10&Φ 6 600 320
EDRC10 734x854x1680 Φ19x2 Φ3 600 320
Material Mild steel Q235

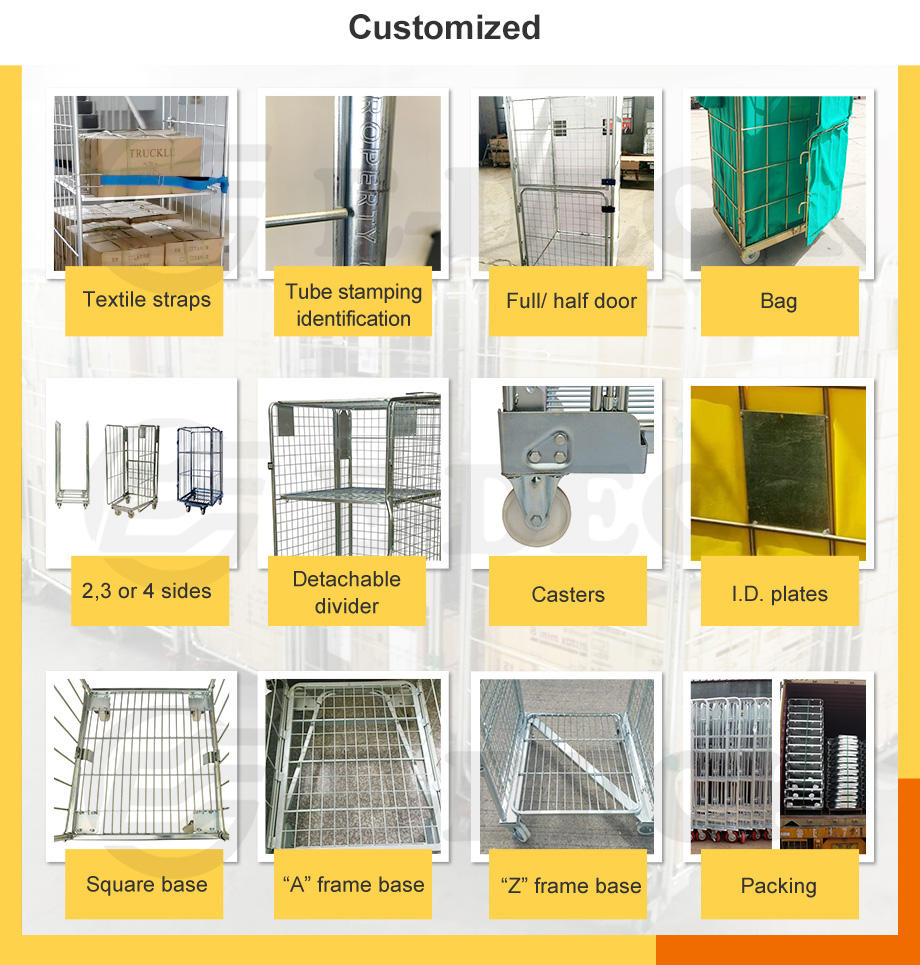

Available design

1. Optional extra gates, removable shelf(each with 60kg to 80kg loading capacity) and top lid

2. Optional base - square, "A","Z" type design

3. Possible to add name plates for identification

Application area Warehouse, logistic, supermarket, etc.
Finish Zinc/powder coating
Remark Costomized or OEM support

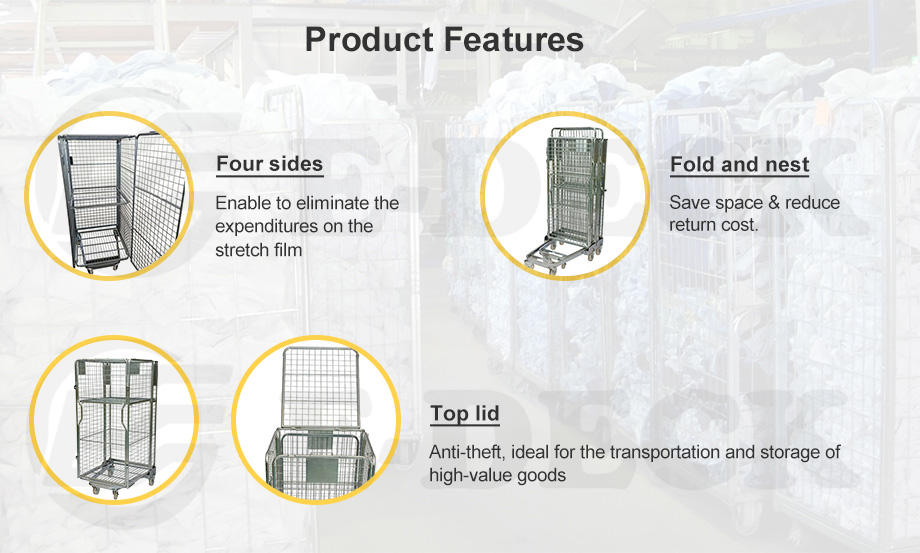

Product Features 1.Steel frame with wire mesh in-fill
2.2 fixed and 2 swivel castors with or without brakes
3. Castors material options include nylon, pp as well as rubber

Supermarket cargo transport security storage warehouse wheeling wire mesh collapsible cart roll container with wheelsSupermarket cargo transport security storage warehouse wheeling wire mesh collapsible cart roll container with wheels

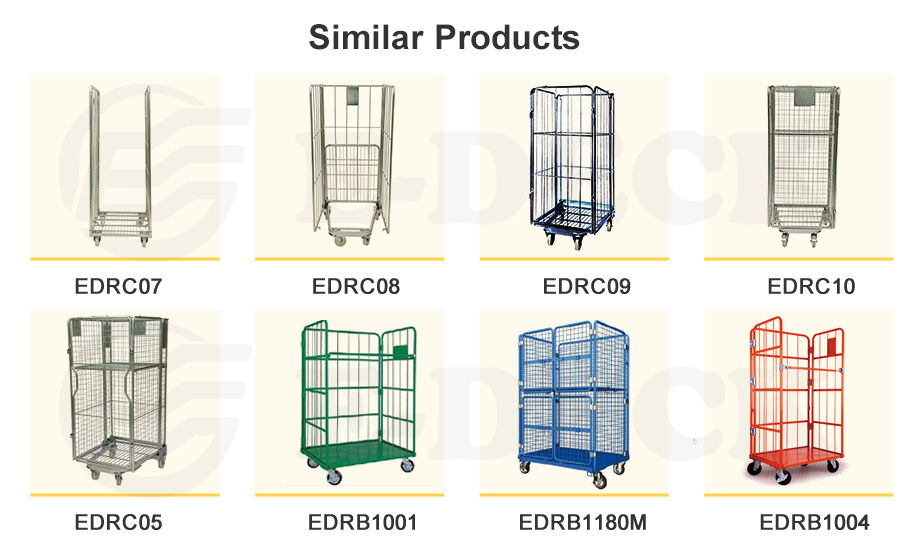

Related product design
(including storage cage, roll cage, nestainer)

Our Company
Production And Processing
Surface Treatment
Quality Products And Packing
Video production
If you have any question or need drawings or solutions, Please leave us a message, We'll offer quick quote.
