Engineering a Heavy-Duty, Collapsible Metal Motorcycle Pallet

Transporting and storing bulky, heavy goods like motorcycles poses a dual challenge for logistics equipment: it must be exceptionally robust when in use to ensure safety, and it must fold efficiently when empty to save on valuable return transport costs. This case study details how we successfully engineered and manufactured a heavy-duty collapsible rack with a 2-ton load capacity, based on precise drawings provided by a client.

The Challenge: Replicating a Proven, High-Performance Folding Rack

A leading North American motorcycle distributor required a collapsible metal motorcycle pallet for storage and transport and provided a highly detailed design drawing. Their core needs were clear and specific:

• Precise Replication: The function, dimensions, and folding mechanism of the new rack had to strictly adhere to their existing and proven design.
• Heavy-Duty Load Capacity: Each rack needed to meet a 2-ton load requirement and be safely stackable when fully loaded.
• Space Efficiency: The folding mechanism was key; it had to collapse the rack to a minimal height when empty to optimize return logistics and warehouse storage efficiency.
• Compatibility: The new racks had to be stack-compatible with the client's existing older-model stillages.

Our Engineered Solution: Precision Manufacturing for Strength and Efficiency

Our engineering team accepted the challenge, translating the client's drawings into a robust, reliable, and efficient physical product.

1. A Robust Frame for Heavy Loads

To meet the 2-ton load requirement, we employed heavy-duty materials and a reinforced design.

• Large-Scale Design: The rack's external dimensions of 2300×2470×1270mm provide ample space for storing large items like motorcycles.
• Sturdy Materials: The main structural components, such as the base frame and posts, are made from thick-walled rectangular tubes (e.g., 60x3mm) to ensure high strength and stability under a 2-ton load. The entire rack's self-weight of 300 kg is a direct indicator of its robustness.

2. The Smart Folding Mechanism

We perfectly replicated the "lift and fold inward" mechanism from the drawings.

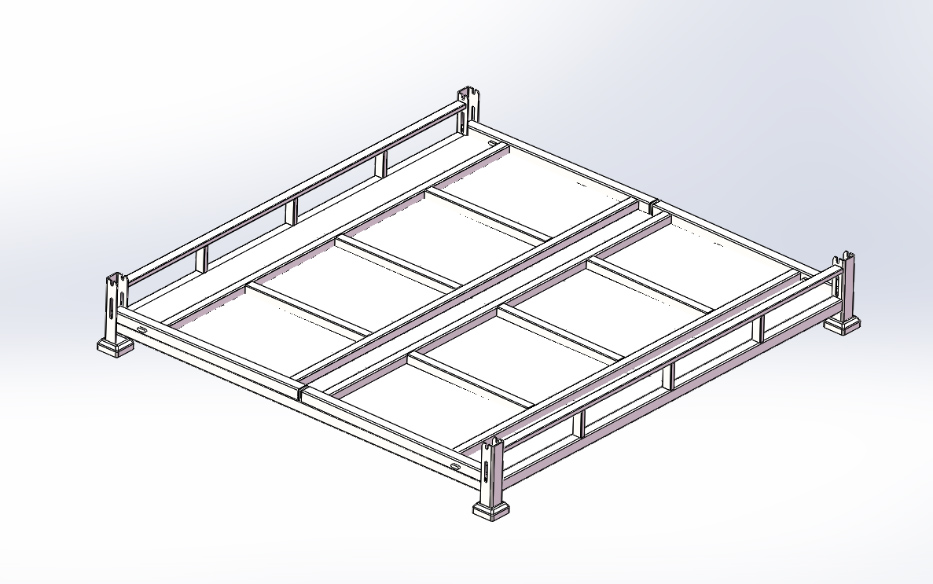

• How it Works: Operators can lift the 1270mm high side frames slightly to disengage them from locating pins, then fold them inward to lay flat on the base.
• Efficient Space Savings: This design allows the rack's folded height to be just 355mm, achieving a very high compression ratio.

3. High-Density Empty Stacking and Transport

The greatest benefit of the collapsible design is realized in logistics efficiency.

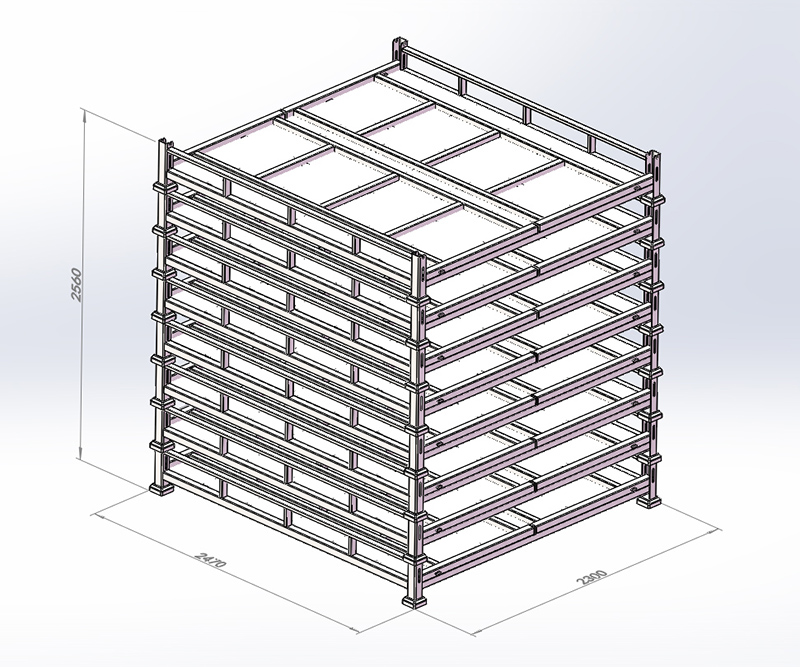

• Compact Storage: Eight folded empty racks can be safely stacked together, with a total height of only 2560mm.
• Optimized Transport: A single 40-foot high-cube container can accommodate 32 sets of folded racks, drastically reducing the per-unit cost of return transportation.

Conclusion: Turning Precise Drawings into Reliable Reality

This case study demonstrates our strong engineering-to-manufacturing capabilities. We are not only adept at designing from scratch but are equally skilled at manufacturing high-quality logistics equipment that meets stringent performance requirements. Through precision manufacturing, we delivered a collapsible metal motorcycle pallet solution that is robust in operation and highly efficient in its logistics cycle.
