Multi-purpose Upright and Flat Bed Trolley

The Mahandcart is mainly made up of body platform trolley bottom plate main wheel auxiliary wheel and handrail.

If you have any question or need drawings or solutions, Please leave us a message.

Now

Multi-purpose Upright and Flat Bed Trolley

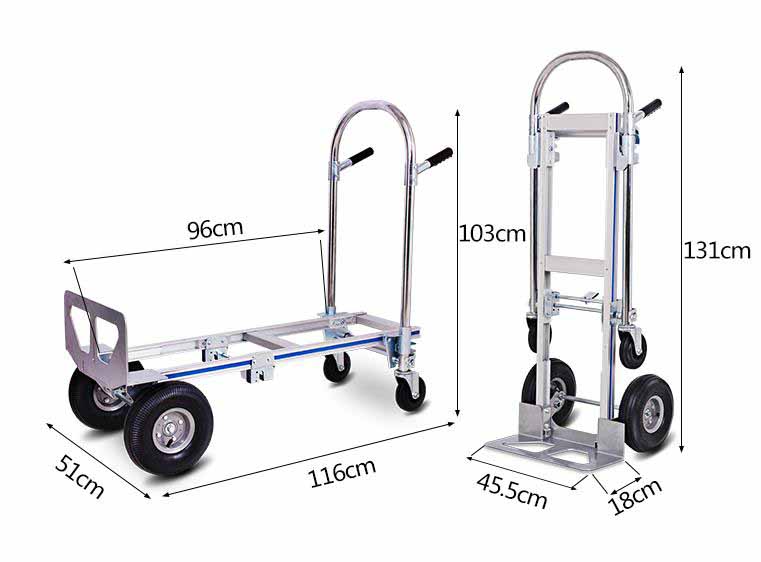

Product size	510×1160×1310mm
load	250kg (2 wheels) 350kg（4 wheels）
The net weight	About 12kg
The chassis size	450×180mm
Maximum thickness of bottom plate	7mm
The wheel diameter	Main wheel 250mm Secondary wheel 125mm

Proudct Feature

1. Mahandcart is mainly used for logistics warehouse, supermarket and goods turnover in the station. More adaptable than ordinary handcart . Standard size. Small amount can be sent;

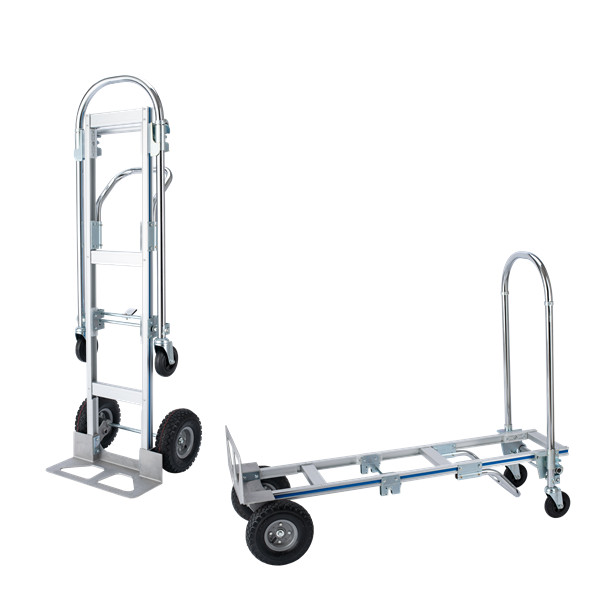

2. Quickly convert form a 2-wheels upright to a 4-wheel platform truck with a single step on the foot pedal.

3.With the installation drawings，it can be easily installed independently.

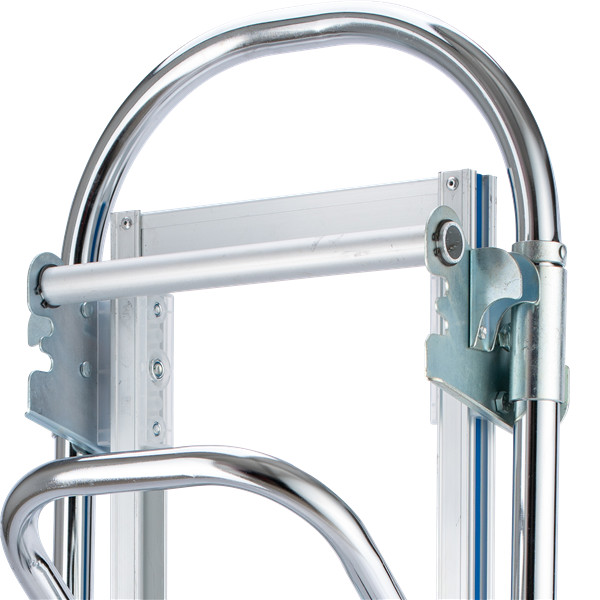

4.Aluminum alloy body and chrome plated handrail, beautiful and practical.

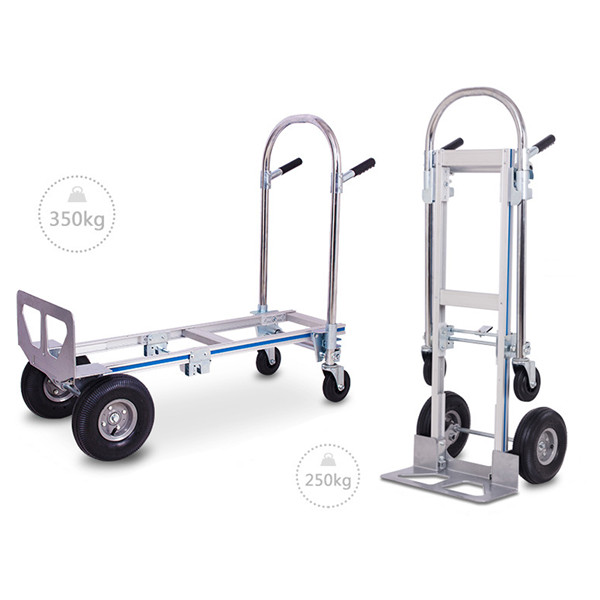

5.Super load-bearing, 250kg in two-wheel configuration, 350kg in four-wheel configuration.

6.Surface is treated with grit blasting to increase friction.

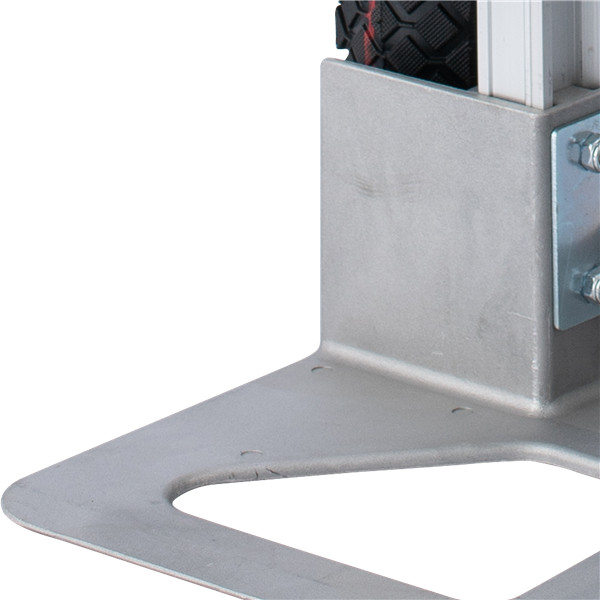

7.The bottom plate is a thickened aluminum alloy sheet stamping molding, without any welding components, plate thickness up to 7mm, and added silicon element, which has greater hardness and reliable bearing.
