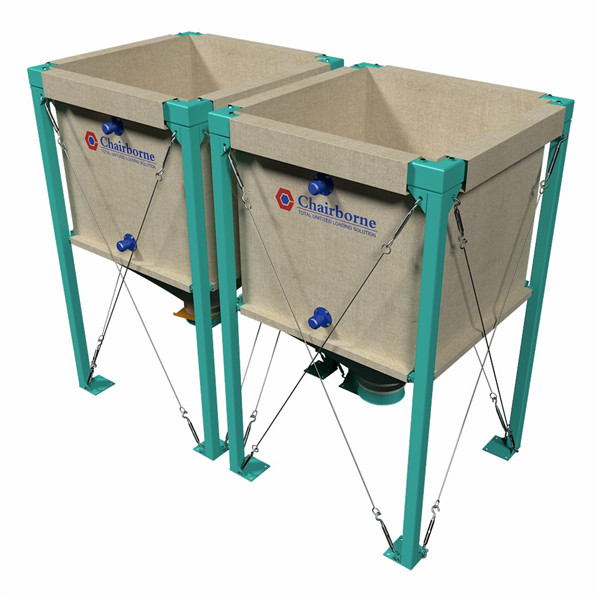

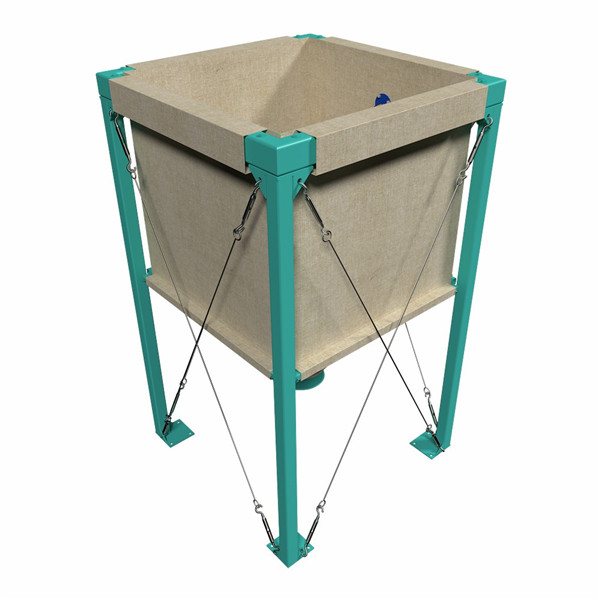

Flexible silo systems

The flexible silo system offers cost-effective storage and optimum space utilisation. Grain silos are the perfect solution for maintaining the freshness and nutritional value of sensitive natural products.

If you have any question or need drawings or solutions, Please leave us a message.

Now

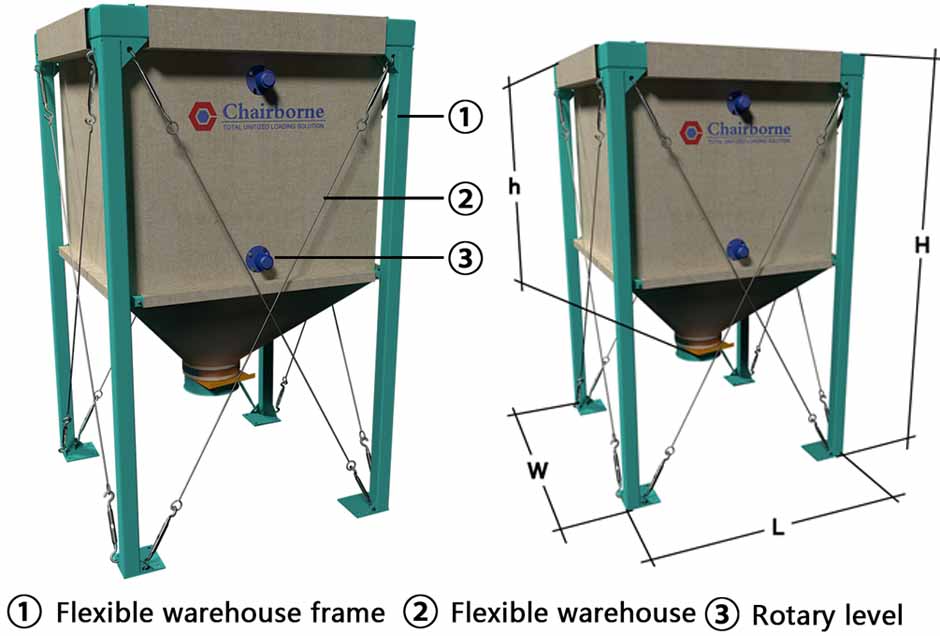

Code	mm Dimensions					Weight	Material		Volume (m³)	Capacity (t)	Surface
	L	W	H	D	h	KG	Frame	silo
050003600	1830	1830	3140	400	2340	570	Q235	PP	5	3	BLUE powder coating
050003601	2570	2570	3140	400	2340	820	Q235	PP	10	6	BLUE powder coating
050003602	2630	2630	4100	400	3700	1100	Q235	PP	15	9	BLUE powder coating

Proudct Feature

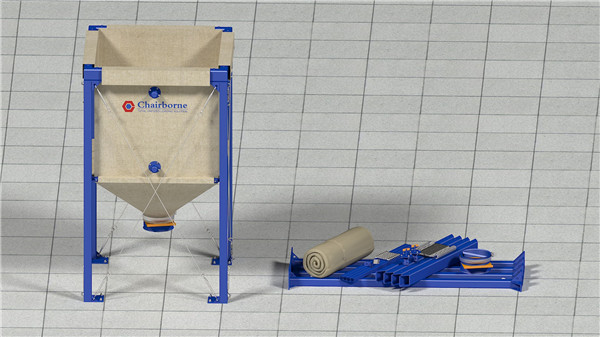

1.This product is a combination structure, which can be disassembled, which is convenient for storage and transportation;

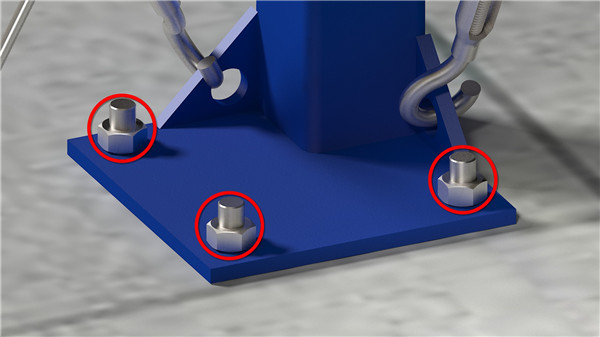

2.The bottom of the column of this product is welded with a steel plate with holes, fixed with anchor bolts, the bottom is more stable;

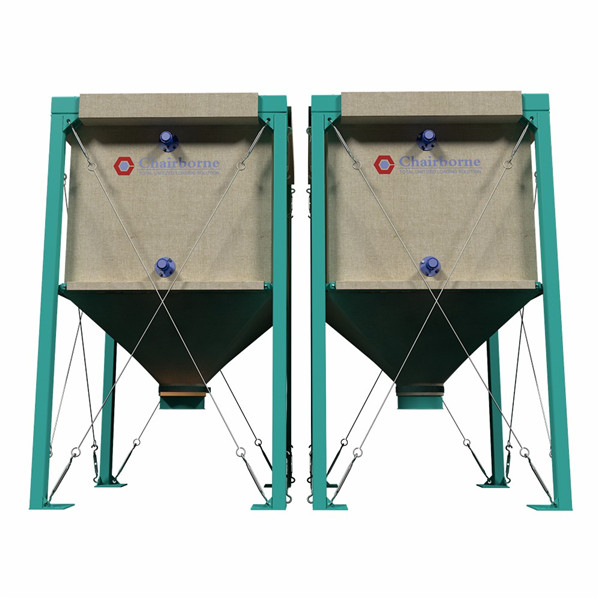

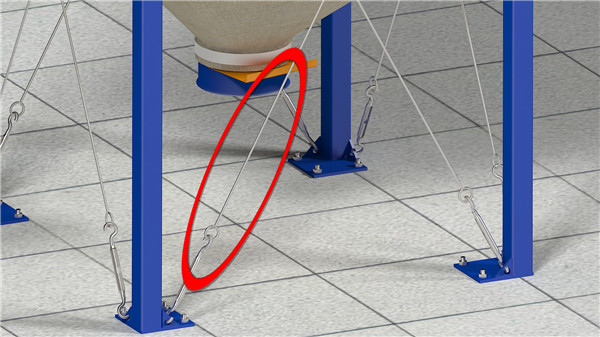

3.There are diagonal steel wires around the product, the overall stability is greatly improved;

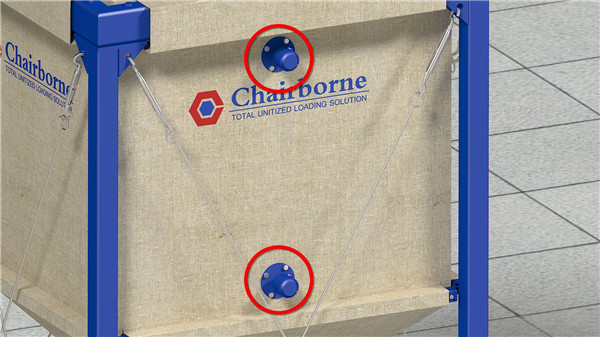

4.This product is equipped with a material level device, which can easily clarify the grain storage in the warehouse;

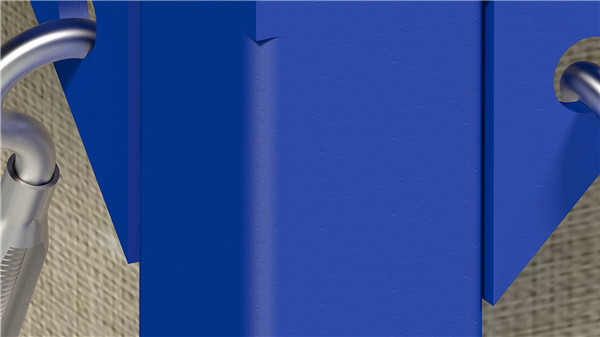

5.The surface treatment of this product adopts electrostatic spraying process, the coating is uniform and wear-resistant, and the anti-corrosion effect is good;

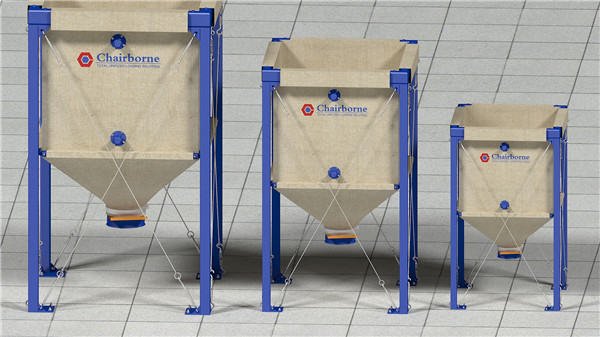

6.The product specifications can be customized as customer needs and site conditions;

7.This product is suitable for the storage of cereal crops;

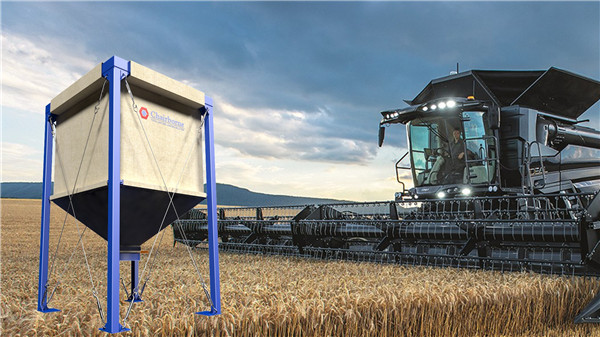

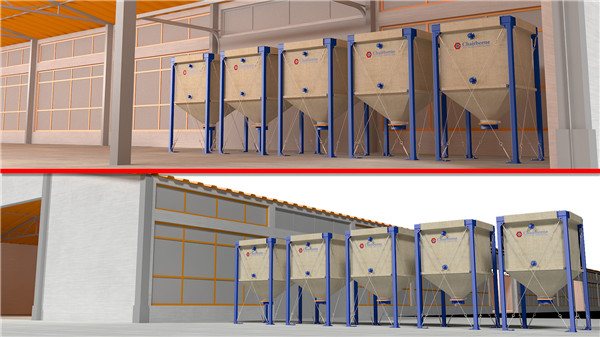

8.This product can be used indoors and outdoors;

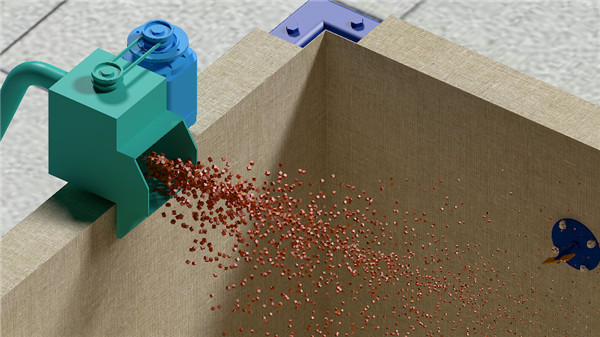

9.This product needs to cooperate with the grain suction machine；
