Wire Mesh Container

Our main products: wire mesh pallet and metal stillages and wire containers

If you have any question or need drawings or solutions, Please leave us a message.
Inquiry Wire Mesh Container

Exterior Dimensions:

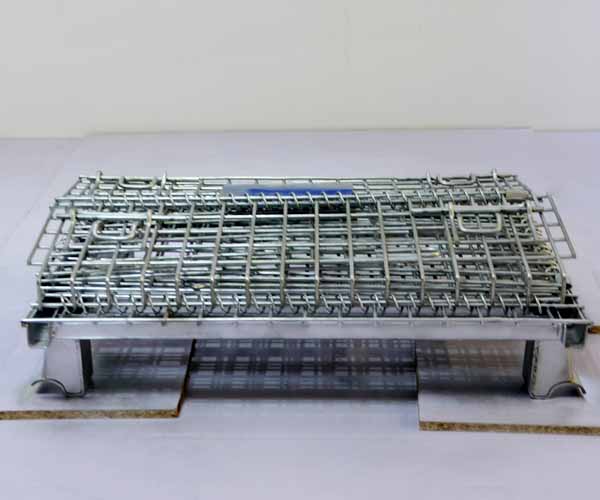

Folded Size:

Interior Dimensions:

Wire Mesh Size:

Safe Working Load:

Weight:

Loading Quantity

Surface treatment
800 x 600 x 640 mm
31.5 x 23.62 x 25.2 inches
800 x 600 x 160 mm
31.5 x 23.62 x 6.29 inches
760 x 560 x 500 mm
29.92 x 22.04 x 19.68 inches
50×50 mm
1.96×1.96 inches

800kg

28kg

800 PCS / 40'HC

Cold galvanizing
1000 x 800 x 850 mm
39.37 x 31.5 x 33.46 inches
1000 x 800 x 160 mm
39.37 x 31.5 x 6.29 inches
960 x 760 x 710 mm
37.83 x 29.92 x 27.95 inches
50×50 mm
1.96×1.96 inches
1000kg 43.5kg

500 PCS / 40'HC

Cold galvanizing
1000 x 800 x 850 mm
39.37 x 31.5 x 33.46 inches
1000 x 800 x 160 mm
39.37 x 31.5 x 6.29 inches
960 x 760 x 710 mm
37.83 x 29.92 x 27.95 inches
50×100 mm
1.96×3.93 inches
800kg 40kg

500 PCS / 40'HC

Cold galvanizing
1200 x 1000 x 900 mm
47.24 x 39.37 x 35.43 inches
1200 x 1000 x 160 mm
47.24 x 39.37 x 6.29 inches
1160 x 960 x 760 mm
45.66 x 37.79 x 29.92 inches
50×50 mm
1.96×1.96 inches
1200kg 59kg 320 PCS / 40'HC Cold galvanizing
Customized as required
Proudct Feature

Wire Mesh Container

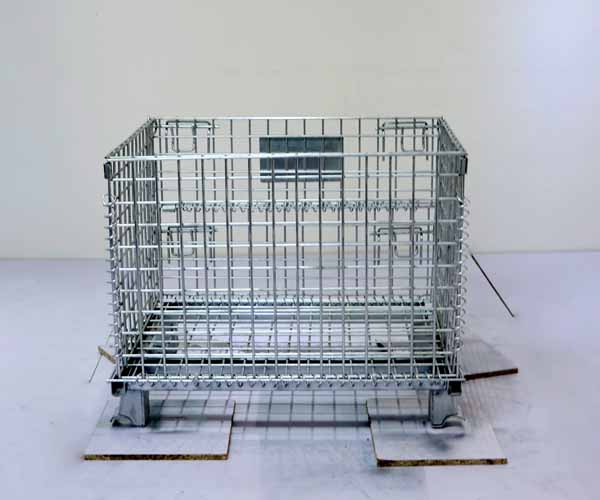

What is a Wire Mesh Container

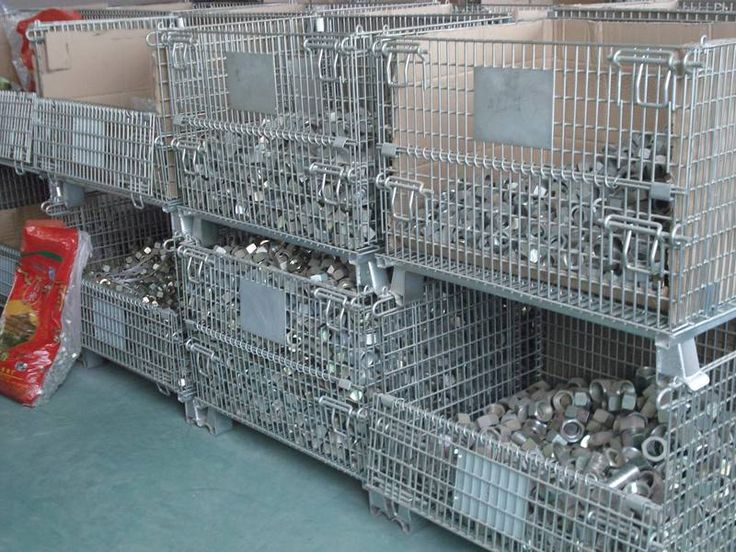

Wire Mesh Container are used in factories and warehouses to organise and store goods.

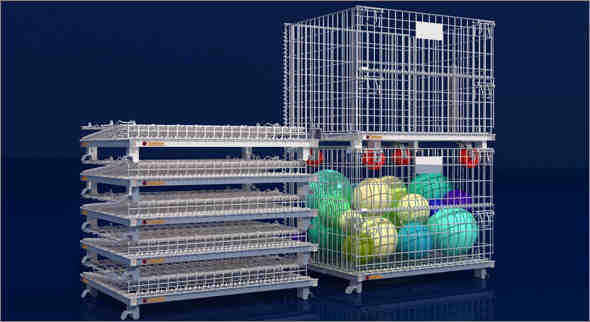

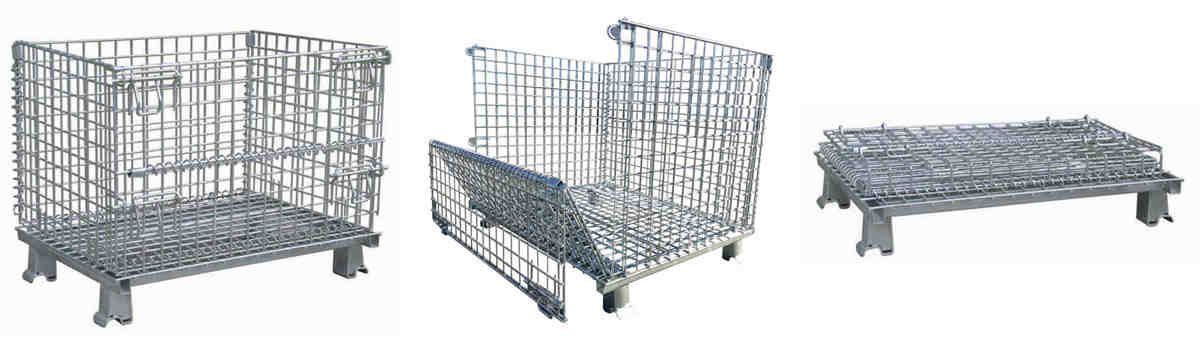

They can be stacked to make the most of vertical space and to store more goods. When not in use, the side panels can be folded down to create a compact stack.

Due to its mesh construction, it is lightweight compared to its load-bearing capacity. The surface is generally painted or plated to make it rustproof and highly durable. A long-lasting storage solution.

Wire Mesh Container

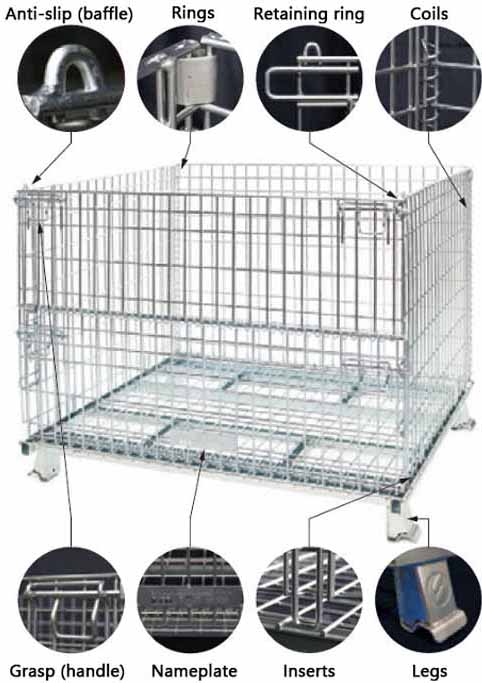

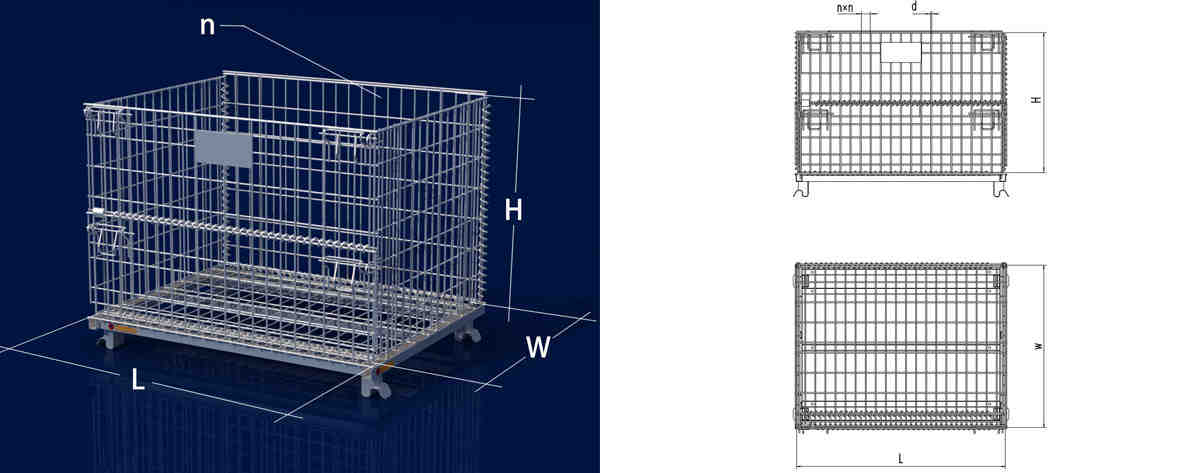

Names of the parts of the Wire Mesh Container
Wire Mesh Container

In addition to Wire Mesh Container, they are also sometimes called mesh boxes, box pallets.

Names of the parts of mesh pallets (mesh boxes)

(1) Mesh pitch: The spacing between the steel pieces. 50 x 50mm means that the steel pieces are arranged in a grid at intervals of 50mm, while 50 x 100mm is also available. These are usually cheaper than those with a narrower mesh pitch because of the wider spacing and the smaller amount of steel used. However, the load capacity is reduced.

(2) Wire diameter: The diameter of the steel. If the wire diameter is 6.0mm, the diameter of the steel latticed together is 6mm. The larger the wire diameter, the higher the load capacity, but also the weight of the product. The most common diameter is around 6 mm.

(3) Door: The front of the mesh pallet. The doors can be folded even when the pallets are stacked on top of each other. Depending on the size of the goods to be stored, it may be possible to remove the contents of the pallets while they are stacked. In rare cases, the doors do not open.

(4) Legs: The legs of the mesh pallets. Some pallets have grooves on the bottom of the legs. This prevents the mesh pallets from shifting when they are stacked on top of each other. Even if the bottom of the pallets has grooves, they may not be able to be stacked due to the loading capacity.

Features of the Wire Mesh Container
1.It is suitable for the tridimensional storage of scattered materials.
Wire Mesh Container
Wire Mesh Container
2.This product is fully galvanized and has good corrosion ability.

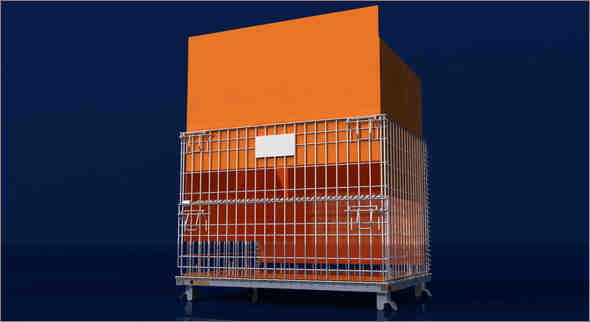

3.Polypropylene hollow sheet (PP plate sheet) can be added to prevent losting.
Wire Mesh Container
Wire Mesh Container

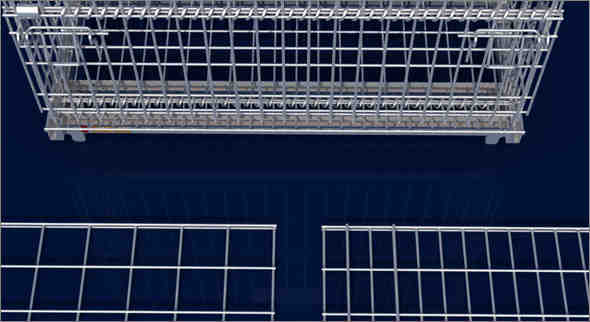

4.The size of mesh can be adjusted according to the actual materials to prevent losting.

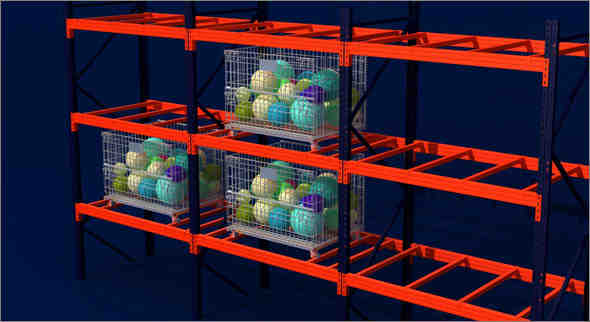

5.This product can use with rack.
Wire Mesh Container
Wire Mesh Container
6.Flexible door design, easy access to goods even while stacking.
7.Vertical interlayer can be added to the stillage according to the actual use.
Wire Mesh Container
Wire Mesh Container
8.This product can be equipped with one-side open or two-side open top cover according to the actual use.

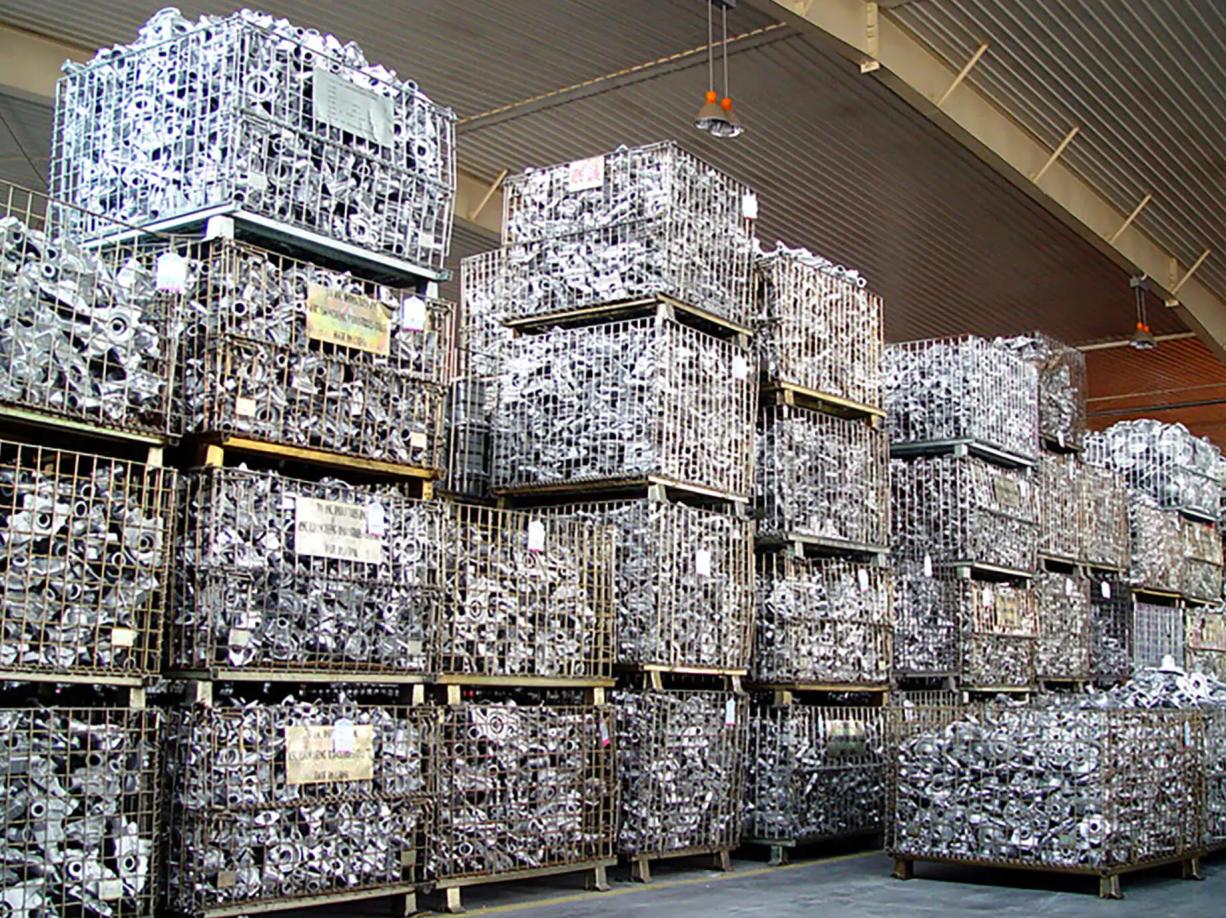

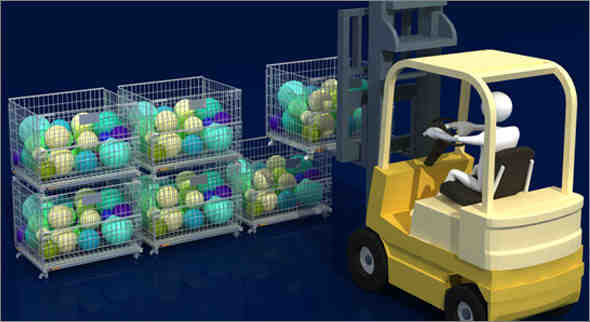

9.Using folklift to stack the racks, increasing utility rate of space.
Wire Mesh Container
Wire Mesh Container

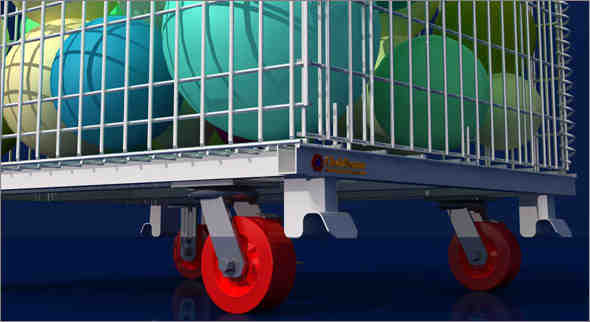

10.Trundle can be added to the base to facilitate the transfer of goods.
11.Retractor can be added to the base to realize centralized safety turnover of several racks.
Wire Mesh Container
Wire Mesh Container
12.Stacking can come true whether at full or empty loading condition . It's convenient for storage and transportation.
