Your floor space is costing you money. Traditional A-frames dominate your warehouse footprint, while wooden crates create disposal nightmares and safety hazards for your glazing teams. You need a solution that secures high-value IGUs and tempered glass during transport, yet vanishes when empty. Maximize your truck density and reclaim your shop floor. |
The Logistics Paradox: Protection vs. Space
In the glass fabrication and distribution industry, specifically for wholesalers dealing with wholesale tempered glass e Insulated Glass Units (IGUs), the biggest profit killer isn’t always the material cost—it’s the logistics of air.
Sending glass to a job site or a window manufacturer is straightforward. Getting the racks back is where the margin bleeds. Standard A-frames are rigid; they take up the same space empty as they do full. Our L-Shape Glass Holding Rack (Grack) changes this equation through smart geometry.
Empty racks nesting efficiently to minimize return freight costs.
Nesting: The Logic of “Returnable” Logistics
The “L” design isn’t just for stability; it’s for Nesting. Unlike A-frames that clutter your receiving dock, our L-racks are designed to stack like shopping carts.
- Volume Reduction: When empty, 7 nested racks occupy the space of roughly 2-3 standard racks.
- Freight Savings: If you are shipping return loads, you are no longer paying to ship “air.” This transforms them into true scaffalature di spedizione riutilizzabili.
- Container Optimization: For large-scale procurement, we can fit up to 98 units in a single 40HQ container using our tumble-stack method.
Top view showing the precise geometry allowing for deep nesting.
Eliminating “Metal-on-Glass” Contact
We know the sound of a “shell” or a “run” starting from a chipped edge. It’s the sound of lost profit. Generic racks often use glue to attach rubber pads. In a hot warehouse in California or Texas, that glue fails, the rubber slides, and your high-value Low-E glass touches raw steel.
Our solution is the Steel-Core Rubber Profile.
| Caratteristica | Benefit for Glass Fabricators |
|---|---|
| Mechanically Fixed | Screwed in with self-tapping screws. The rubber never falls off, even under the weight of 3,000 lbs of glass. |
| Steel Core Insert | Prevents the sharp glass edge from slicing through the rubber and contacting the rack frame. |
| EPDM Material | Resistant to ozone and UV. No marking or staining on delicate soft-coat Low-E layers. |
Close-up of glass edges resting securely on steel-core rubber profiles.
Engineered for the 3-Ton Reality
Whether you are handling Jumbo size sheets or bundles of heavy laminated glass, structural rigidity is non-negotiable. A flexing rack causes stress points on the glass, leading to spontaneous breakage during transport.
I nostri Heavy Duty Glass Rack is built from Q235 (ASTM A36 equivalent) structural steel. We use Full Seam Welding throughout—no spot welds.
- Base Structure: 100x50mm rectangular tubing prevents twisting under fork loads.
- Weight Capacity: Rated for 3,300 lbs to 8,800 lbs (1.5 – 4 Tons) depending on configuration.
- Tilt Angle: A precise 85-87° angle keeps glass naturally leaning against the backboard, reducing the reliance on straps for stability.

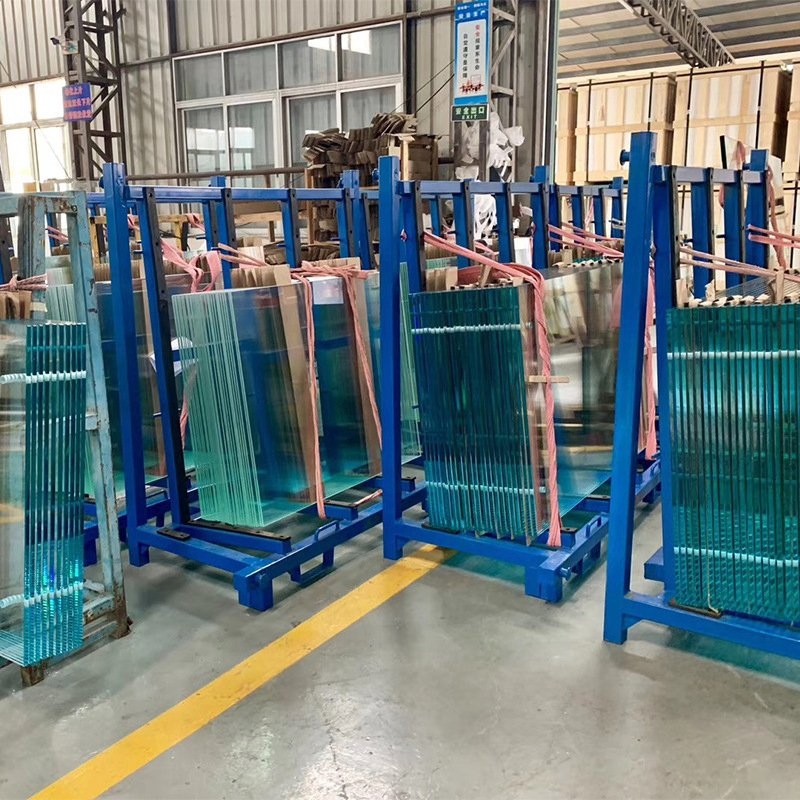

Heavy-duty construction supporting large format jumbo glass sheets.
Handling Versatility: Factory to Jobsite
A rack must be compatible with every tool in your logistics chain. From the overhead crane at the float glass line to the rough-terrain forklift at the construction site.
Questo forkliftable glass rack features:
- 4-Way Fork Entry: Reinforced channels allow safe lifting from the sides or back (depending on configuration), crucial for loading tight curtain-sider trucks.
- Crane Lifting Lugs: 4 welded lifting points on top for safe overhead maneuvering in the cutting department.
- Floor Space Saver: Unlike A-frames, the L-shape can be placed directly against a wall, doubling your aisle width for forklift traffic.
Designed with reinforced fork channels for safe 4-way entry.
Domande Frequenti
1. Can these racks handle 1/4 inch tempered glass without bowing?
Absolutely. The rack includes a solid backboard and base support. However, for thinner glass (like 1/4″ or 3/16″), we recommend using a retaining bar or strap to ensure the sheets remain tight against the rubber profiles to prevent “chatter” during transport.
2. What is the maximum load capacity for the standard L-rack?
Our standard 1600mm model is rated for 1,500 kg (approx. 3,300 lbs). We also manufacture heavy-duty versions for stone or jumbo glass that are rated up to 4,000 kg (8,800 lbs). Always check the specific data plate on your rack.
3. Do you offer hot-dip galvanizing for outdoor storage?
Yes. While our standard finish is a durable electrostatic powder coating (RAL 5010), for customers in high-humidity areas or for racks stored permanently outdoors (like stone yards), we recommend Hot-Dip Galvanizing for 10+ years of rust protection.
4. Will the L-shape tip over if I load heavy IGUs on it?
No. The L-rack is designed with a specific center-of-gravity calculation. It includes counter-balance weights on the rear structure to prevent forward tipping during loading, and the slight backward tilt ensures stability during transport.
5. How many empty racks fit in a standard 53′ truck?
Due to the nesting design, you can fit significantly more L-racks than A-frames. Depending on the specific model height, you can typically fit 3 to 4 times the quantity of nested empty L-racks compared to rigid A-frames, drastically cutting your return freight bills.
