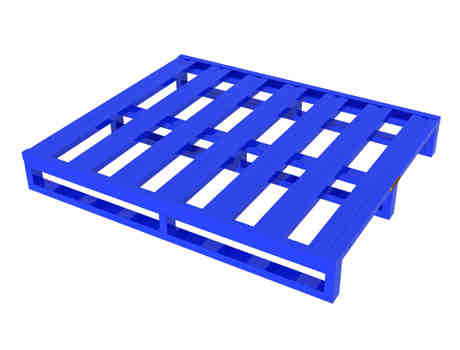

steel pallet

Contact us for a free quotation, customized dimension for both Europe USA forklift.

If you have any question or need drawings or solutions, Please leave us a message.
Product Parameter
Inquiry

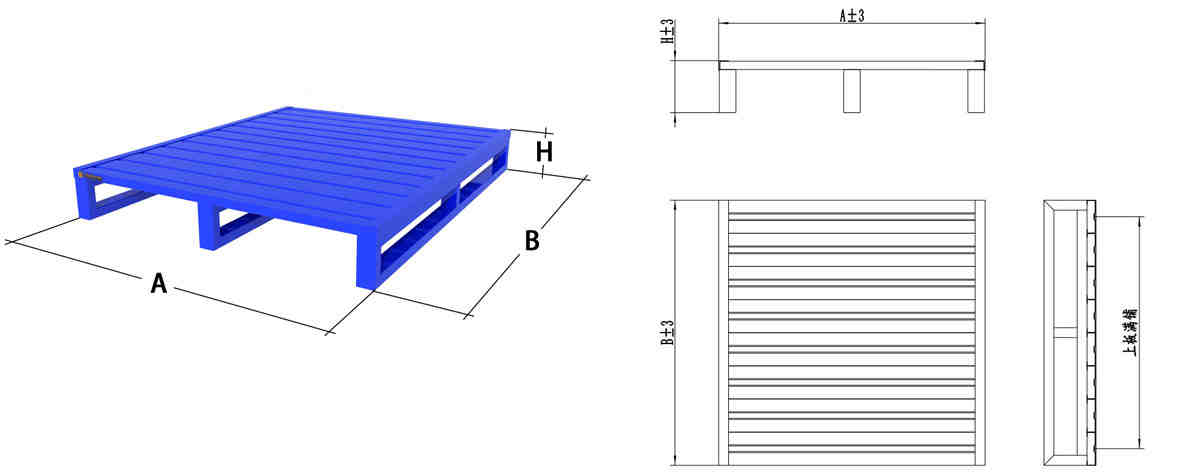

Dimensions (mm) Weight Structure 2-way/4-way Surface Capacity (t)
A B H KG Dynamic Static
800 1200 157 27.95 Single-Side, Full 4-way Powder Coating 2 4
1000 1200 157 31.27 Single-Side, Full 4-way Powder Coating 2 4
1100 1100 157 30.28 Single-Side, Full 4-way Powder Coating 2 4
800 1200 157 27.46 Single-Side, Full 4-way Cold Galvanizing 2 4
1000 1200 157 30.27 Single-Side, Full 4-way Cold Galvanizing 2 4
1100 1100 157 29.78 Single-Side, Full 4-way Cold Galvanizing 2 4
800 1200 157 22.42 Single-Side, Half covering 4-way Powder Coating 1.5 3
1000 1200 157 24.37 Single-Side, Half covering 4-way Powder Coating 1.5 3
1100 1100 157 22.68 Single-Side, Half covering 4-way Powder Coating 1.5 3
800 1200 157 22.04 Single-Side, Half covering 4-way Cold Galvanizing 1.5 3
1000 1200 157 23.95 Single-Side, Half covering 4-way Cold Galvanizing 1.5 3
1100 1100 157 22.28 Single-Side, Half covering 4-way Cold Galvanizing 1.5 3
800 1200 184 33.55 Single-Side, One Side Full 4-way Powder Coating 2 4
1000 1200 184 37.7 Single-Side, One Side Full 4-way Powder Coating 2 4
1100 1100 184 36.95 Single-Side, One Side Full 4-way Powder Coating 2 4
800 1200 184 32.99 Single-Side, One Side Full 4-way Cold Galvanizing 2 4
1000 1200 184 37.07 Single-Side, One Side Full 4-way Cold Galvanizing 2 4
1100 1100 184 36.31 Single-Side, One Side Full 4-way Cold Galvanizing 2 4
800 1200 184 42.75 Single-Side,  Full 4-way Cold Galvanizing 2 4
1000 1200 184 49.28 Single-Side,  Full 4-way Cold Galvanizing 2 4
1100 1100 184 48.24 Single-Side,  Full 4-way Cold Galvanizing 2 4
Customized as required
Proudct Feature

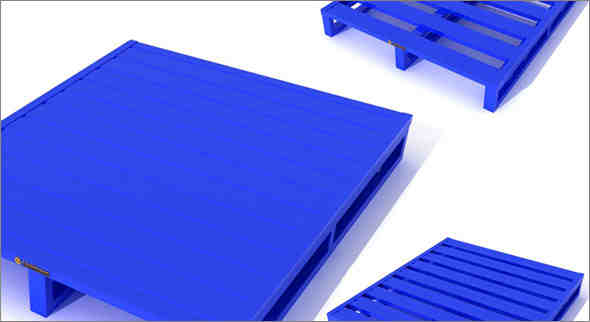

1.The number of panels can be increased or decreased according to customer’s request.
steel pallet
steel pallet

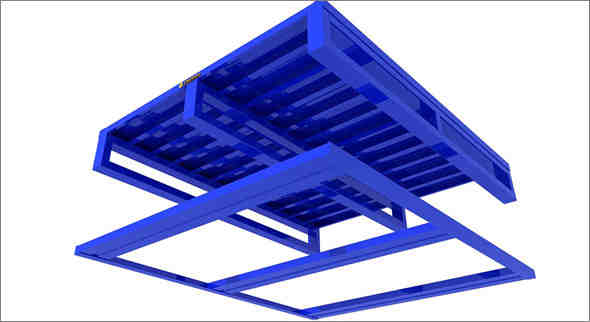

2.Panel can be added to the bottom of the pallet according to actual loading products.

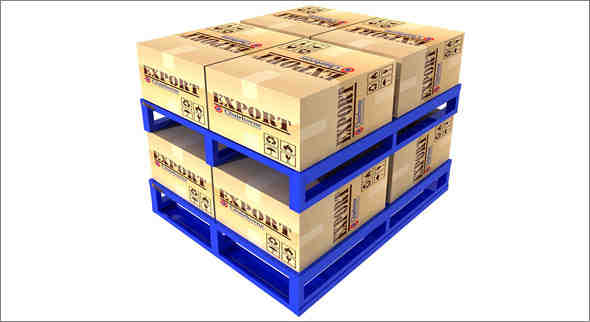

3.The pallet loading with goods can be stacked if the goods are without fear of pressure and with unitized packaging.
steel pallet
steel pallet

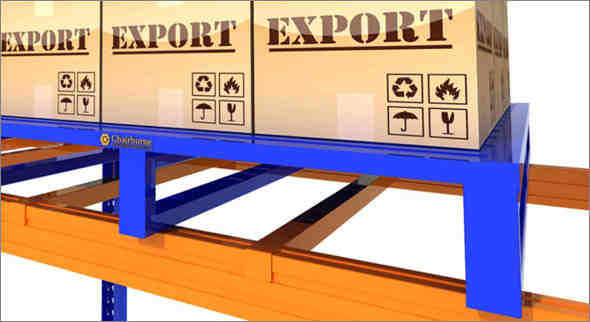

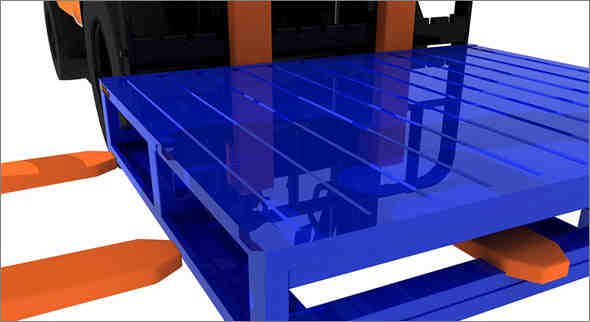

4.The pallet can be used on selective rack, trough type rack and gravity type rack. Both folklift and hand pallet truck are applicative.

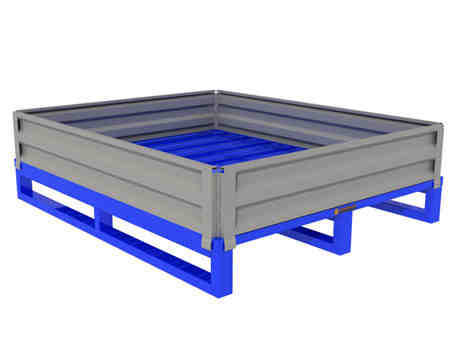

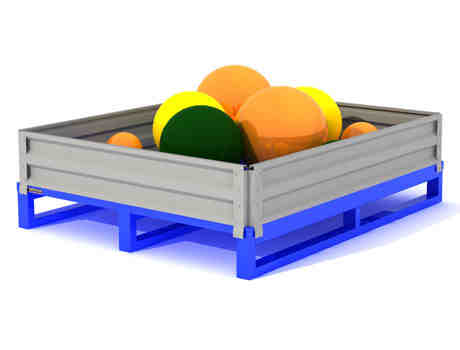

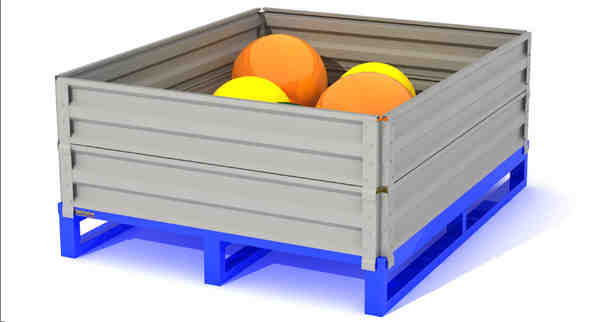

5.To load scattered goods, pallet collar can be installed to the pallet.
steel pallet
steel pallet
6.Customer’s logo can be added as required.

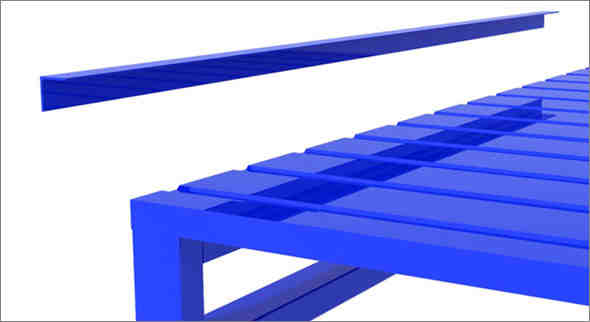

7.Both sides are processed with Angle wrapping edge, which enhances the surface effect of the pallet and reduces the risk of damage to the packaging.
steel pallet
steel pallet

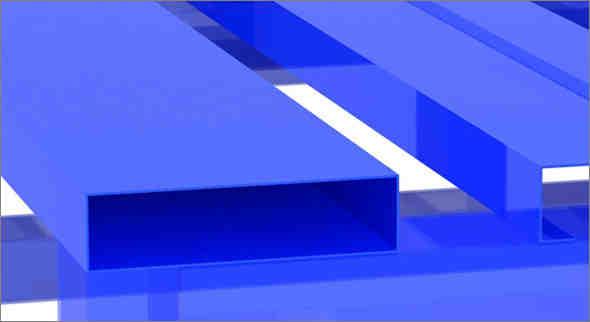

8.In order to reduce the damage to the pallet caused by frequent forklift operation, rectangular tubes are arranged at both ends of the insertion direction to increase the service life.

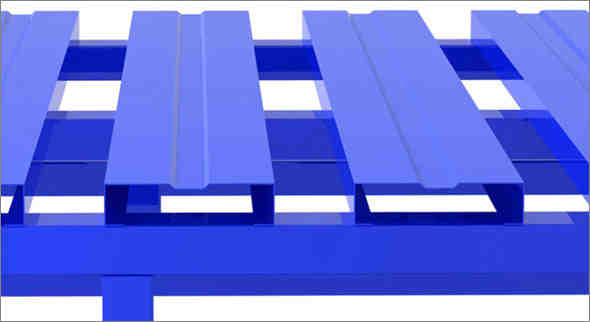

9.The design of corrugated panel is conducive to improve the anti-skid effect and increase the load capacity of the panel but keep the weight light.
steel pallet
steel pallet
10.The 4-way insert design increase the space utilization and make it more convenient on operation.
