Post-Palette-Stillagen
derack

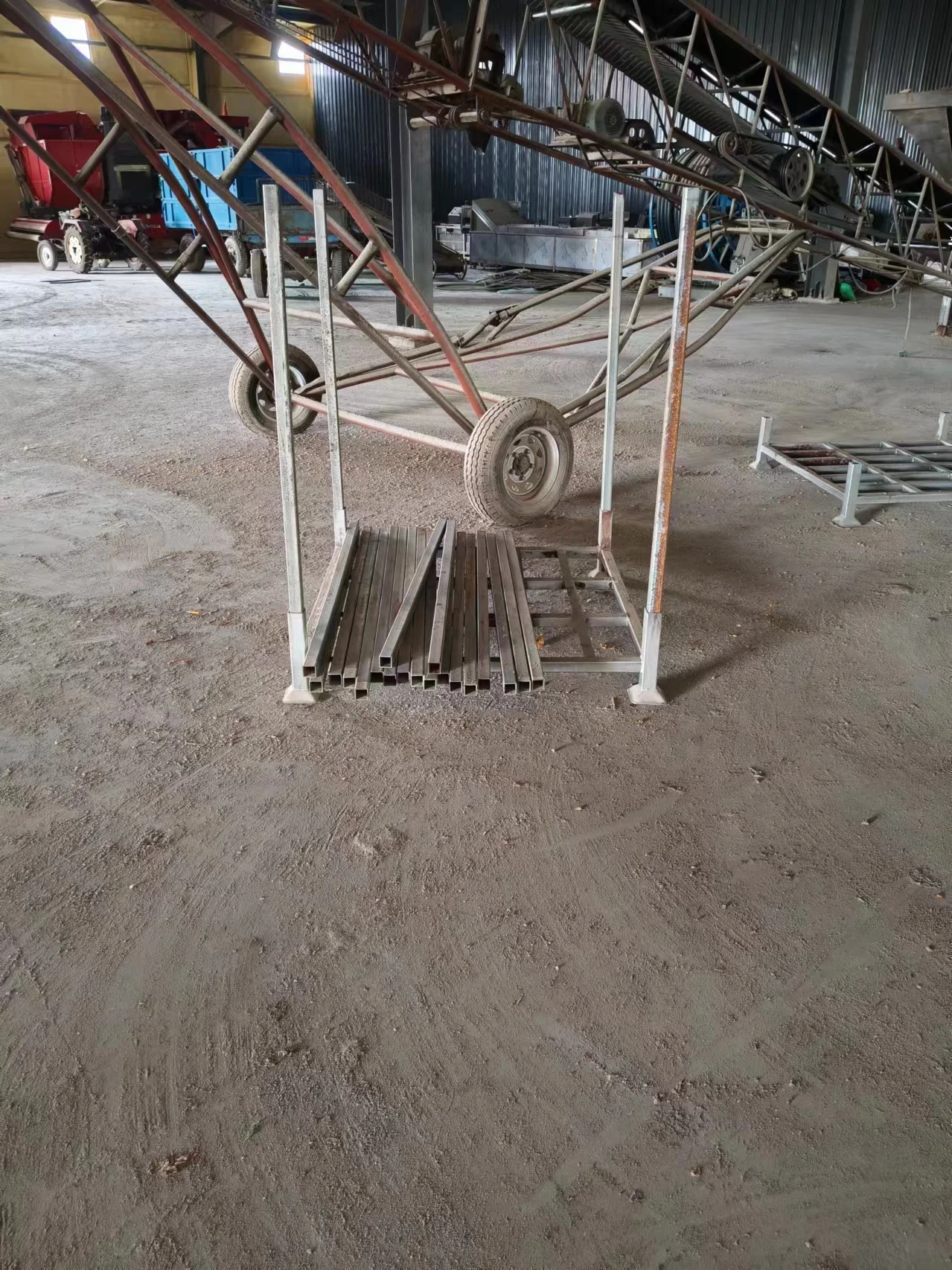

A welded steel frame with four upright posts forms a stable cell for pallets, coils, and loose goods. The units are stackable when empty and stackable when loaded, reducing both inbound freight and warehouse floor space.
Was ist eine Post pallet stillage?

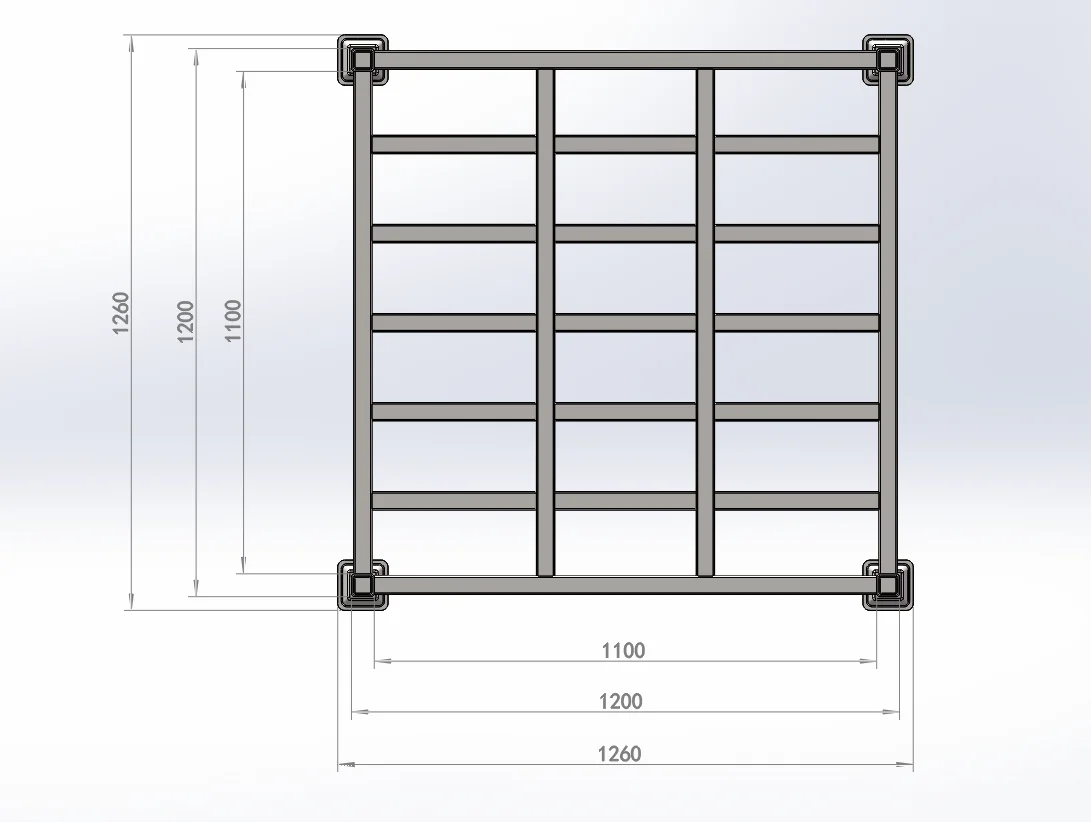

A post pallet stillage is a steel platform with four corner posts that turns a standard pallet footprint into a secure, stackable cage.
The posts are inserted into corner sockets and can be removed for return or collapsed transport. Because the base retains standard pallet dimensions, the unit can be used with existing forklifts, conveyor systems, and racking without adapters.

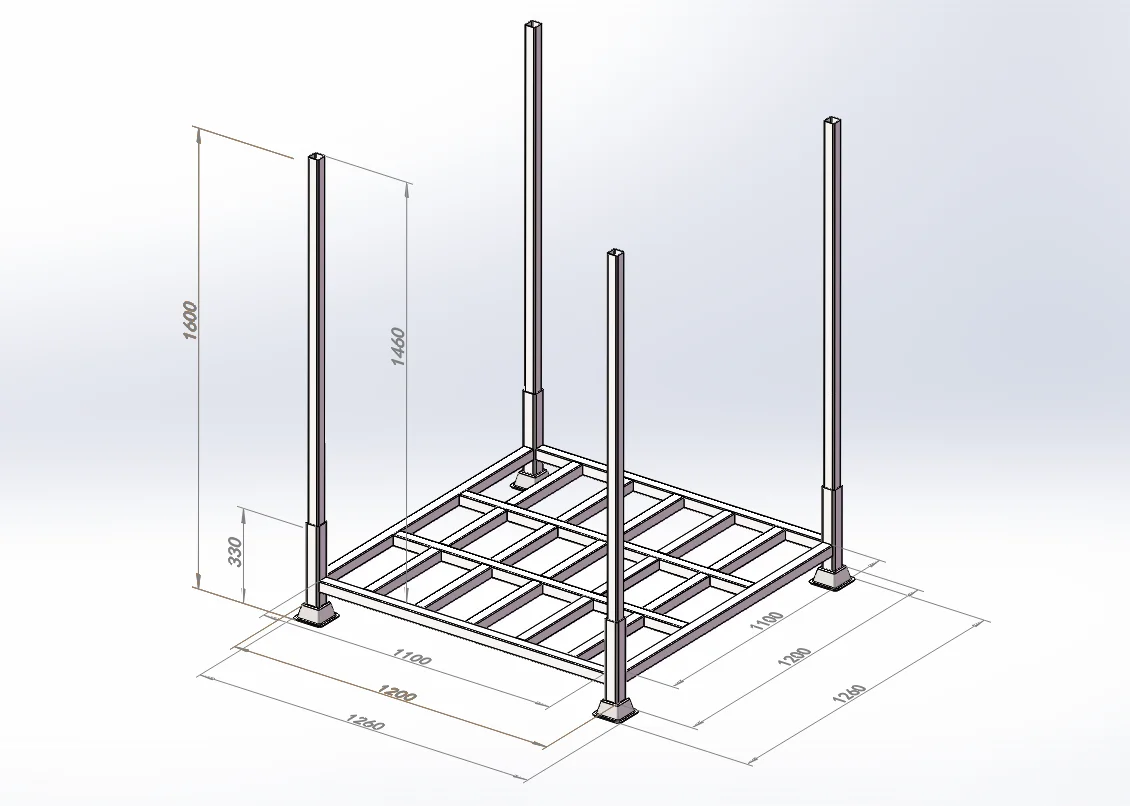

- Four removable upright posts for load restraint
- Mesh base with 4-way forklift access
- Nests flat when empty to reduce return volume
- Verzinkte oder pulverbeschichtete Oberflächenoptionen
Common post pallet stillage Layouts
Offener Rahmen
Single-level open frame
Four posts and a mesh base. Ideal for bags, cartons, and light coils requiring lateral restraint without a deck.
Stapelbar

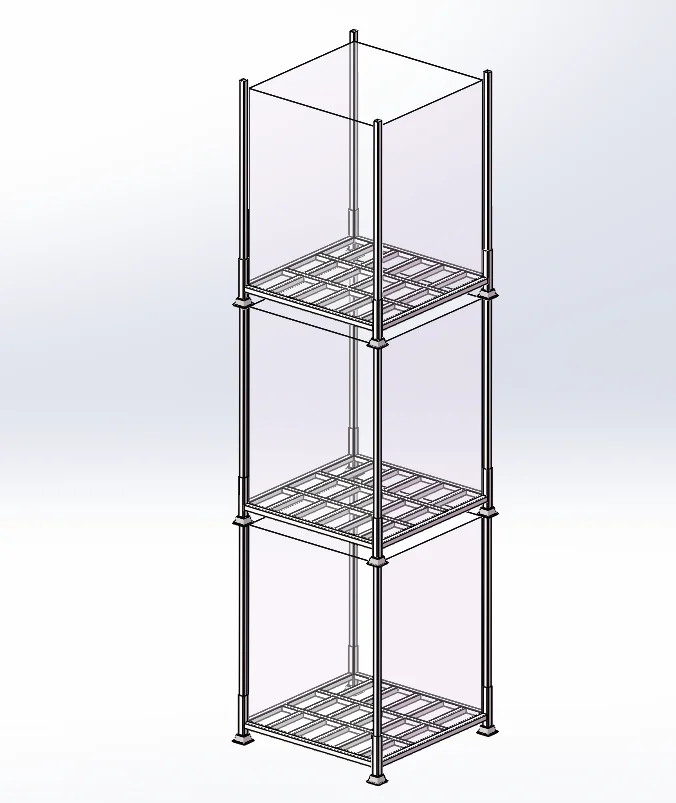

Mehrstöckige Stapelzelle
nPosts extend through stacked bases to form a vertical column. Ideal for tall castings, extrusions, and components with height.
Mehrweg
Collapsible return unit
Removable posts allow empty stillages to nest flat, reducing return volume in loop logistics by up to 60 percent.
Why teams switch to post pallet stillages wechseln
Protects goods in transit
The posts prevent loads from shifting or falling during forklift handling and truck transport, reducing damage and rework.
Uses vertical space, not floor space
Stacking loaded units upward allows warehouses to store more SKU lines in the same bay and delays the need for additional racking systems.
Closes the return loop
Empty stillages nest flat and stack on trucks, reducing return logistics costs between supplier and assembly plant.

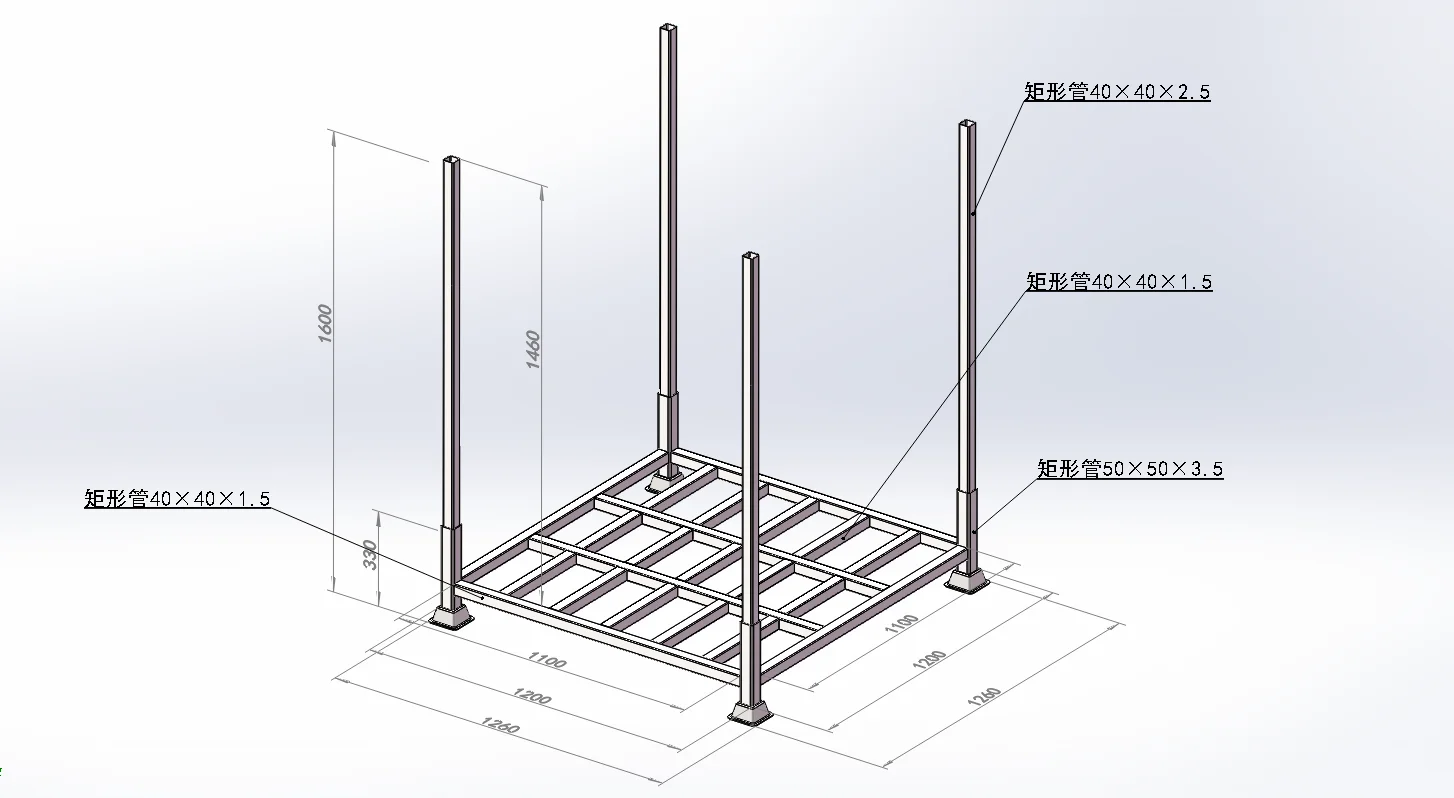

Built from standard profiles
Welded construction from rectangular tube uses common steel sizes, so repairs and spare parts remain simple years after purchase.
How the stillage is made gebaut wird
Tube cutting & notching
Rectangular tubes are cut to length and notched for the mesh base and post sockets.
Schweißen & Vorrichtungsmontage
The base frame and mesh are jig-welded to ensure squareness; the post holders are aligned in the same operation.
Oberflächenbehandlung
Hot-dip galvanizing or powder coating is applied to resist corrosion in yard and plant environments.
Assembly & shipping
Posts are trial-fitted, units are wrapped, and stillages are loaded for shipment.
Post pallet stillage Fragen
Get a quote for a post pallet stillage ein
Tell us your load size, stack height, finish, and quantity. We will send you a drawing and a quote within one business day.
