Mytrack Collapsible Stacking Post Pallet for Carton and Bulk Goods Vertical Storage
Mytrack
Mytrack collapsible stacking post pallet for carton and bulk goods vertical storage. Four-corner post positioning, forklift handling and foldable return planning help reduce floor storage and secondary moves; confirm load and stack conditions.
Move Cartons Off the Floor with Vertical Stack Storage
Mytrack is a foldable stillage for carton and bulk-goods handling: a steel base, four corner stacking posts and forklift access turn loose floor stock into one organized handling unit.
During storage, the upper frame must be positioned so every foot sits fully over the corresponding lower post. That post-to-foot contact is the stability principle—not a claim of a universal stack height or load rating. The stack count, floor capacity and full-load stacking condition must be confirmed against the approved configuration.
- Locate before lifting away: align all four feet with the lower rack’s stacking posts before withdrawing the forklift.
- Use the height above the floor: stack cartons or bulk goods vertically where building clearance, floor condition and operating rules permit.
- Handle as a unit: forklift pockets support palletized mechanical handling instead of repeated manual re-sorting.
- Fold for the return leg: the recorded 14922 design folds from 1,270 mm overall height to 355 mm; this project value is not a universal Mytrack specification.
Choose the Handling Pattern, Not a Generic Pallet
CARTONS & BULK GOODSOpen post pallet for vertical storage
Use the four-corner structure to organize cartons or bulk goods into stackable units. Mesh or solid deck selection depends on the load contact surface and approved design.
RETURN-LEG STORAGECollapsible stack rack for empty returns
When the rack is empty, removable posts can be folded inward in the recorded project configuration. This reduces return height and supports denser empty-rack planning.
OPTIONAL MOBILITYWheeled or access-feature variant

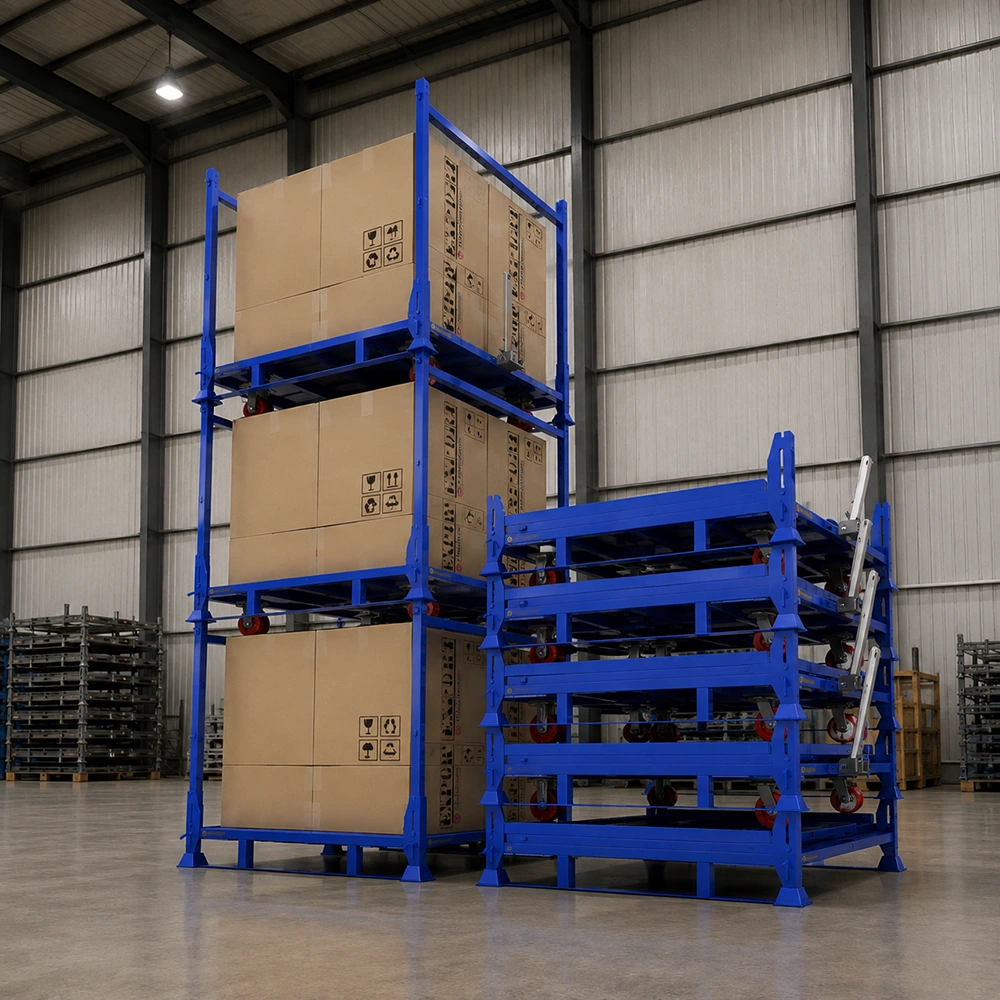

Caster wheels, hinged rails or access components appear in selected product visuals. They are configuration directions only and must be specified, checked and priced for the actual order.
Answering the Three Floor-Storage Questions
How do cartons stack?
Load cartons or bulk goods on the steel base, then place the next rack with all four feet fully seated over the lower rack’s posts. Forklift pockets keep each handling unit accessible.
Are the posts stable?
The locating relationship is clear: post tops receive the upper feet. Operators must verify full contact, level ground, no deformation and the approved stacking condition before removing the truck.
How much floor can it save?
There is no honest universal percentage. The saving depends on carton footprint, aisle width, clear height, stack count and safety clearance. Send a floor plan and batch count for a comparison.
Why not a flat steel pallet?
A flat pallet provides a base; Mytrack adds corner post positioning and a foldable return format. It is suited to organized vertical block storage, not a substitute for every pallet or fixed rack.
Build the Right Stack Around Your Load
Map the goods
Share carton or part dimensions, unit weight, center of gravity, contact surface and whether the load is loose, boxed or bundled.
Set the envelope
Confirm internal dimensions, overall height, folded height, forklift pockets, aisle limits, clear height and intended empty/full stack condition.
Review the structure
We review post-to-foot location, deck, restraints and optional protection. Material, load, stack and operating documents remain configuration items to confirm.
Plan the loop
Compare filled-floor occupancy with vertical stacking, then plan folding, packaging and empty-rack return for your factory, warehouse or distribution route.
Before You Specify Foldable Stillages
Is Mytrack rated for 2,000 kg?
The 2 t figure appears as a customer design requirement and in promotional visuals for selected configurations. It is not a universal or certified safe working load in the available records. Confirm the required load case and approved design before purchase.
What stack height can we use?
Maximum stack layers and floor capacity are not universal specifications. Confirm full-load or empty-load stacking, building clear height, floor condition, center of gravity and site rules for the selected configuration.
What dimensions are available?
Dimensions are project-defined. One recorded 14922 design is 2,300 × 2,470 × 1,270 mm overall, with 2,116 × 2,410 mm length/width internally and 355 mm folded height. These values must not be applied to every order.
Can it include casters, side gates or load protection?
Such features can be reviewed as options where the load and handling method require them. The images show selected configurations, not a standard package. Specify wheels, hinged rails, restraints, rubber protection or other accessories in the engineering review.
How does it compare with floor storage?
It can turn dispersed cartons into forklift-ready units and use approved vertical space. The actual area saving must be calculated from your footprint, aisle, clearance and stack rules rather than promised as a fixed percentage.
What should we send for a quotation?
Send product dimensions, maximum unit weight, load distribution, required stack layers, forklift details, indoor clear height, floor conditions, annual quantity and delivery route. We can then review a column-pallet storage plan.
