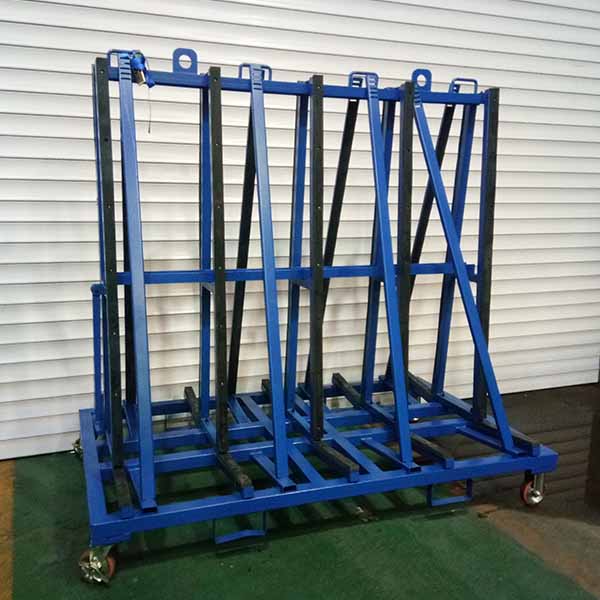

A frame transport rack
transport and trolley rack for the safe ransport and storage of windows. flat glass or insulating glass units.
| Dimensions | Weiht | Material | Capacity (t) | Surface | |||
| A(mm) | B(mm) | C(mm) | KG | Dynamic | Static | ||
| 2500 | 1220 | 1900 | 235 | Q335 | 3 | 5 | Powder coating |
| Customized as required | |||||||
1.This product is suitable for the temporary storage, transportation and internal transfer of board goods, especially fragile goods.
2.The specifications of this product can be customized according to user requirements.
3.The product is a combined structure, which can be disassembled and placed when empty, for convenient storage and transportation.
4.The product is double-sided symmetrical structure. The goods are placed on both sides with good stability and not easy to overturn.
5.The surface treatment of this product adopts the electrostatic spraying process, with uniform coating, good wear resistance and anti-corrosion effect.
6.The bottom of this product is equipped with high-strength casters, which can cooperate with traction and draggin.
7.The top beam of this product is provided with a lifting ring, which can be used with lifting equipment.
8.This product is equipped with forklift road, which can be used with forklifts.
9.This product is equipped with a limited rod, which can quickly fix the goods and shelves.
10.The product is provided with a cushion pad on the contact surface of the goods to prevent damage to the goods caused by the steel frame.
Product drawings
