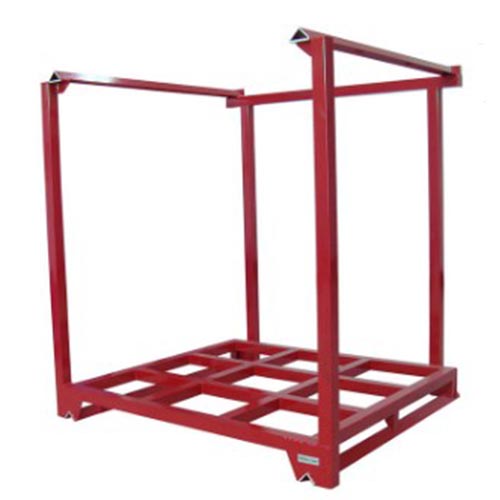

Adjustable steel stacking racks and shelve tire stacking rack

Product name
Type A stacking rack
Usage
Warehouse Rack
Application
Warehouse, logistics, tyre, auto industry
Material
Steel
Feature
Corrosion protection, anti-rust, save space, easy to transport
Loading capacity
1000 kg
Custom
Accept

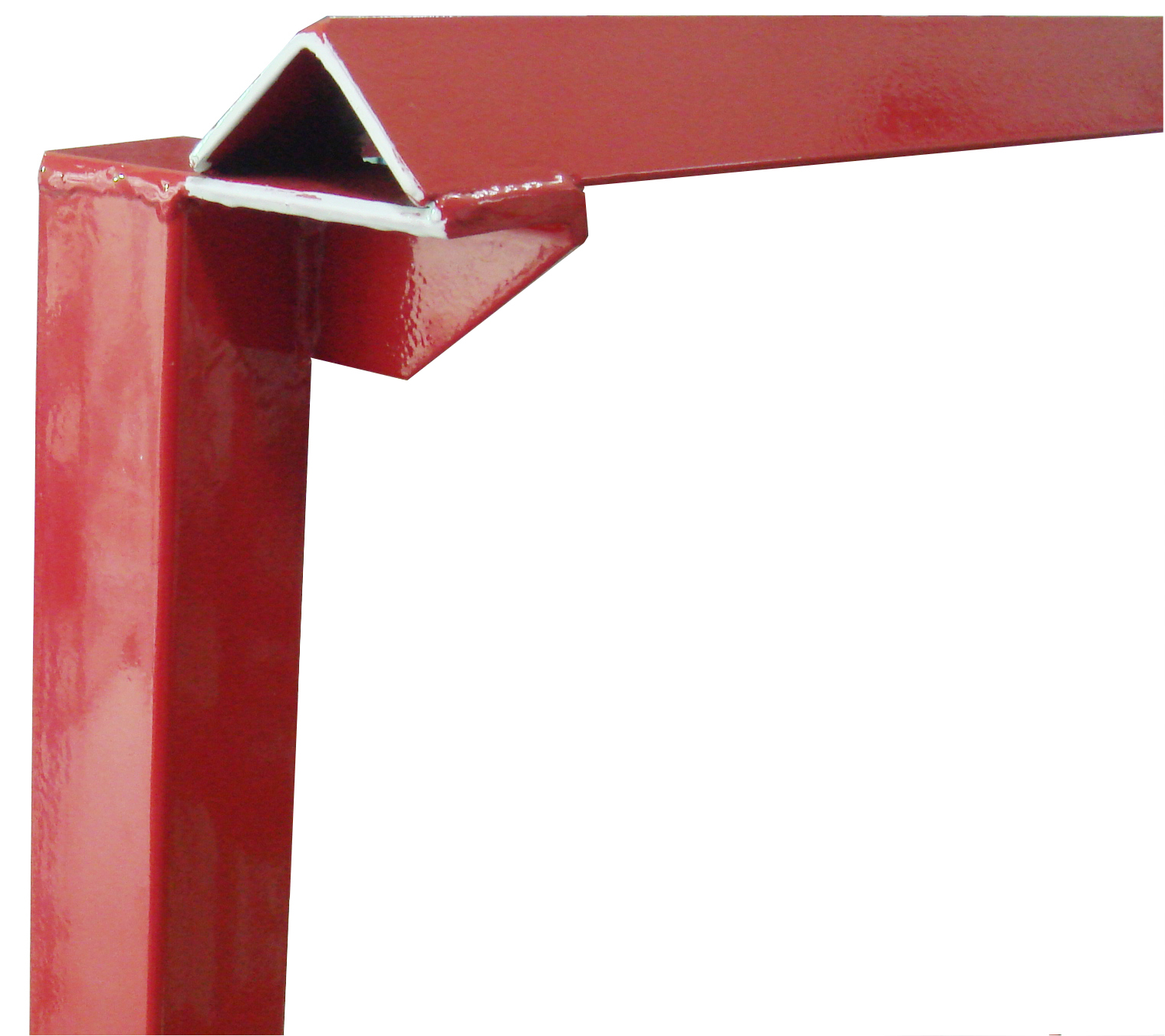

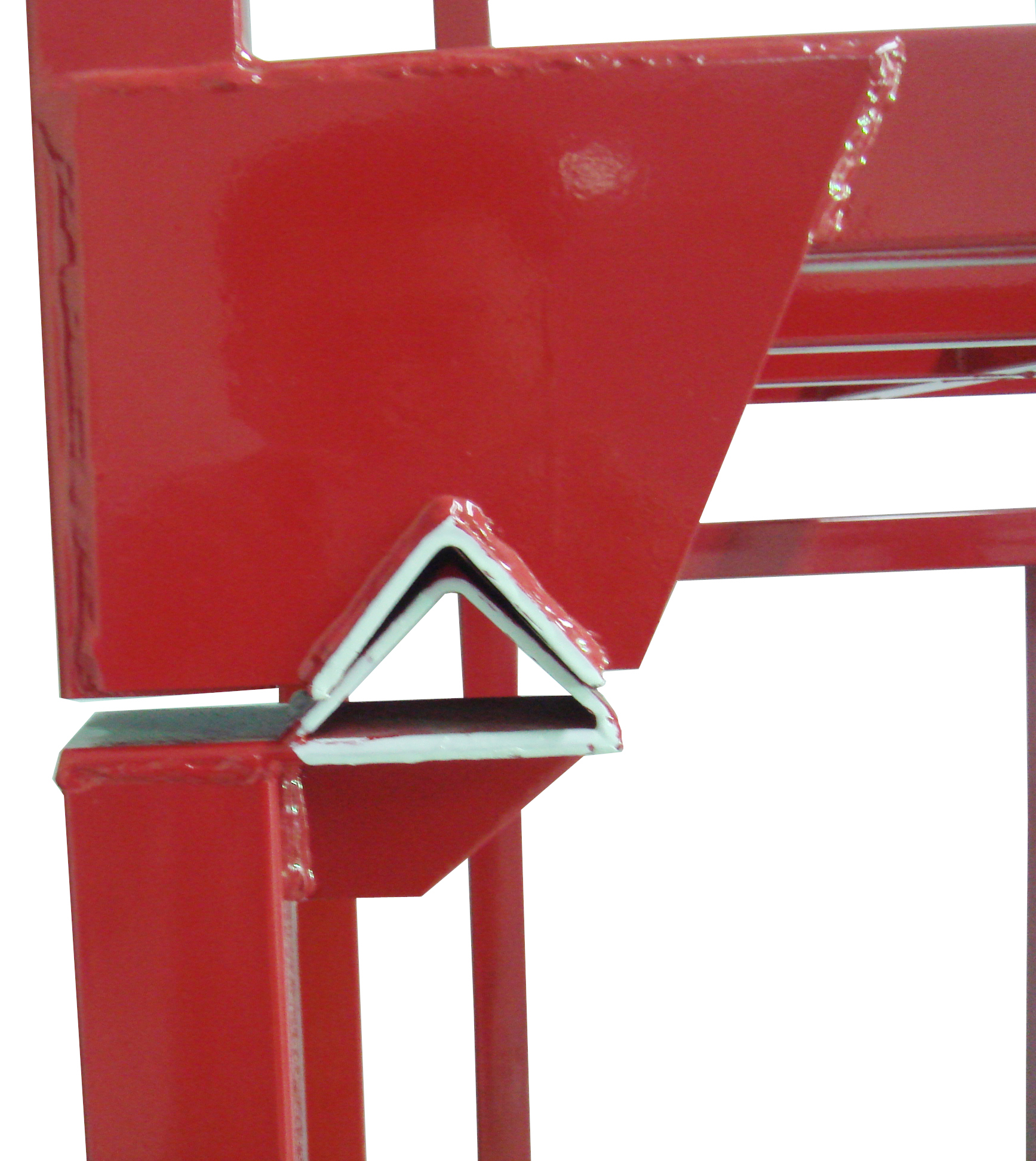

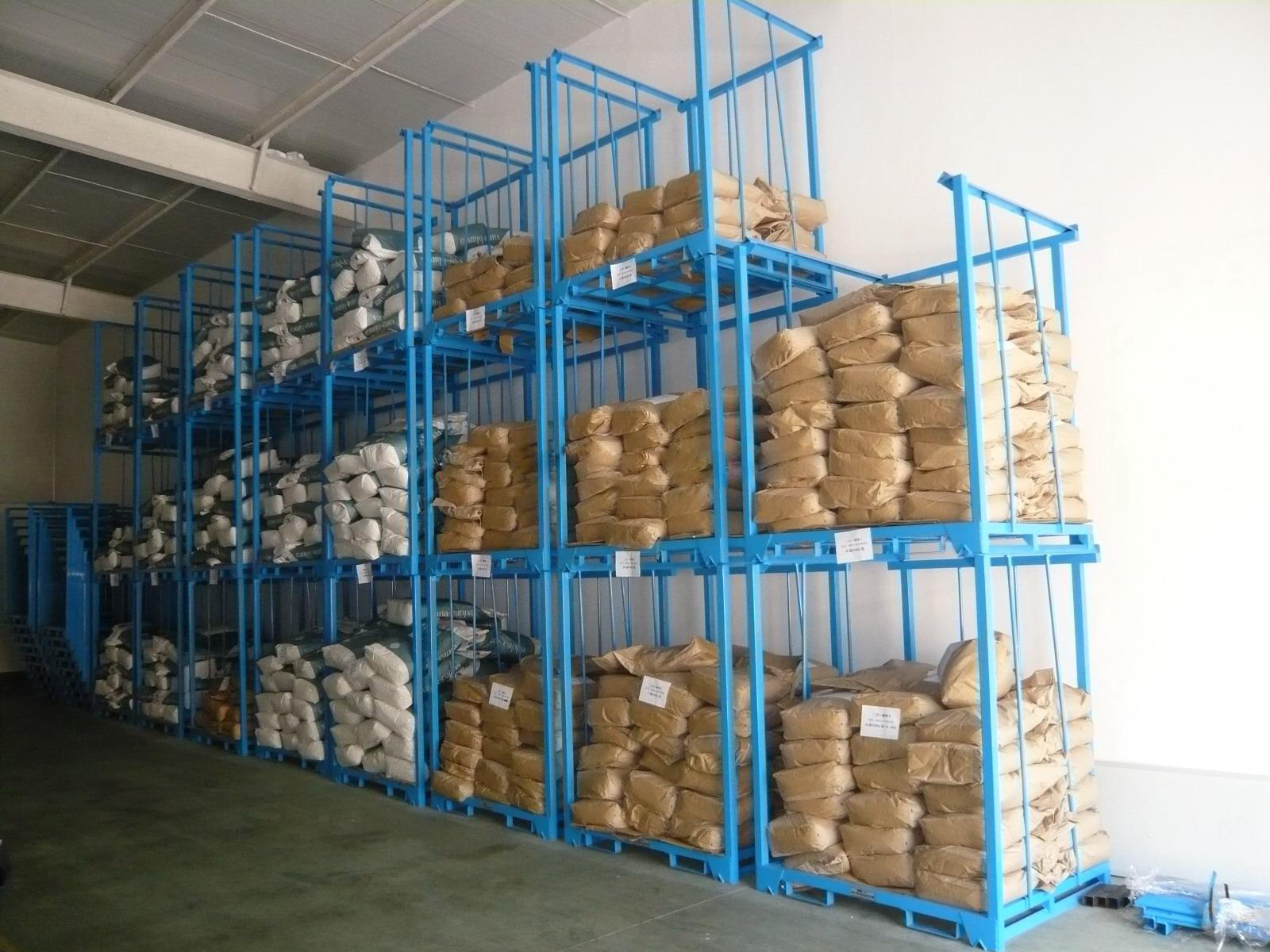

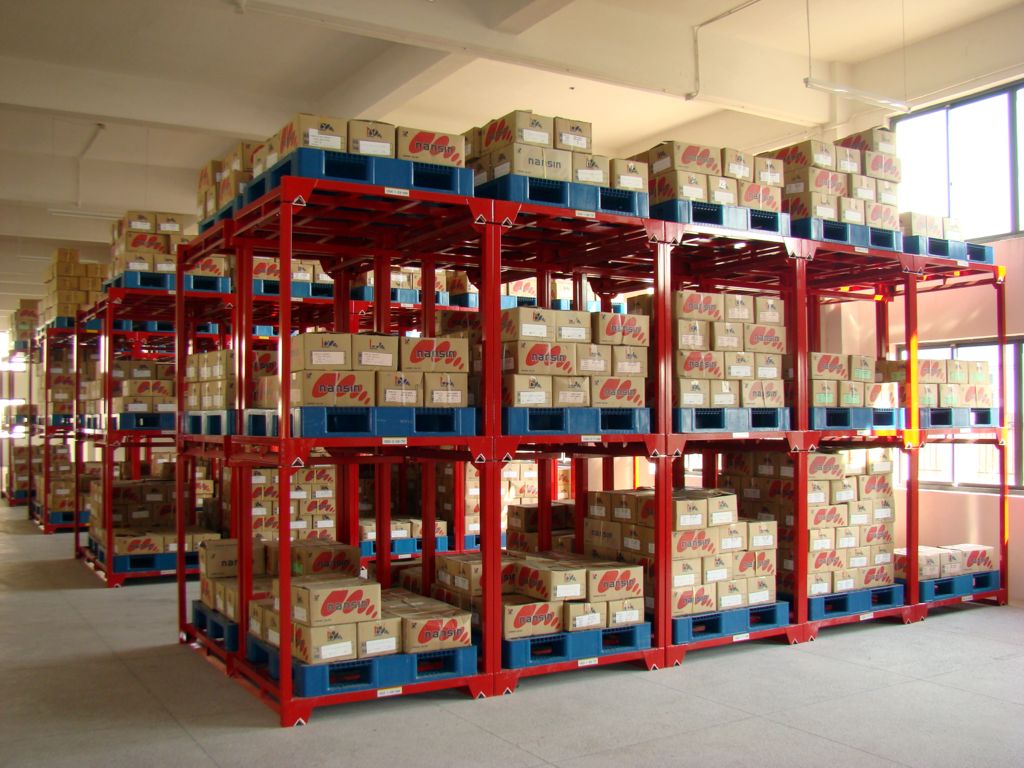

Photos

We accept customized size and loading.The following size are standard types with stock.

You can contact us for detailed parameters such as weight and thickness.

Length(mm)
Width(mm)
Height(mm)
Loading(kg)
Layers
1350
1200
1200
1000
3
1350
1200
1400
1000
3
1450
1200
1200
1000
3
1450
1200
1400
1000
3
1550
1200
1200
1000
3
1550
1200
1400
1000
3
1300
1200
1200
1000
3
1300
1200
1400
1000
3
1400
900
1200
1000
3
1400
900
1400
1000
3
1400
1100
1200
1000
3
1400
1100
1400
1000
3
1400
1300
1200
1000
3
1400
1300
1400
1000
3

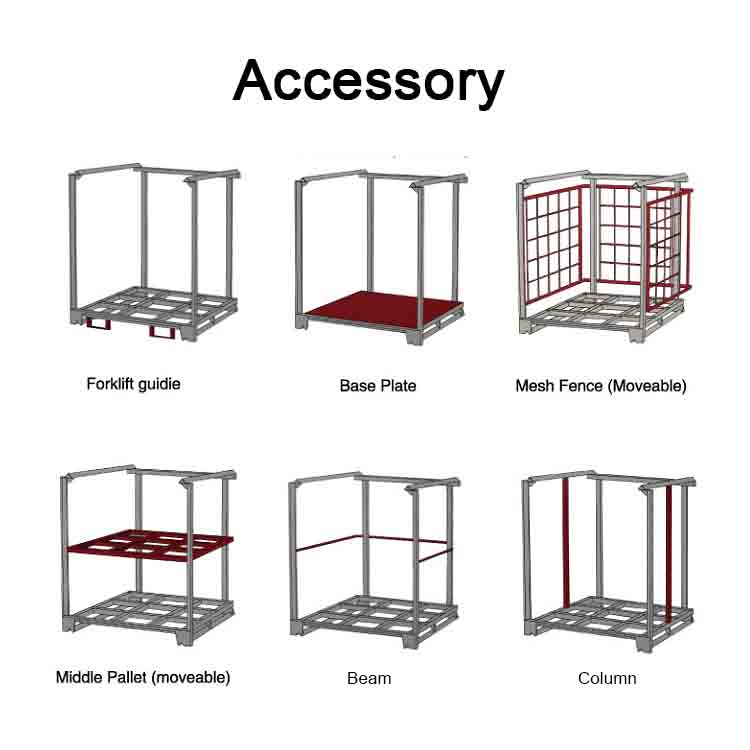

Product drawings
