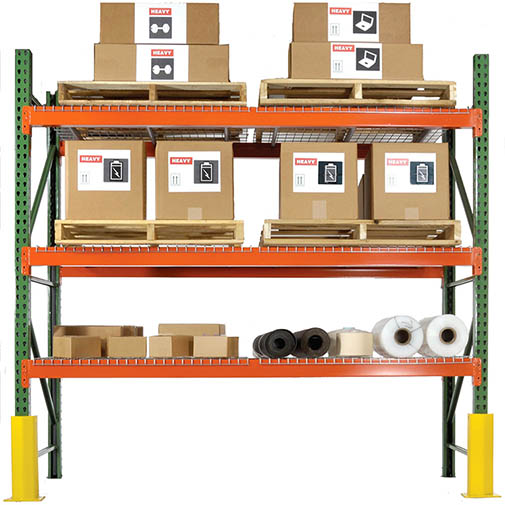

Customized Adjustable Steel Heavy Duty Warehouse Storage Pallet Rack System

Product Description

Product Name	Customized steel heavy duty warehouse storage pallet rack system
Material	Q235B
Color	Orange,grey,blue
Standard size	L2000D1000H3000mm
Tier	2~6 tier (optional)
Loading capacity	≤5000kg / layer
Finish	No rust lead-free powder coating.
Used	Building ,industry, machinery

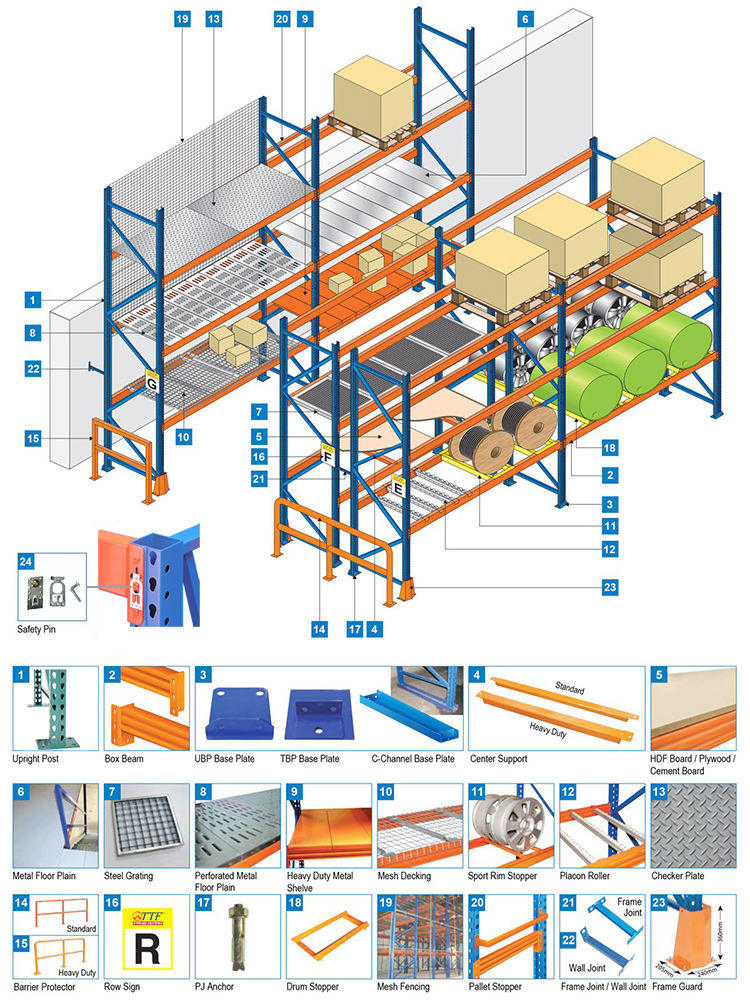

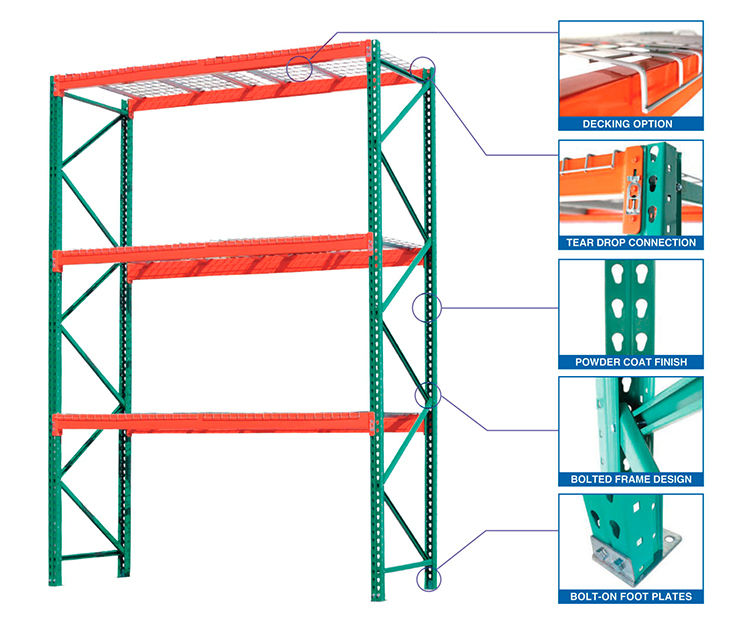

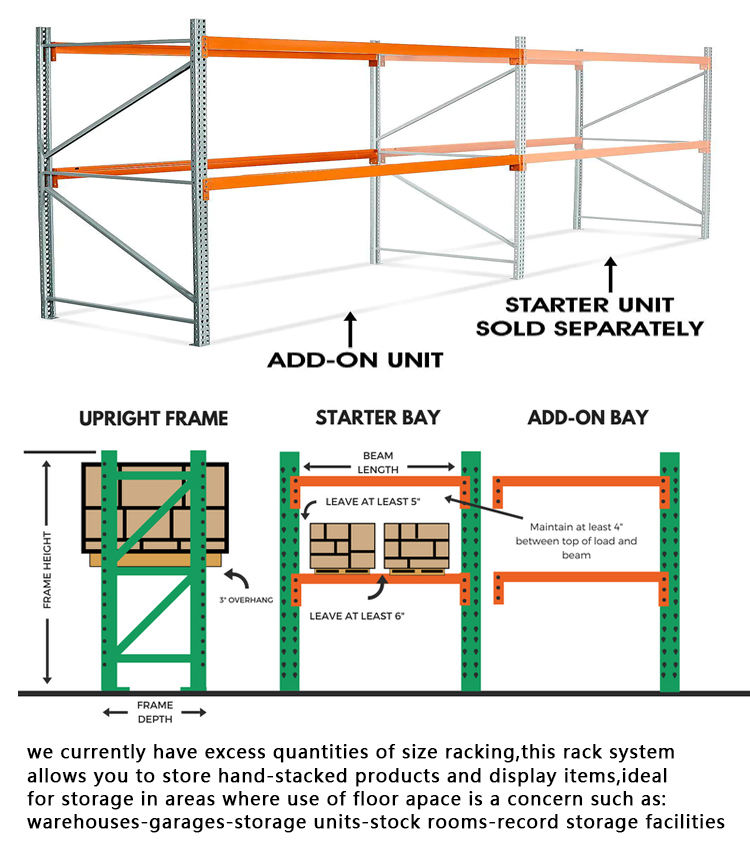

Product drawings

Input your structural guidelines below. Our math system calculates material deflection, stress bounds, and recommends optimal profiles.

Beam Span / Bay Width (mm) Clear entry span between upright frames. Common: 2700mm, 3300mm.

Frame Depth (mm)

Target Loading Capacity per Level (kg) Uniformly Distributed Load (UDL) per pair of beams.

Steel Grade Conformity

Click Compute to calculate stress factors and display structural drawing recommendations.
