Customized Stackable Tire Pallet Rack Storage Racking System

Products Description Item Stack Rack Place of Origin China Jiangsu Brand Name Liyuan Model Number STR Type Stackable Material Steel Feature Corrosion Protection Usage Warehouse Rack Certificates CE Thickness of Material 1.5-2.5mm Load capacity 500-30

Request a quote
Customized Stackable Tire Pallet Rack Storage Racking System
Products Description
Item
Stack Rack
Place of Origin
China

Jiangsu
Brand Name
Liyuan
Model Number
STR
Type
Stackable
Material
Steel
Feature
Corrosion Protection
Usage
Warehouse Rack
Certificates
CE
Thickness of Material
1.5-2.5mm
Load capacity
500-3000kg/level
Length
1500mm
Width
1500mm
Height
1500mm
Surface treatment
Powder Coated or Galvanized
Usage
Warehouse Storage
Color
Blue/Orange/Grey
MOQ
100 Sets

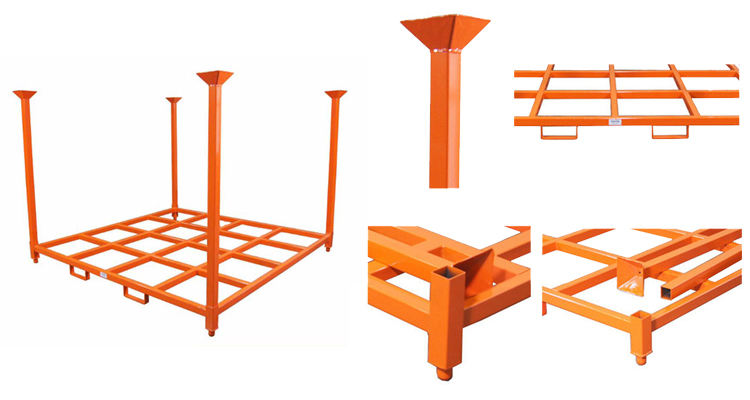

Details Images

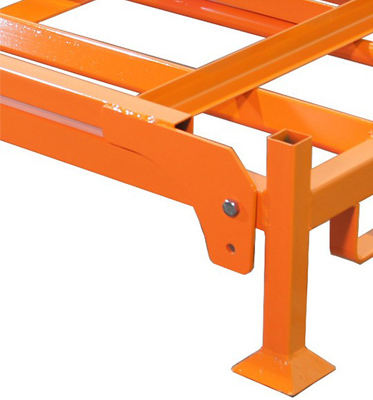

Foldable Type

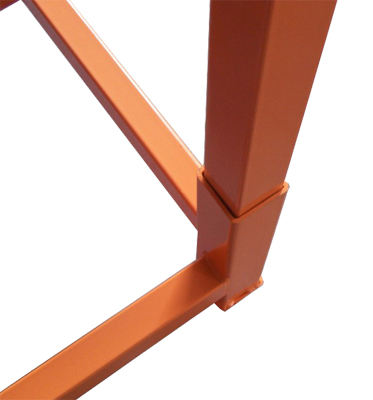

Knock-Down Type

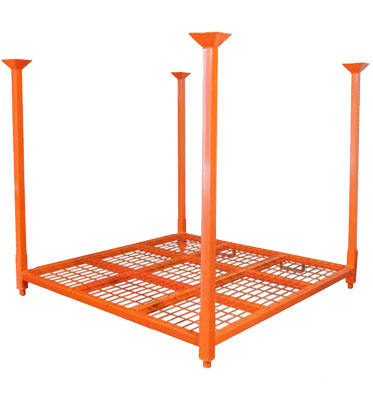

With Wire Mesh Plate

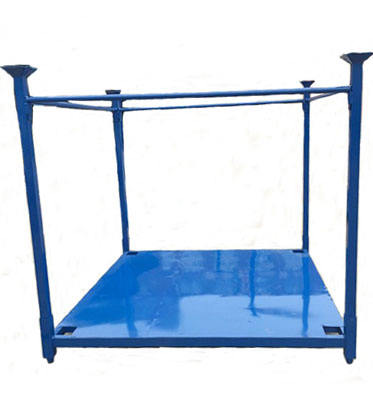

With Steel Plate

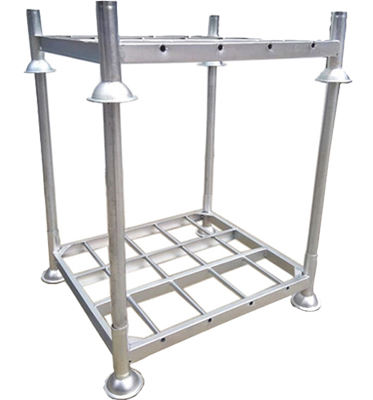

Surface Treatment – Hot Dipped Galvanizing

Surface Treatment – Powder Coating

Product drawings
