Drahtgittercontainer mit Rollen sind nicht automatisch für statisches Stapeln zugelassen

Adding casters to an Stbox wire mesh container changes the unit's operating system. A stationary container transfers load through its engineered base and stacking feet. A container with casters transfers load through a small number of wheel contact points, introduces rolling and braking forces, and raises the load higher above the floor. For this reason, a Drahtgittercontainer with casters must not be treated as the same statically stackable container by default.

The short answer is simple: Do not stack a container with casters until the wheel configuration, load case, floor, and stacking interface have been reviewed together. The Stbox image library shows both static stacking and mobile variants, but the mobile variant is a configuration option — not a default release for every application.

What changes when wheels are mounted on a wire mesh container?

The first change is height. The casters raise the container body and its contents above the normal support level. This can shift the combined center of gravity upward, especially if a heavy load is placed high or is unevenly distributed. The second change is load transfer: instead of four steel feet or the specified base structure sharing the compressive load, the caster set concentrates force on the mounting plates and the floor contact surfaces.

Movement introduces another difference. Starting, stopping, steering, thresholds, and uneven floors create forces that do not occur in a stationary stack. A caster that appears suitable under a centered empty box may not be suitable for a full box, an inclined route, or repeated handling in a supermarket or on the line. The caster material, caster size, mounting type, swivel arrangement, and brake specification must therefore be selected based on the actual route and load — not simply carried over from the original specification of the stationary container.

Can an Stbox equipped with casters still be stacked?

Only if the complete mobile configuration has been specifically approved for stacking. The standard static arrangement relies on aligned steel feet and a stable top frame. The following image shows this static interface; it must not be understood as approval to place a caster assembly on another container.

Before stacking, confirm whether the casters are removed, retracted, separated from the compressive load path, or supported by a dedicated interface. Confirm the permissible empty and loaded states separately. A folded empty container can have a different contact pattern and center of gravity than an assembled container filled with parts. Unless the supplier has confirmed the exact configuration and operating rule, use the unit with casters exclusively as a mobile container and keep it away from a static stack.

How should caster load capacity and floor load capacity be checked?

There is no universal caster set load capacity that can be assigned to every Stbox without concern. The required load capacity must be confirmed based on the total operating load, load distribution, number of effectively load-bearing casters, frequency of movement, floor condition, thresholds, and braking and steering requirements. Do not make a purchasing decision simply by dividing the total weight by four. Uneven loading and dynamic movement can cause one caster or mounting point to carry more than its nominal share.

Floor verification is equally important. Identify the floor slab or floor structure, surface condition, joints, drains, ramps, and weak points. Then check both the area load and the local point load at each caster. The concrete floor image shows a static, two-high storage situation; it provides no value for floor load capacity for a container with casters. Your operations engineer or responsible building specialist should confirm that the floor can accommodate the calculated contact pressure along the entire travel and parking route.

Pallet truck compatibility is a separate question. The Stbox base can be handled with a pallet truck in the configuration shown, but this evidence confirms neither that the same container is safe on casters nor that it may be stacked with casters mounted.

What must be clarified before ordering swivel casters

• Operating load: State the empty weight of the container, the maximum load, the load distribution, and whether the load can shift during movement; the load capacity of the caster group must then be confirmed for that case.
• Travel route and floor: Describe the condition of the concrete, joints, ramps, thresholds, slopes, contamination, and any sensitive floor coverings so that caster type and size are not selected based only on appearance.
• Parking and stacking rule: State whether the container remains mobile, is parked loaded, or returns to static stacking; these are different approval conditions and must not be mixed.

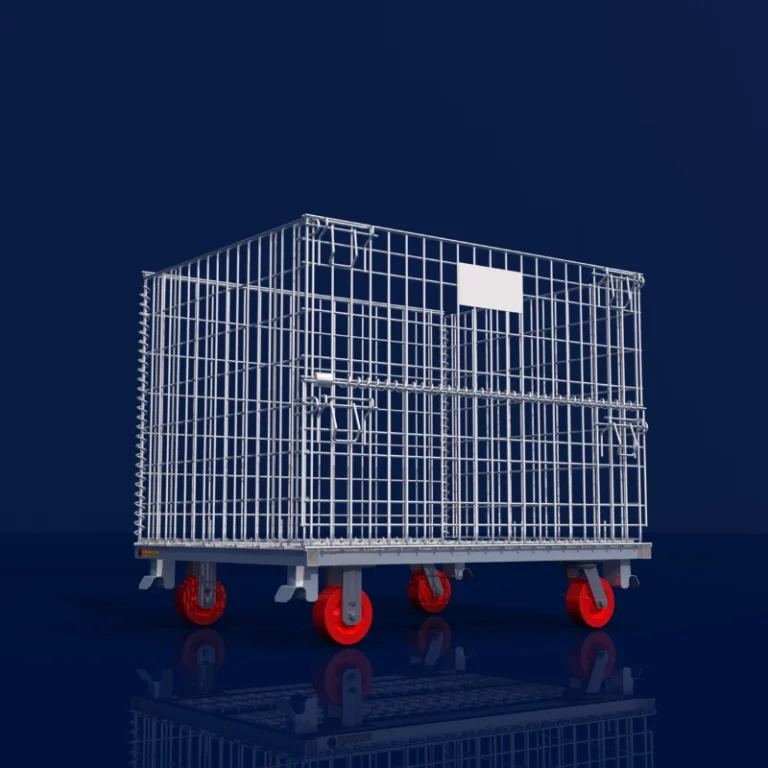

• Floor interface: Confirm mounting plates, reinforcements, caster clearance, and whether the original stacking feet remain the intended load path. The variant shown below with mounted casters is evidence of a special design, not a universal retrofit instruction.

Häufig gestellte Fragen

Do swivel casters need brakes?

For spotting at the line, during loading and unloading, or in supermarket distribution, it is usually worth specifying a parking brake function so the container can be secured while people work around it. The variant shown uses foot-operated brakes, but the exact brake type, locking behavior, and suitability for the chosen caster set still need to be confirmed. A brake prevents or limits rolling; it does not make the container approved for static stacking and does not replace a floor and stability check.

What is the safe rule when the configuration is not confirmed?

Keep the caster-equipped container on the floor, do not stack it, keep the load centered and within the confirmed operating condition, and use the specified securing method when parking it. Would you like to retrofit your container with casters? Tell us your floor conditions and the loadso we can match the caster configuration and provide the stacking prohibition or stacking approval for the actual use.
