Caster-Fitted Wire Containers Are Not Automatically Rated for Static Stacking

Adding casters to a Stbox wire mesh container changes the operating system of the unit. A fixed container transfers load through its designed base and stacking feet. A caster-fitted container transfers load through a small number of wheel contact points, introduces rolling and braking forces, and places the load higher above the floor. That is why a wheeled wire mesh container must not be treated as the same static stackable crate by default.

The short answer is simple: do not stack a caster-fitted cage until the wheel configuration, load case, floor and stacking interface have been reviewed together. The Stbox image library shows both static stacking and wheeled variants, but the wheeled variant is a configuration option—not a standard approval for every use.

What changes when wheels go on a wire mesh container?

The first change is elevation. Casters place the cage body and its contents above the normal support plane. That can raise the combined center of gravity, especially when a heavy load is placed high or is not distributed evenly. The second change is load transfer: instead of four steel feet or the specified base structure sharing compression, the wheel set concentrates force at the mounting plates and floor contact patches.

Movement adds another difference. Starting, stopping, turning, thresholds and uneven floors create forces that do not exist in a stationary stack. A caster that appears suitable under a centered empty box may not be suitable for a full box, a sloped route or repeated supermarket and line-side handling. The wheel material, wheel size, mounting method, swivel arrangement and brake specification must therefore be selected against the actual route and load—not copied from the original static-container specification.

Can a caster-fitted Stbox still be stacked?

Only when the complete wheeled configuration has been specifically confirmed for stacking. The standard static arrangement relies on aligned steel feet and a stable top frame. The photograph below illustrates that static interface; it should not be read as approval to place a caster assembly on top of another cage.

Before stacking, confirm whether the wheels are removed, retracted, isolated from the compression path, or supported by a purpose-designed interface. Confirm the permitted empty and loaded conditions separately. A folded empty cage can have a different contact pattern and center of gravity from an assembled cage filled with parts. Unless the supplier has confirmed the exact configuration and operating rule, use the caster-fitted unit as a mobile container only and keep it off a static stack.

How should caster load and floor capacity be checked?

There is no universal wheel-group rating that can be safely assigned to every Stbox. The required rating must be confirmed from the total operating load, load distribution, number of effective load-bearing casters, movement frequency, surface condition, thresholds and braking or turning demands. Do not calculate a purchase decision by simply dividing total weight by four. Uneven loading and dynamic movement can make one wheel or mounting point carry more than its nominal share.

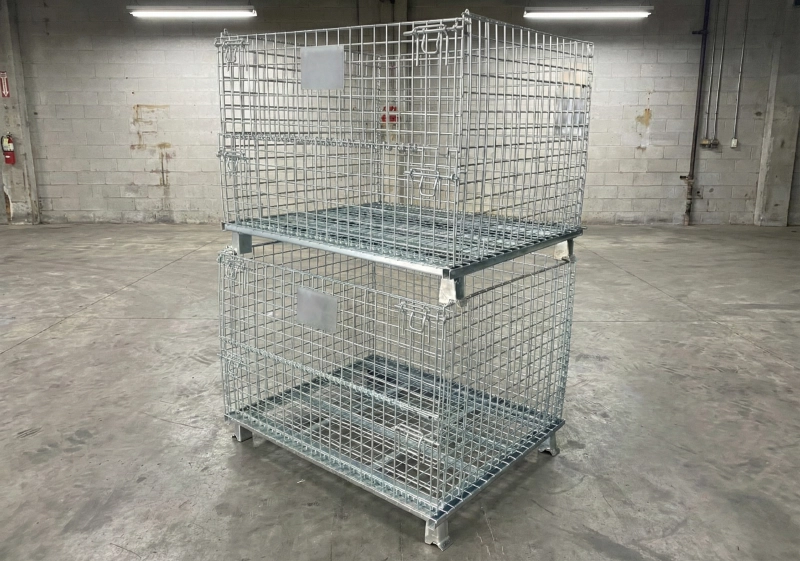

Floor review is equally important. Identify the slab or floor construction, surface finish, joints, drains, ramps and weak areas. Then check both distributed load and local point loading at each wheel. The concrete-floor image shows a static two-high storage situation; it does not provide a floor-capacity value for a wheeled cage. Your plant engineer or responsible building professional should confirm that the floor can accept the calculated contact pressure along the complete travel and parking route.

Pallet-jack compatibility is a separate question. The Stbox base can be handled with a pallet jack in the shown configuration, but that evidence does not confirm that the same cage is safe on casters, nor does it confirm stacking while wheels are fitted.

What to confirm before ordering caster wheels

• Operating load: provide empty cage weight, maximum contents, load distribution and whether the load can shift during movement; the wheel-group rating must then be confirmed for that case.
• Route and floor: describe concrete condition, joints, ramps, thresholds, slopes, debris and any sensitive floor finish so the wheel type and size are not selected by appearance alone.
• Parking and stacking rule: state whether the cage will remain mobile, be parked loaded, or return to static stacking; these are different approval conditions and must not be merged.
• Base interface: confirm mounting plates, reinforcement, wheel clearance and whether the original stacking feet remain the intended load path. The folded wheeled variant below is evidence of a special configuration, not a universal retrofit instruction.

Frequently asked questions

Do casters need brakes?

For line-side parking, loading, picking or supermarket distribution, a locking function is normally worth specifying so the cage can be restrained while people work around it. The pictured variant shows foot-operated brakes, but the exact brake type, lock behavior and suitability remain to be confirmed for the selected wheel set. A brake prevents or limits rolling; it does not make the cage approved for static stacking or replace a floor and stability review.

What is the safe rule if the configuration is not confirmed?

Keep the caster-fitted container on the floor, do not stack it, keep the load centered and within the confirmed operating condition, and use the specified restraint when parked. Want to fit wheels to your cage? Report your floor conditions and load so we can match the wheel configuration and provide the stacking prohibition or approval instructions for the actual use.
