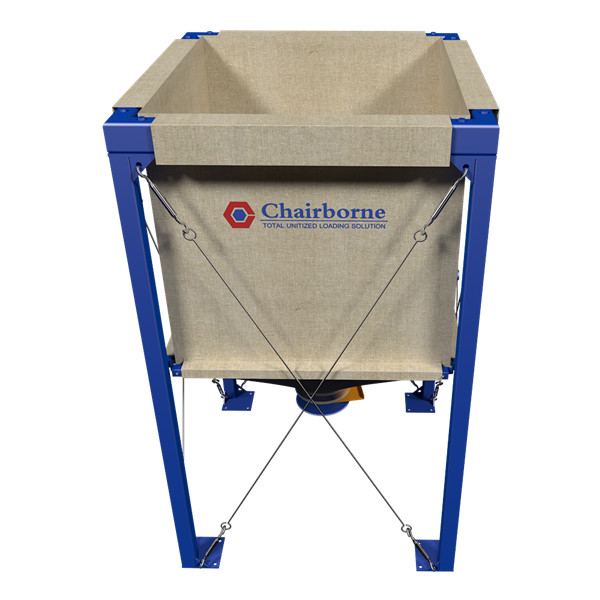

Flexible silo systems
The flexible silo system offers cost-effective storage and optimum space utilisation. Grain silos are the perfect solution for maintaining the freshness and nutritional value of sensitive natural products.
| Code |
mm Dimensions |
Weight |
Material |
Volume (m³) |
Capacity (t) |
Surface | |||||
| L | W | H | D | h | KG | Frame | silo | ||||
| 050003600 | 1830 | 1830 | 3140 | 400 | 2340 | 570 | Q235 | PP | 5 | 3 | BLUE powder coating |
| 050003601 | 2570 | 2570 | 3140 | 400 | 2340 | 820 | Q235 | PP | 10 | 6 | BLUE powder coating |
| 050003602 | 2630 | 2630 | 4100 | 400 | 3700 | 1100 | Q235 | PP | 15 | 9 | BLUE powder coating |
1.This product is a combination structure, which can be disassembled, which is convenient for storage and transportation;
2.The bottom of the column of this product is welded with a steel plate with holes, fixed with anchor bolts, the bottom is more stable;
3.There are diagonal steel wires around the product, the overall stability is greatly improved;
4.This product is equipped with a material level device, which can easily clarify the grain storage in the warehouse;
5.The surface treatment of this product adopts electrostatic spraying process, the coating is uniform and wear-resistant, and the anti-corrosion effect is good;
6.The product specifications can be customized as customer needs and site conditions;
7.This product is suitable for the storage of cereal crops;
8.This product can be used indoors and outdoors;
9.This product needs to cooperate with the grain suction machine；
