Metal Post Pallet | Derack Steel Pallet for Heavy-Duty Storage

Derack · Metal Post Pallet

Metal Post Pallet for Heavy-Duty Warehouse Storage

A metal post pallet is the right choice when your operation needs a stackable steel frame that can hold shape under load, keep goods separated, and move cleanly through warehouse, export, and returnable logistics cycles.

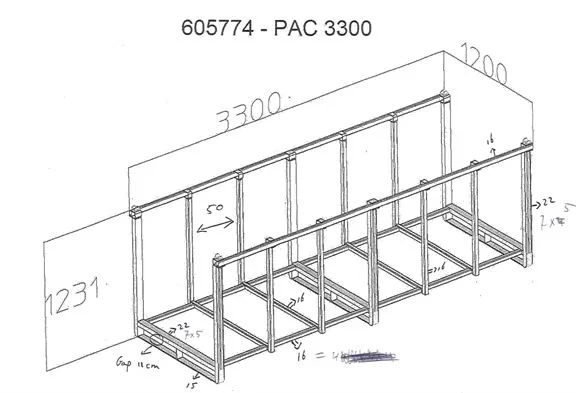

Hand-drawn steel pallet rack engineering drawing with 3300×1200×1231 mm dimensions and framed side rails

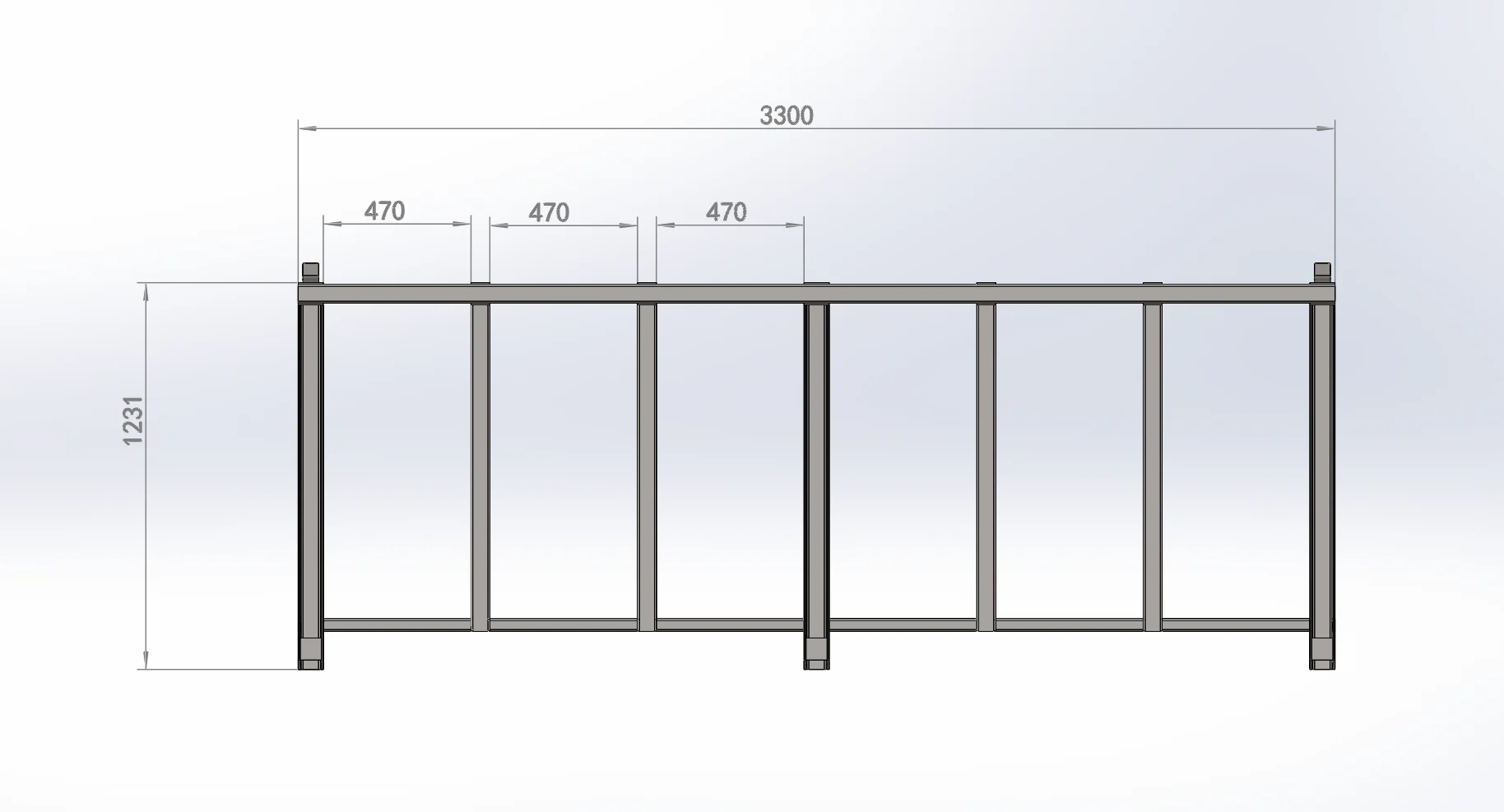

Overall size3300 × 1200 × 1231 mm
Main materialRectangular tube 60 × 40 × 3
Channel steel80 × 45
Plate parts6 mm steel plate and bent parts

Customer scenario

Warehouses, factories, and export operations often need a reusable pallet frame that can carry irregular loads, keep products in bays, and stack without losing alignment. When the load changes from batch to batch, a simple flat pallet is not enough.

A metal post pallet solves this by giving the load a rigid perimeter, upright support, and clear stacking points. The result is cleaner storage, easier handling, and fewer product shifts in transit.

Why the old method fails

  • Wooden pallets deform, chip, and lose repeatability under long-term circulation.
  • Loose stacking creates side movement, especially when goods are tall or uneven.
  • Open floor storage wastes cubic space and makes batch identification harder.
  • Weak support points raise the risk of load collapse during forklift handling.

Why derack fits the job

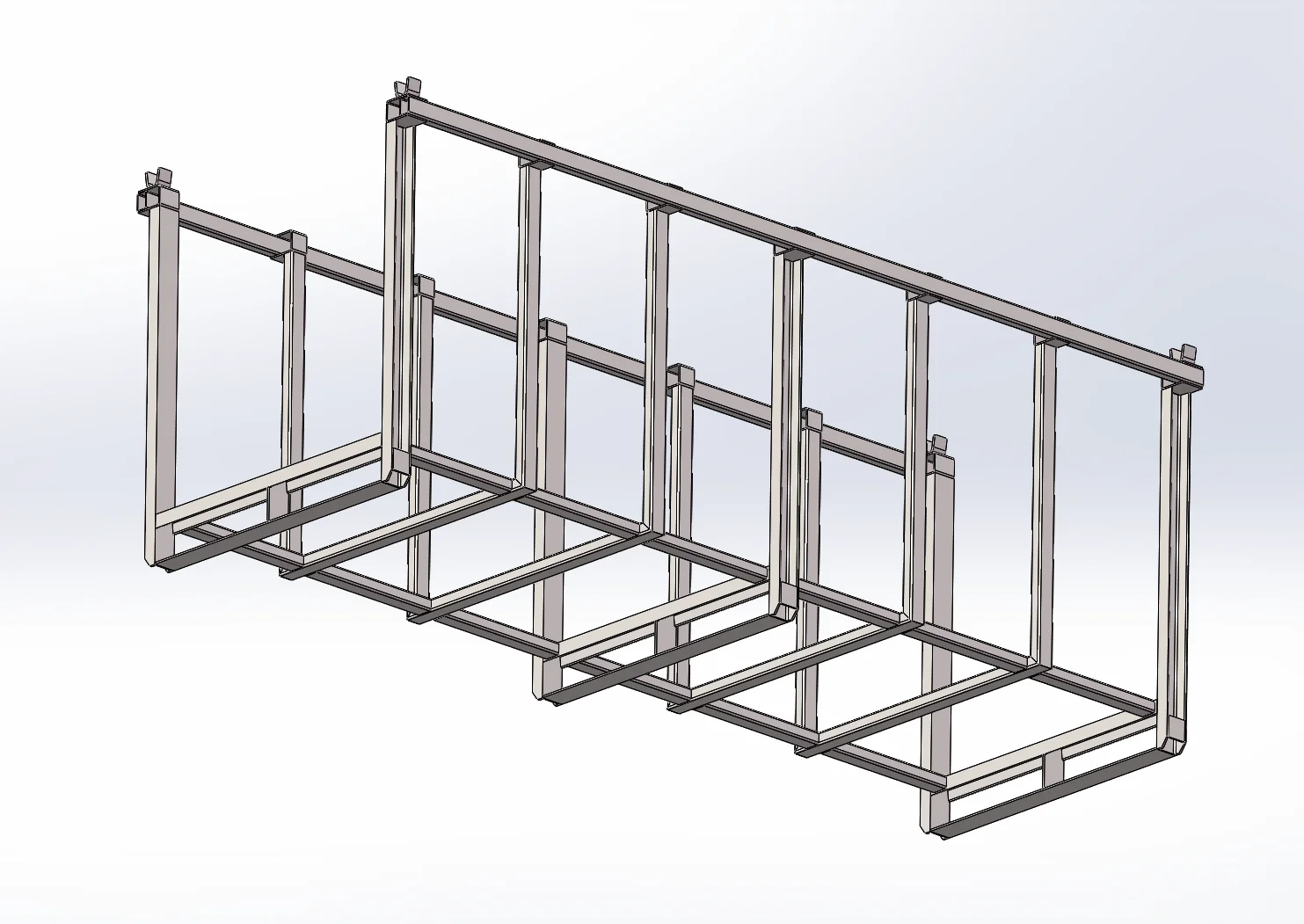

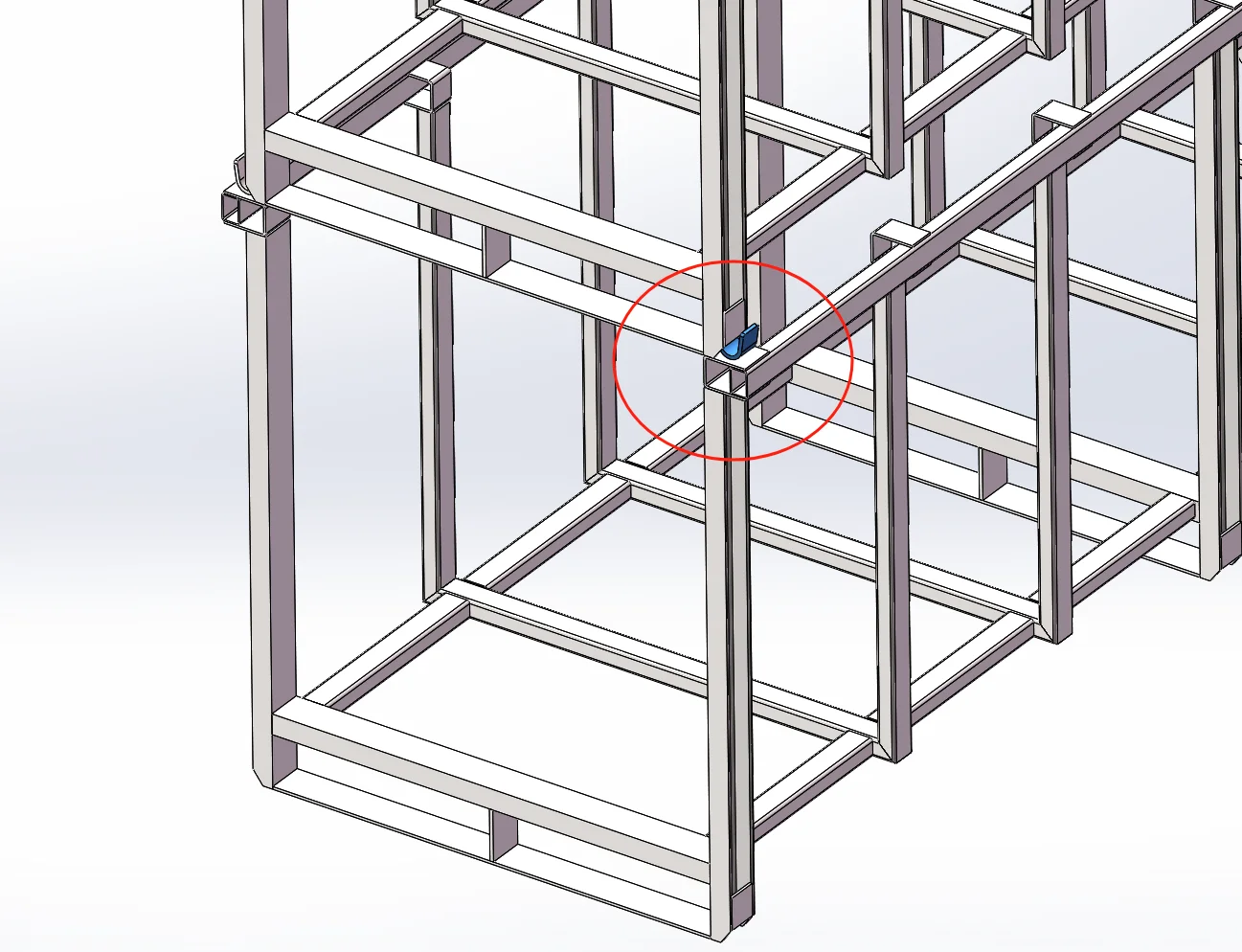

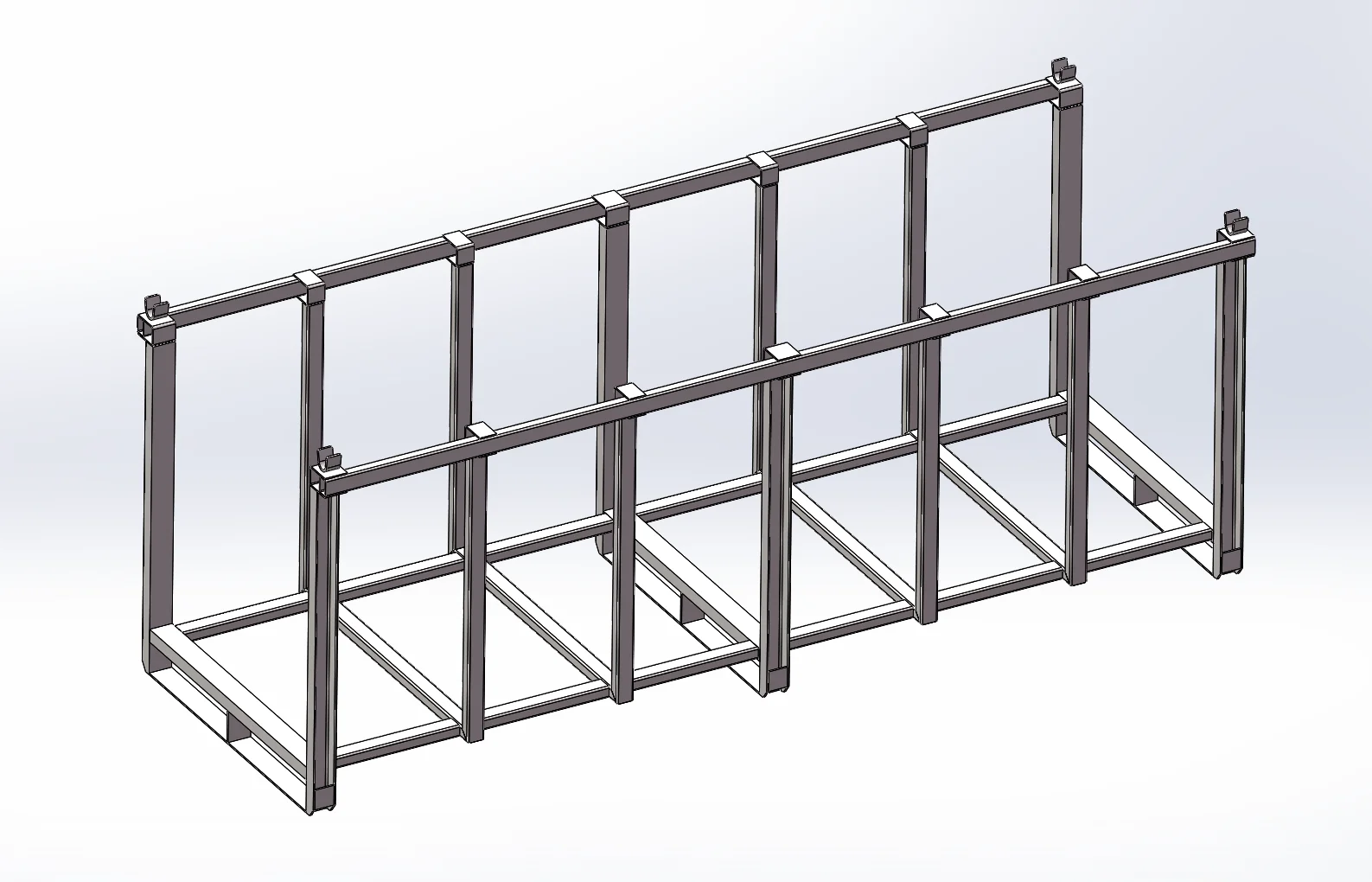

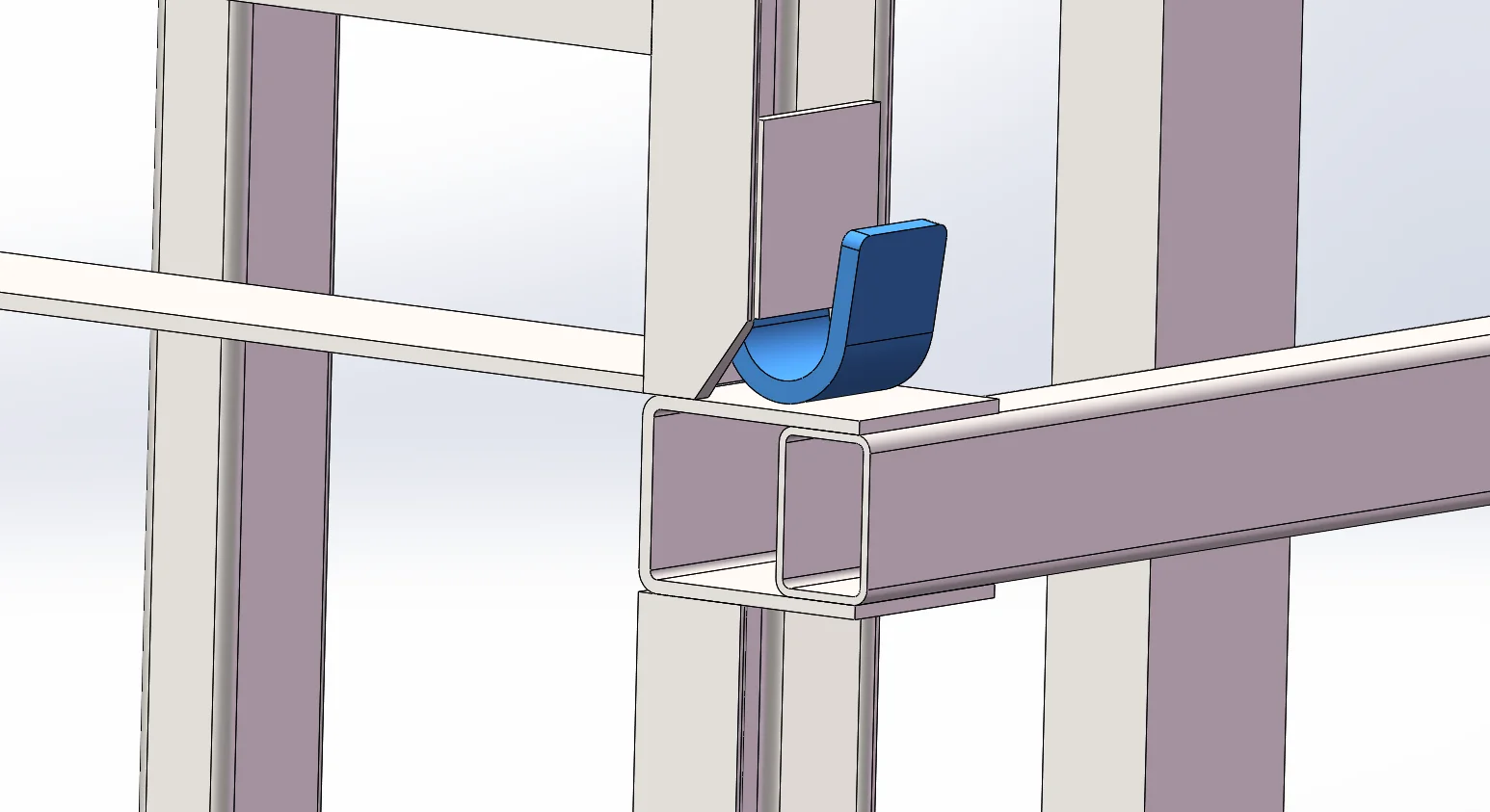

Derack is built as a welded steel frame with reinforced posts, braced base skids, and top hook / locator details that support stable stacking. It is designed for users who need a durable metal post pallet rather than a disposable transport base.

The frame geometry keeps the load in position, while the open structure makes it easier to inspect, label, and access goods from multiple sides. That is why it works well for warehouses, contract logistics, and internal circulation lines.

Structure and evidence

Result for the user

After switching to a metal post pallet, the load path becomes predictable, stacking becomes safer, and the same frame can be reused across internal storage, outbound logistics, and return cycles. That means fewer damaged goods, faster handling, and better space efficiency.

FAQ

Can this metal post pallet be customized?

Yes. Size, tube section, base layout, and stacking interface can be adjusted for your load and warehouse flow.

Is derack suitable for export or returnable use?

Yes. The welded steel structure and repeatable stacking points make it suitable for circulation between plants, warehouses, and shipment loops.

Need a metal post pallet for your load?

Send your load size, stack height, and handling method. We will recommend a derack structure and quotation plan based on your working scenario.
