A foldable steel stillage for motorcycle transit, staging and return logistics
Mytrack is a stackable metal stillage built around the motorcycle envelope, forklift handling and empty-rack return plan. In the 14922 motorcycle transport rack project, the posts can be lifted out and folded inward, reducing the recorded folded height to 355 mm.
For the recorded 14922 configuration, the outside size is 2,300 × 2,470 × 1,270 mm, with an inside length × width of 2,116 × 2,410 mm, a recorded unit weight of 300 kg and a 100 mm forklift-entry height. These are project values, not a universal Mytrack size. Motorcycle wheel positioning, straps, contact protection and anti-tip control must be defined on the approved drawing for your model.
- Folded return height: 355 mm recorded for the 14922 project configuration.
- Post design: posts can be lifted out and folded inward for empty-rack recovery.
- Mechanical handling: the 14922 design records 100 mm forklift entry; operators must insert and lift evenly.
- Container planning: 32 racks per 40 ft high-cube container was recorded for the 14922 loading plan.
- Load boundary: 2 t is the 14922 customer requirement and concept reference, not a certified universal SWL.
Choose the stillage around the load and the return trip
14922 PROJECT REFERENCE
Motorcycle transport configuration
For motorcycle manufacturers, exporters and distributors that need a repeatable staging and shipping unit. The recorded concept combines a defined inner envelope with fold-down posts to support loaded use and compact empty returns.
WAREHOUSE HANDLING
Stackable metal stillage for plant logistics
For boxed goods, industrial parts and other loads that need a forklift-ready, vertically stackable handling unit. Base style, post arrangement, usable height and load path must be matched to the cargo and stacking plan.
ENGINEERING REVIEW
Special-cargo and accessory assessment
Wheel slots, tie-down points, rubber cushioning, side access, casters, lifting points or other restraints may be assessed when the cargo requires them. They are not included as standard Mytrack features unless shown on the approved project drawing.
Designed for the full cycle, not only the loaded leg
Position the motorcycle around its envelope
The recorded 14922 inside length and width create a starting point for fit review. Wheel positioning, body clearance and restraint details still need to be confirmed for the exact motorcycle.
Fold the empty rack for return planning
Posts are recorded as removable and inward-folding on the motorcycle project. The 355 mm folded height is tied to that project configuration and its measurement basis.
Use forklift-ready unit handling
A 100 mm forklift-entry height is recorded for 14922. Forklift capacity, fork dimensions, entry direction, lift speed and turning space must be checked before use.
Separate project facts from load certification
The 2 t figure is a customer requirement and visual concept reference. Final safe working load, stacking permission and test documents require approved engineering data.
A practical route to a motorcycle shipping rack
Share the load data
Send motorcycle length, width, height, wheelbase, tyre details, weight, centre of gravity, contact points and annual purchasing volume.
Define the handling cycle
Confirm staging, road or container transport, forklift model, entry direction, return frequency, stacking height and whether loaded stacking is required.
Review the project drawing
Set the base, posts, wheel positioning, tie-down and protective details. Confirm load cases, dimensions, folded height and the container loading arrangement.
Confirm the supply scope
Agree quantity, packaging, inspection documents, testing requirements and production timing before the order is released.
Can Mytrack work for my motorcycle programme?
Can Mytrack fit my motorcycle?
The 14922 project records an inside length × width of 2,116 × 2,410 mm, but it does not provide a confirmed internal height or a universal motorcycle fixture. Fit is assessed from your exact motorcycle envelope, wheelbase, centre of gravity and restraint requirements. The wheel positioning and anti-tip method must follow the approved drawing and engineering confirmation.
How high is the rack when folded?
The recorded folded height for the 14922 motorcycle transport rack is 355 mm. The posts are lifted out and folded inward. This figure is project-specific, so the final measurement should be confirmed against the approved drawing and production configuration.
How many racks fit in a container?
For the 14922 configuration, the recorded plan is 32 racks in a 40 ft high-cube container. Eight racks together were recorded at 2,470 × 2,300 × 2,560 mm. Actual loading depends on the final rack, folded state, packaging, securing method and container dimensions. A separate 14652 project recorded 64 empty racks; that number must not be combined with 14922.
Is 2 tonnes enough?
Two tonnes is the 14922 customer requirement and a concept value visible in some product imagery. It is not a confirmed, certified safe working load for every Mytrack rack. Tell us whether the figure means evenly distributed static load, concentrated load, forklift handling load or a transit target. Final SWL, stacking conditions and testing must be confirmed with the approved drawing and engineering data.
What is included as standard?

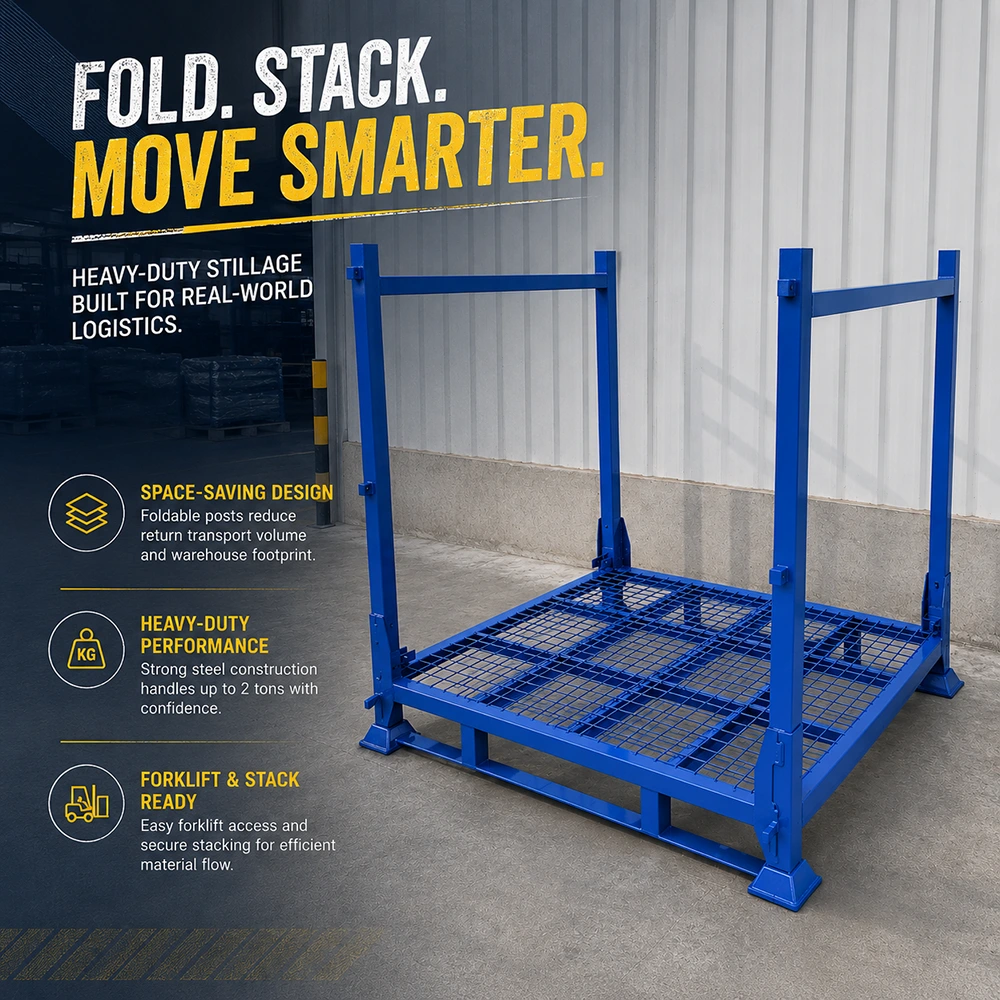

The base concept is a steel load platform with corner posts, stacking locations and forklift access. Caster wheels, wheel slots, tie-down points, rubber cushioning, side gates, lifting beams and other accessories are configuration-dependent. Images show different versions and must not be treated as a standard configuration list.
When is Mytrack not the right starting point?
Do not release a rack for a motorcycle or irregular load when the cargo envelope, centre of gravity, restraint method, forklift conditions or required load rating is unknown. A standard flat steel pallet may suit a regular load, while a fixed rack may suit permanent storage. Mytrack should be selected when repeatable handling, stackability and empty-rack return planning are part of the requirement.
