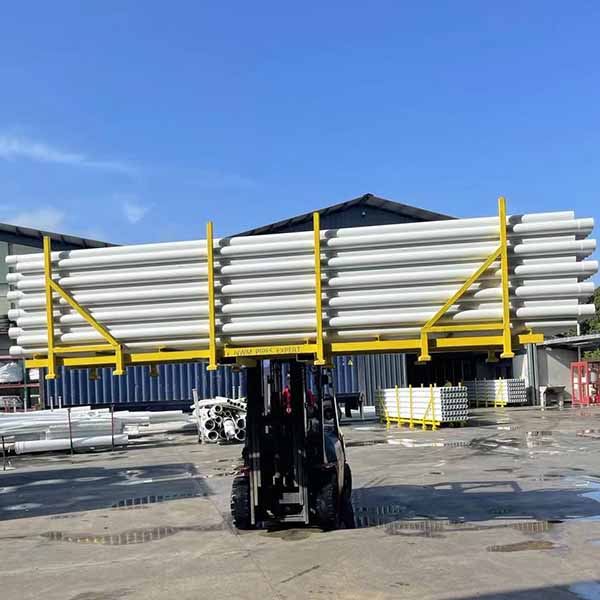

Pipe storage rack
Pipe stacking rack When no load can be stacked dislocation for store very save space.
| Dimensions | Weight | Surface | Capacity (t) | |||||
| L(mm) | W(mm) | H(mm) | KG | Dynamic | Static | |||
| 2300 | 1115 | 1300 | 58 | Powder coating | 1.5T | 4.5T | ||
| 2300 | 1215 | 1300 | 95.5 | Powder coating | 1.5T | 4.5T | ||
| 2300 | 1315 | 1300 | 61 | Powder coating | 1.5T | 4.5T | ||
| Customized as required | ||||||||
1.This product is applicable to the industry of plastic pipes (PVC, PE, PP pipes), rubber pipes, steel pipes the production and manufacturing , and the transportation industry etc. other industries ;
2.Overall fixed type structure，and fully welded processing, rugged and durable, maximum dynamic load up to 2500kg;.
3.The racks can be stacking after the goods loading, It has a maximum stack height of 6m, This maximizes the utilization of space;.
4.This type rack can be carried out staggered stacking under no-load state .This will facilitate transportation and storage, And 75% less space;.
5.The number of bottom transverse bracing can be adjusted according to the characteristics of the goods;.
6.When cargo is loaded and unloaded, Its planar degrees of freedom are completely limited; This prevents the tube frame placed on it from slipping off;
7.There are multiple options for surface treatment, such as electrostatic powder coating and cold galvanizing etc.Specifications can be customized according to user requirements;
Product drawings
