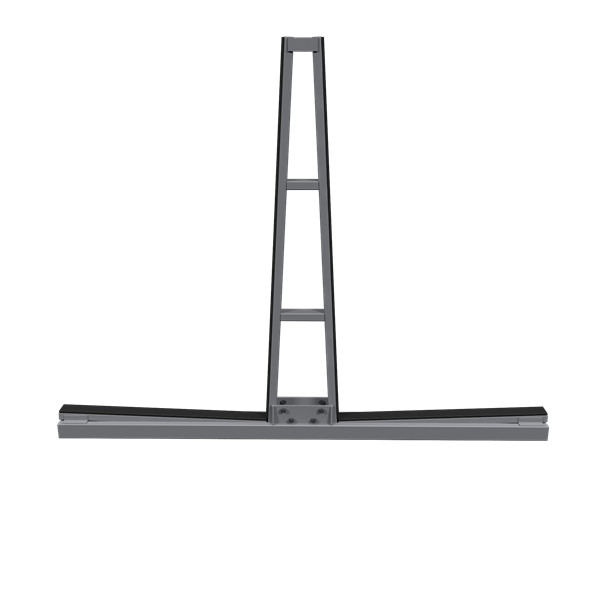

plate glass storage racks
sheet glass storageis used to store large-size fragile items such as original glass and slate and is widely used in glass manufacturing industry
|
Specifications |
3000*200*2400mm |
|
Load |
Static load 5000kg (single piece) |
|
Effective storage width × height |
1270×2280 |
|
Own weight |
137kg |
1.Cgrack is used to store large-size fragile items such as original glass and slate, and is widely used in glass manufacturing industry and slate industry;
2.Assemble the structure to reduce transportation costs;
3.Two are used as a set, or more than one can be used as a set, to achieve higher-demand bearer;
4.Electrostatic spraying anti-corrosion coating, anti-corrosion;
5.All-steel structure, pipe thickness ≥4mm, single piece maximum bearing capacity of 5000kg;
6. I-shaped rubber strip, which fits perfectly with C-shaped steel, and is easy to replace;
Product drawings
