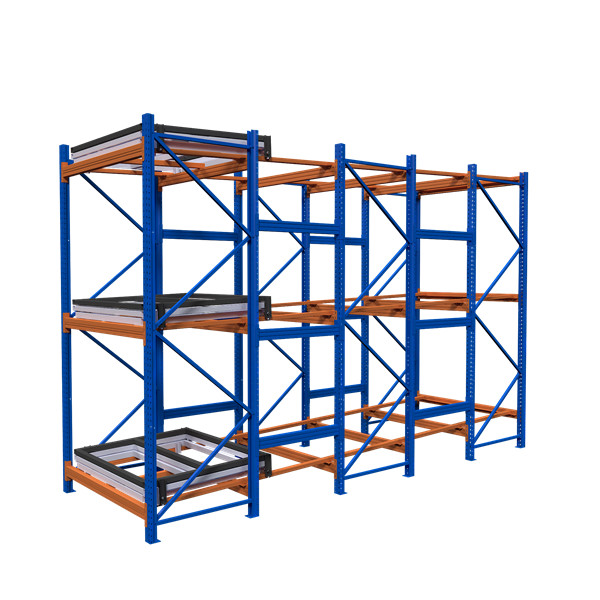

Push Back Pallet Racking
Pumped storage is also called after push type shelf is in the front and rear beam overlap between in multi-storey car from the outside to fold into the stack goods in the vehicle
| Inside A | Width W | Height H | Layers n | Columns M | Layer Loading | Surface treatment |
| mm | mm | mm | ||||
| 5300 | 1880 | 3500 | 4 | 3 | 1 | Powder Coating |
| Customized as required | ||||||
1.Pirack is used in warehouses with small storage space and low requirement on the picking rate of stored goods.
2.Large storage area and few channels can maximize the utilization of storage space;
3.The forklift does not need to travel through the passage when picking goods, which can avoid cargo damage during the storage and storage operation of the high-density storage shelves.
4.It can shorten the picking time, and ordinary forklifts can complete the storage operation without the need for special handling equipment;
5.The columns, beams and rails are soldered firmly and have strong load-bearing capacity;
6.The pallet car is equipped with rolling bearings. When the outer goods are taken away, the trolley inside can be slid to the outer side by gravity.
Product drawings
