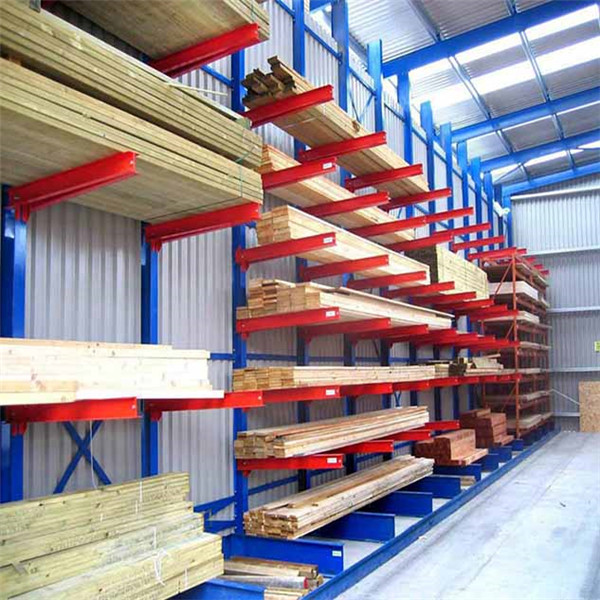

Sheet Metal And Tube Warehouse Storage Heavy Duty Roll-formed Cantilever Rack

Cantilever racks are designed for the safe and organised storage of long and heavy loads - ideal for timber or metal storage. Our cantilever rack systems are an effective and efficient alternative to conventional lighter weight storage solutions.

Request a quote
pipe storage racking
Product Parameter
Cantilever racks are designed for the safe and organised storage of long and heavy loads – ideal for timber or metal storage. Our cantilever rack systems are an effective and efficient alternative to conventional lighter weight storage solutions.

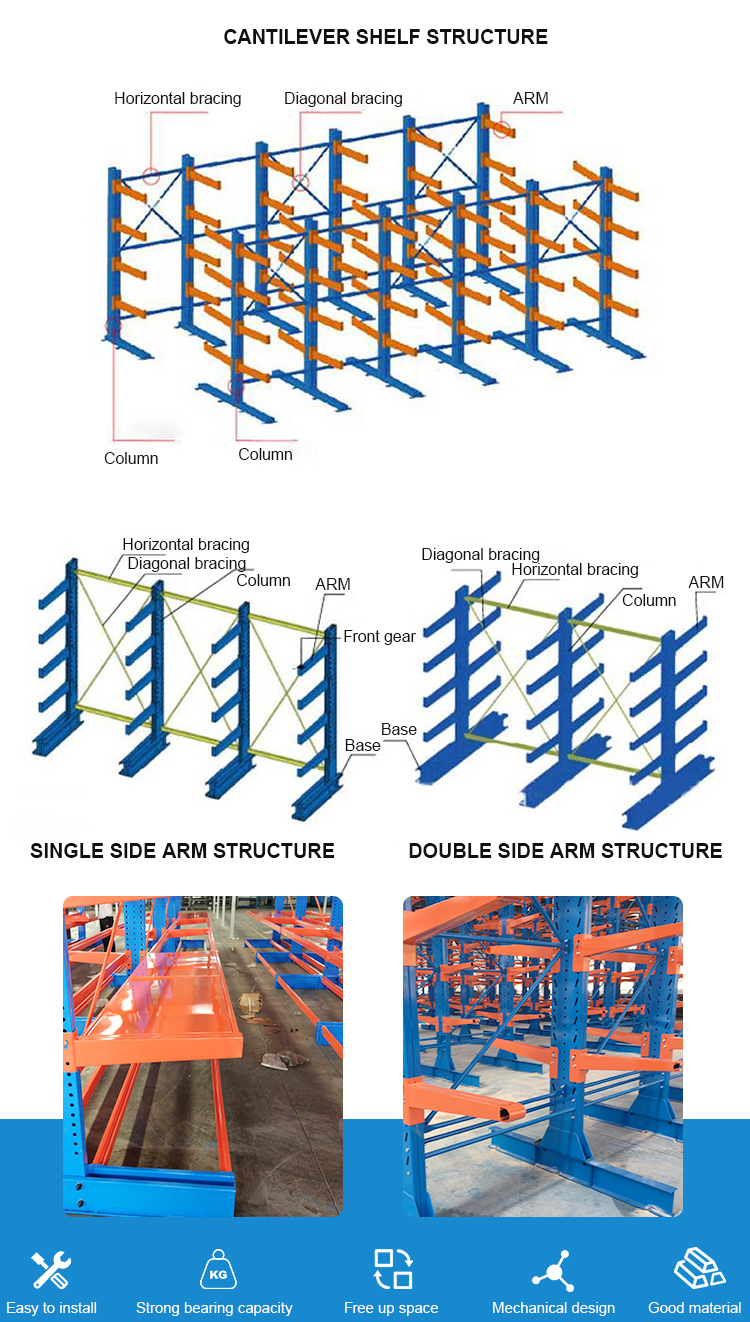

Structure of Cantilever Racking.
Column,Base,Arm,Bracings
Determinant of Cantilever Racking design
1. The weight of your goods
2. The dimension of your goods together with pallets ( Length Width Height )
3. The dimension of your warehouse
4. The path of the transportation
Advantages of Cantilever Racking
1).Cantilever racking system is optimal for the storage of long-shaped and bulky materials,profiles,pipe,timber and moulding etc;
2).Constructed of structural H steel and traditionsl roll-formed style both are avaliable
3).Single and double sided configuration available;
4).Different column and arm sizes available to suit various loading requirement;
5).Bolted arm and base connection;
6).Surface treatment:Spray-painting
7).Packing:Neutral paper box or in bulk or upon clients requirements
Our Services
You can send us your cad drawing we will give you a quick online quote .Or you just tell us your tridimensional dimension of your
warehouse we can design and draw drawings for you within 48 hours.
Product Details

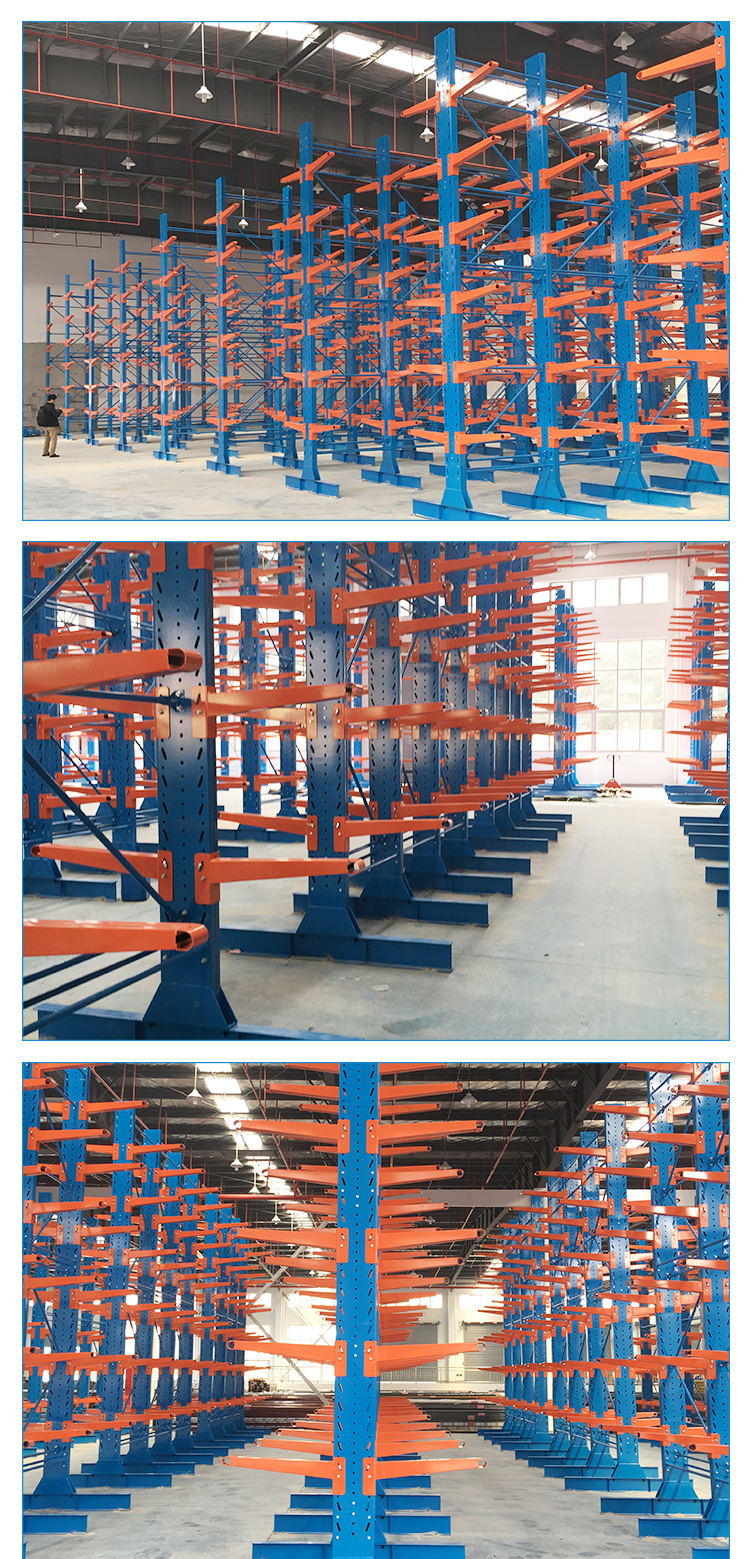

pipe storage racking
pipe storage racking
pipe storage racking

Product drawings

B2B Racking Structural Engineering Calculator

Input your structural guidelines below. Our math system calculates material deflection, stress bounds, and recommends optimal profiles.

Clear entry span between upright frames. Common: 2700mm, 3300mm.
Uniformly Distributed Load (UDL) per pair of beams.

Click Compute to calculate stress factors and display structural drawing recommendations.
