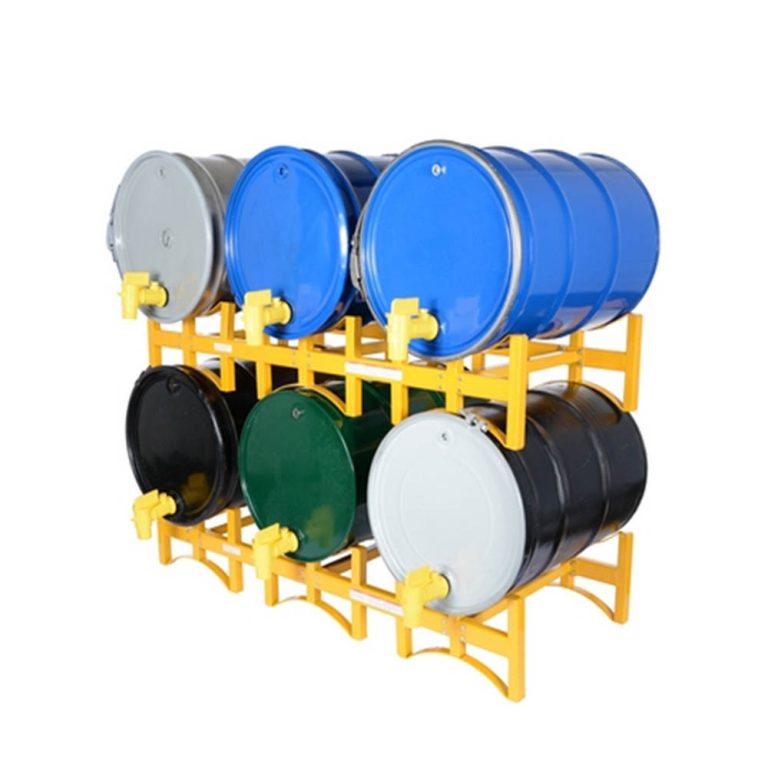

Stackable Horizontal Drum Storage Racks
The drum rack is mainly composed of two parts, namely the movable support at the bottom and the fixed storage rack at the upper part.
product description
Structure introduction

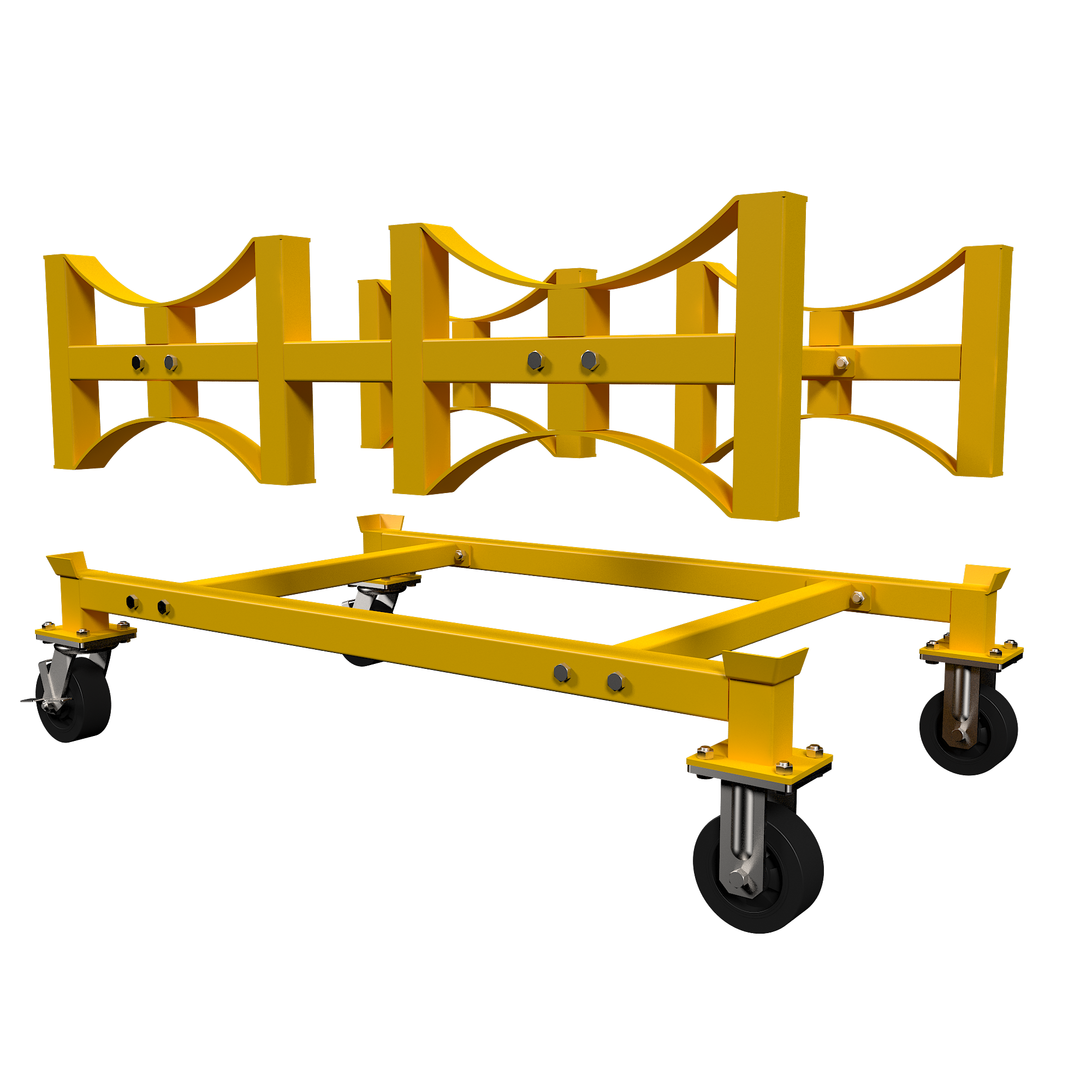

The drum rack is mainly composed of two parts, namely the movable support at the bottom and the fixed storage rack at the upper part. The two-part structure realizes the movement and stacking of the cylinder. The main material is a 50×2 square tube, and the contact point is the welding strength. To ensure reliability, there is a connecting beam hinge between the two frames, and the delivery is disassembled, saving transportation costs. The surface of the product is electrostatic sprayed. Generally, the brighter color is used, which is eye-catching and warning. It can also be selected according to the user Require.

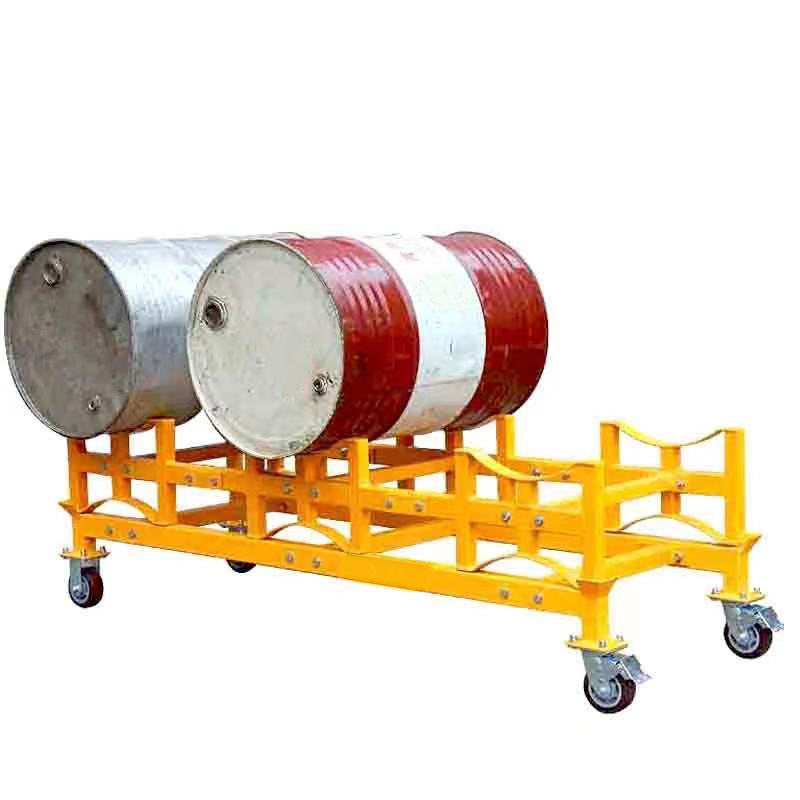

The movable roller frame adopts a combined structure, which is convenient for stacking storage and mutual conversion functions; simple structure, firm welding, and durable;

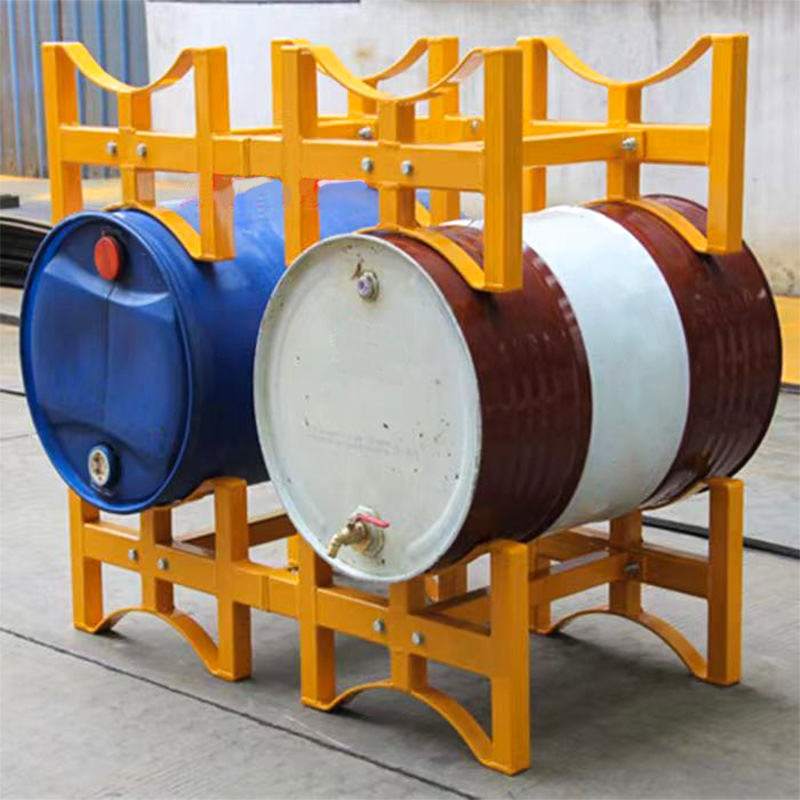

The product structure is simple, welded firmly, and durable; the standard size is used for 200L oil drums, other specifications can be customized;
Product drawings
