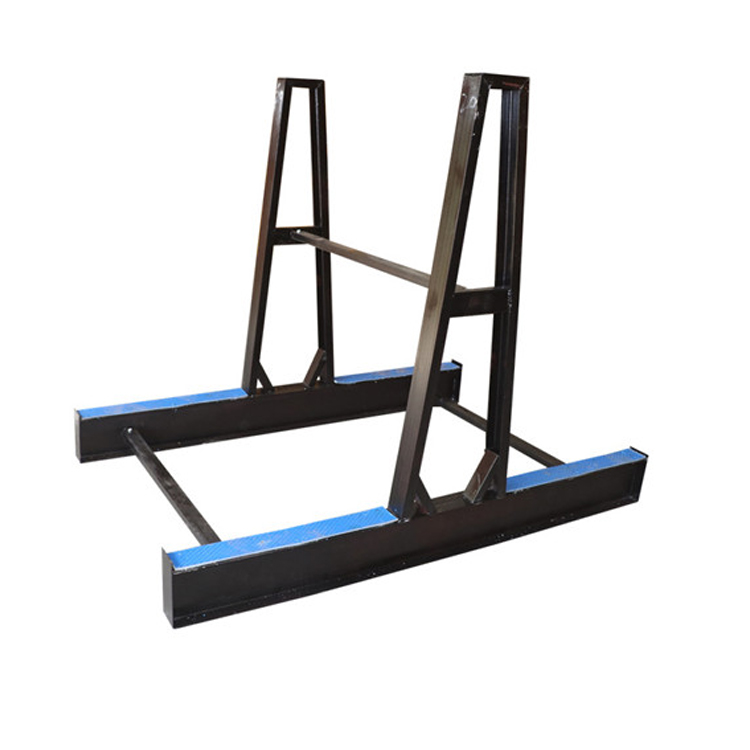

Stone Granite Marble Quartz Storage steel Stone Slab A frame Rack Vertical type

What Are The Product Details Model SLHAC-1300-G SLHAC-2000-G SLHAC-2700-G Dimensions(LWH) 1200*1300*1600mm 2000*1300*1600mm 2700*1300*1600mm Number of Pieces Placed 2P 4P 6P Total Load 10T 20T 30T Max Height For Slab 2200mm 2200mm 2200mm Net Weight 9

Request a quote
Stone Granite Marble Quartz Storage steel Stone Slab A frame Rack Vertical type
What Are The Product Details
Model
SLHAC-1300-G
SLHAC-2000-G
SLHAC-2700-G
Dimensions(L×W×H)
1200*1300*1600mm
2000*1300*1600mm
2700*1300*1600mm
Number of Pieces Placed
2P
4P
6P
Total Load
10T
20T
30T
Max Height For Slab
2200mm
2200mm
2200mm
Net Weight
92kg
112kg
135kg

Product drawings
