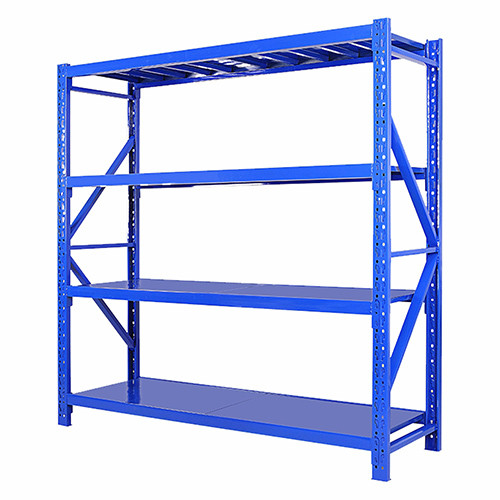

storage rack
Wire shelves provide ample storage.The welded shelving racks have beams for extra strength ans fit any storage needs.
| Single Set Length | Single Set Width | Overall Height | Layer | Material | Capacity | SurfaceTreatment |
| L ( mm ) | W ( mm ) | H（mm） | n | （kg） | Powder Coating | |
| 1500 | 600 | 2000 | 4 | Q235 | 400 | Blue/Orange |
| 1500 | 500 | 2000 | 4 | Q235 | 400 | Blue/Orange |
| 2000 | 500 | 2000 | 4 | Q235 | 400 | Blue/Orange |
| 2000 | 600 | 2000 | 4 | Q235 | 400 | Blue/Orange |
| Customized as required | ||||||
1.It is widely used in logistics, shopping malls, etc., where it is necessary to manually carry goods.
2.The column is designed with a butterfly hole,which can be used with the beam to facilitate installation and disassembly.
3.The concave rib design on the back of the laminate has excellent bending resistance.
4.The raw material is cold-formed high-quality cold-rolled steel sheet,which is high quality and impact-cesistant.
5.Environmentally friendly electrostatic spraying,brighter appearance adn healthier use.
6.The columns and beams are full of materials and the load is guaranteed.
7.Improve the utilization of storage space to facilitate cargo access and classification.
8.The layer spacing can be adjusted according to the needs.
9.The bottom of the column is provided with an enlarged foot plate to make the shelf more stable.
10.P Shape-beam,which is more perfect with the laminate.
Product drawings
