The telescopic cantilever rack is composed of columns, bases, telescopic arms, transverse tie rods, inclined tie rods, top beams, transmission boxes and other parts. The column is a thick-walled rectangular tube, the base is H-beam with a section size of 200×200, and the cantilever fixing and telescopic parts are also made of rectangular tubes. The base, the cantilever and the column are fixed by high-strength bolts. The telescopic arm can be shaken out through the corresponding joint on the transmission box, which is convenient for cargo storage and retrieval.

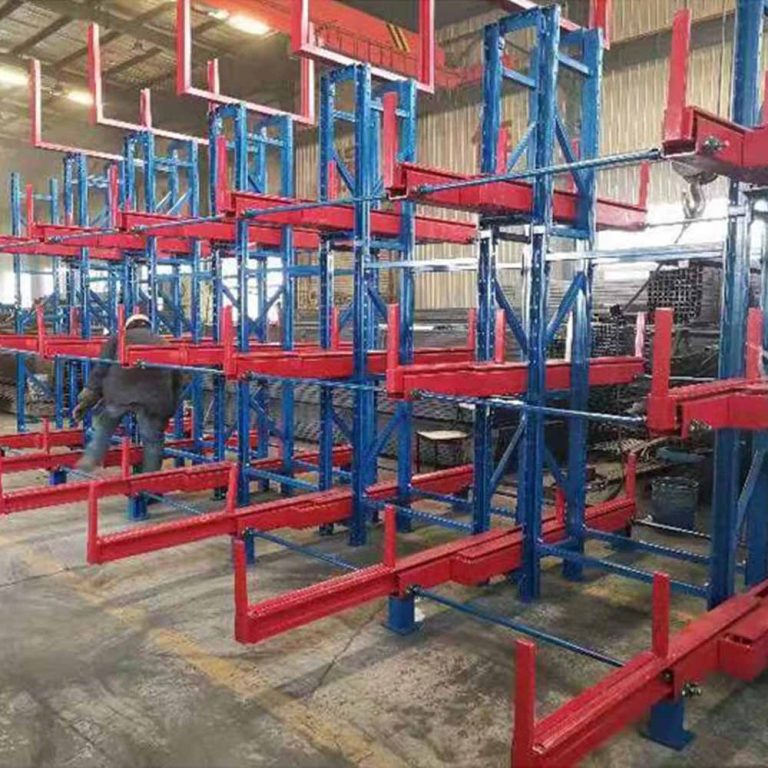

Warehouse Strip Tube Material Long Arm Storage Rack Manual Drive Cantilever
The telescopic cantilever rack is composed of columns, bases, telescopic arms, transverse tie rods, inclined tie rods, top beams, transmission boxes and other parts.
Prodcut Adavantages
Structure introduction

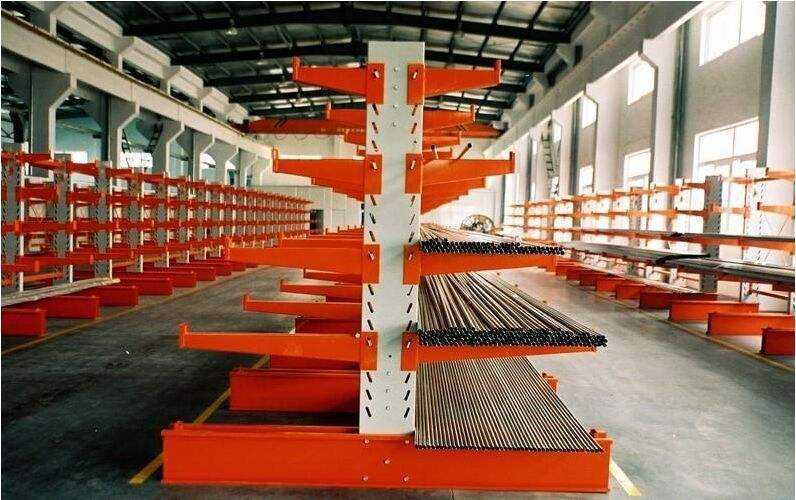

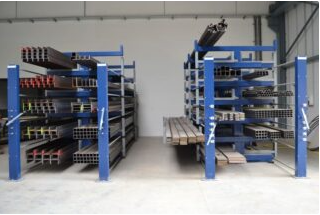

Traditional Cantilever Shelves
22 meters wide can put 2 rows of racks The fork driveway takes up a lot of area

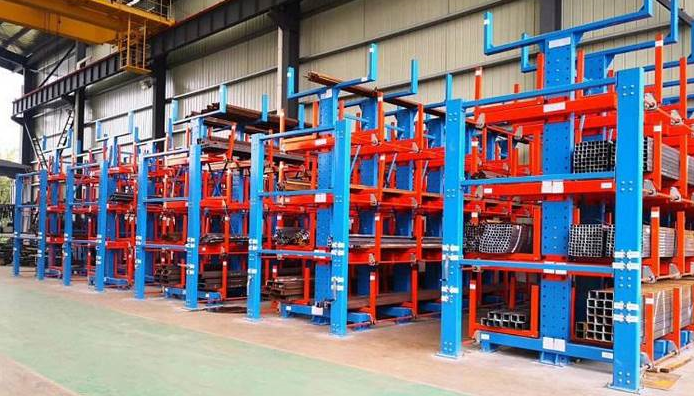

telescopic cantilever rack
22 meters wide can put 5 rows of shelves Telescopic with aerial crane for convenient storage and space saving

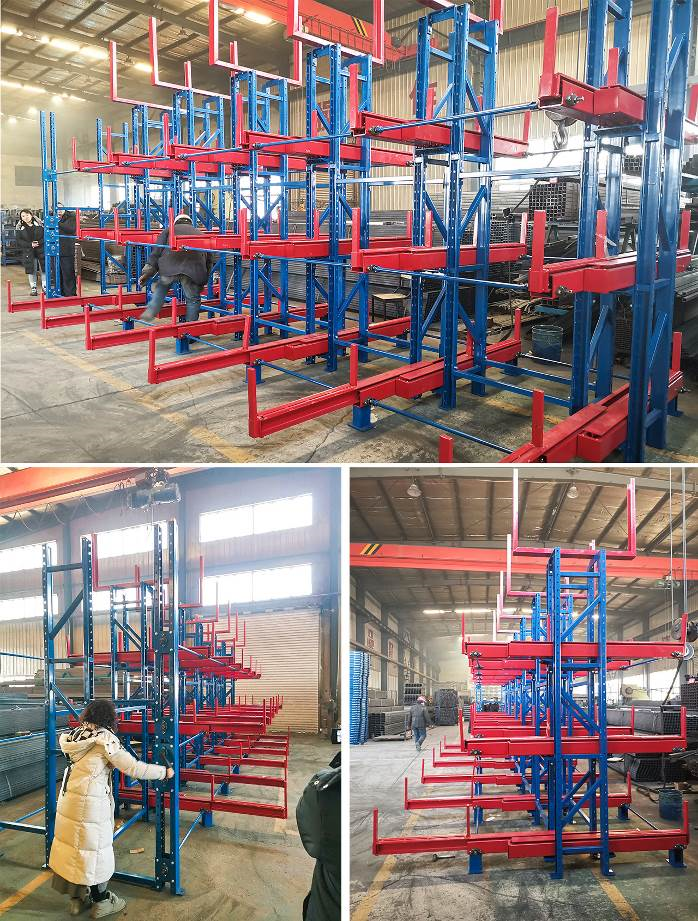

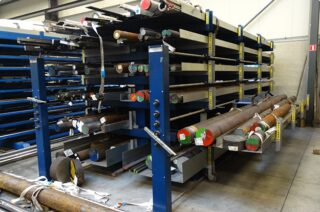

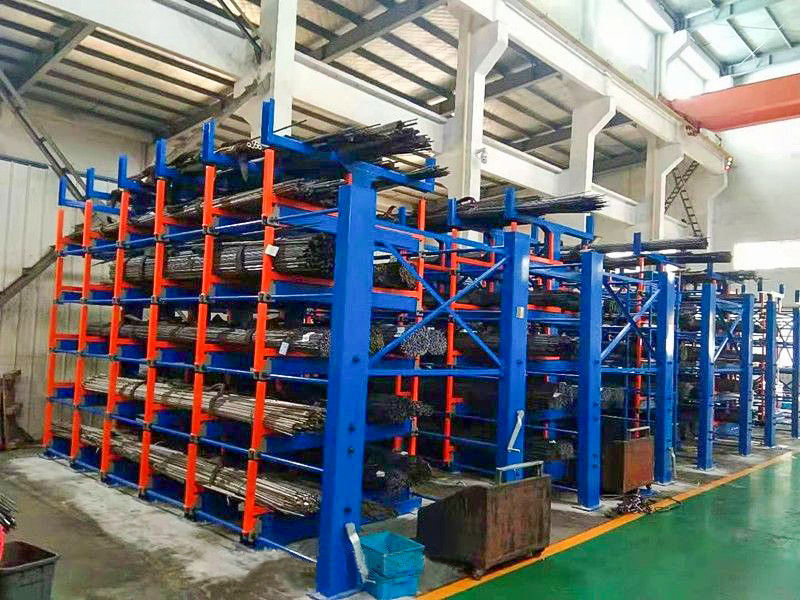

ROLL OUT CANTILEVER RACK

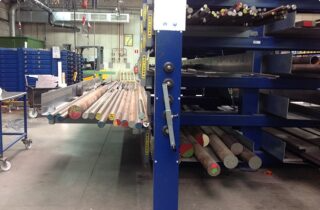

Efficient storage and transport of steel profiles, aluminum, stainless pipes or flat iron by moving them outside the rack
* 100% extendable arms
* Easy to roll out at any time
* A quick and safe way of working
* Easy to roll out at any time
* A quick and safe way of working
* Ideal for transport of profiles with a crane
* Compact storage system with a clear overview
* Compact storage system with a clear overview
* Only 1 person required
* Number of drawers and loading capacitiy can be determined by the customer
* Number of drawers and loading capacitiy can be determined by the customer

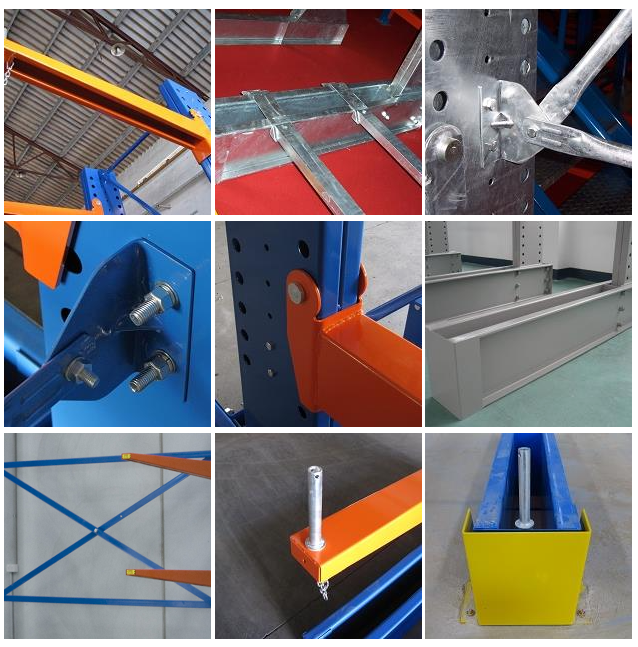

ACCESSORIES
Our products have been well received by customers
Product drawings
