54″ wide O.D. x 42″ Depth O.D. x 110″ Height 0.D.
New.
Four-way entry.
2200 lbs. capacity per rack.
Stackable 3 high.
13.8″ h. corner pocket / socket.
(2) end frames on 48″ sides with (2) bolt-on back beams on (1) 64″ side
Hardware included.
Fork Stirrups on all four sides.
Color: Any colors
Window and Door Transport Stacking Racks with Removable Side Frame
Our window racks are portable because they can be picked up by a forklift, transported throughout the warehouse, heck, they can even be loaded on a truck and delivered to another warehouse or the job site.
Window and Door Transport Stacking Racks with Removable Side Frame
Our window racks are portable because they can be picked up by a forklift, transported throughout the warehouse, heck, they can even be loaded on a truck and delivered to another warehouse or the job site.

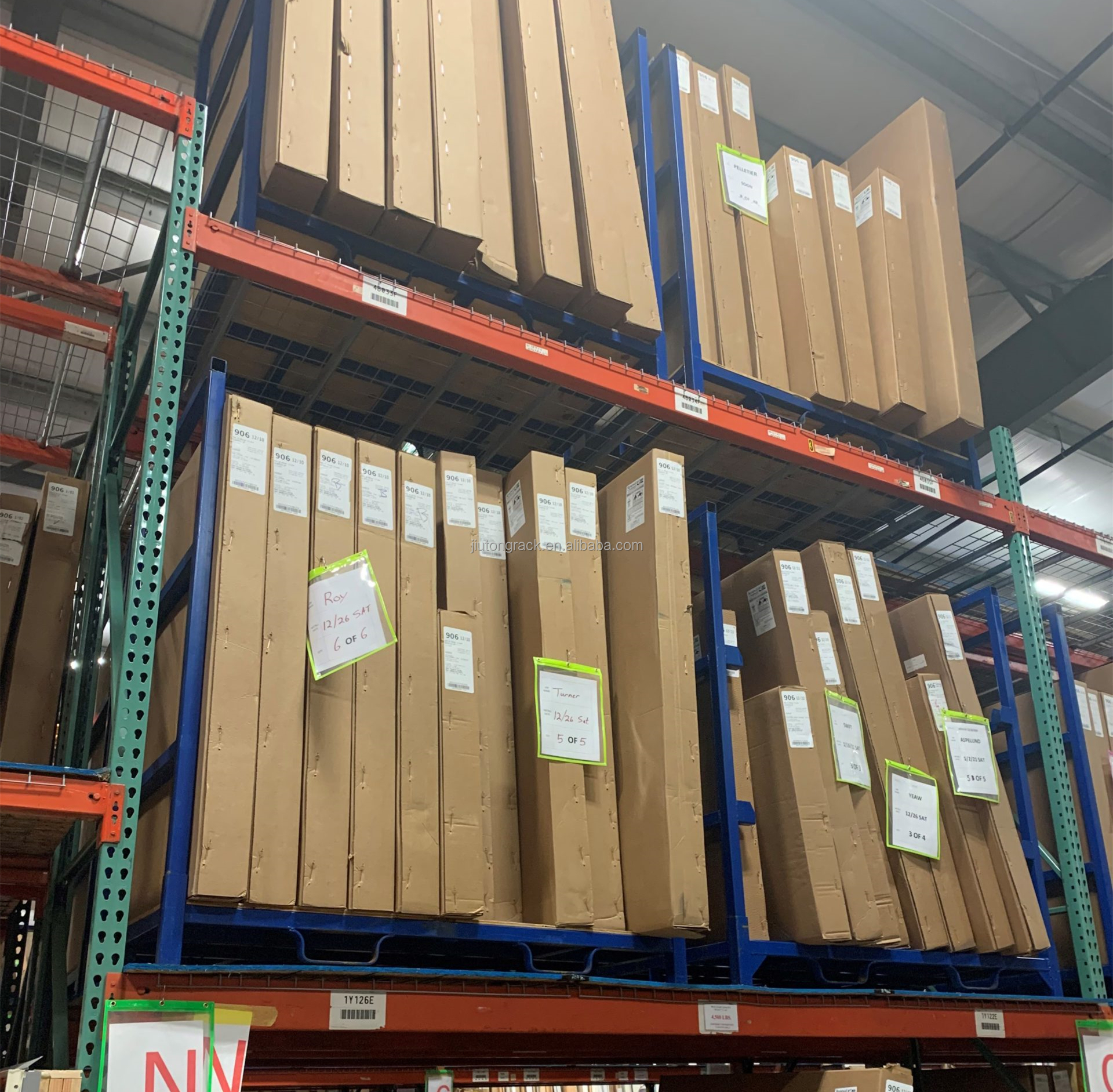

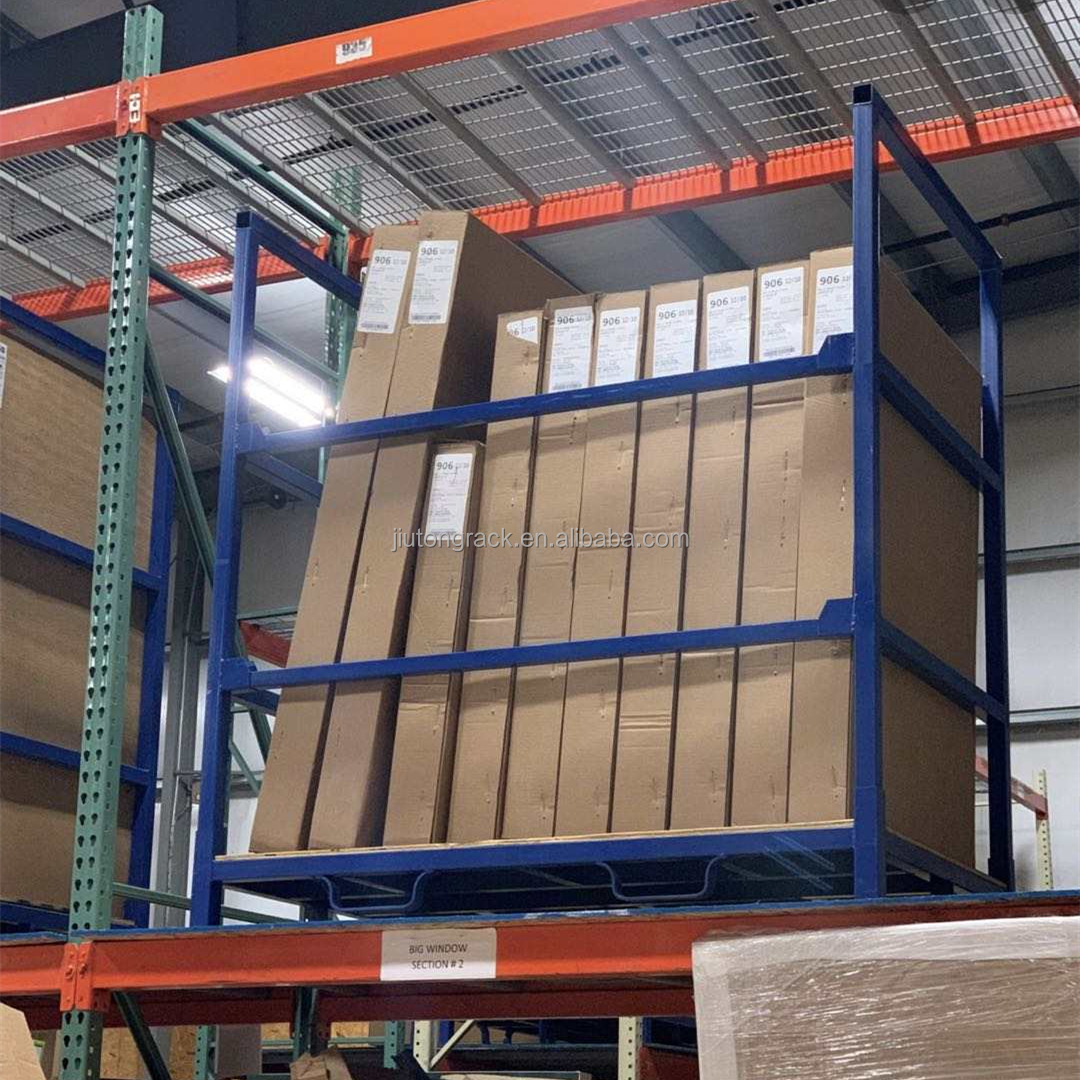

Portable window racks make excellent window shipping racks. They can help you cube out a trailer allowing you to more densely store windows in transit. The result is that you can transport more windows in a single truckload. And the window rack helps protect the windows and prevents damage in handling.
FEATURES AT A GLANCE
Rackable Window Transport Rack.
PRODUCT SPECIFICATIONS

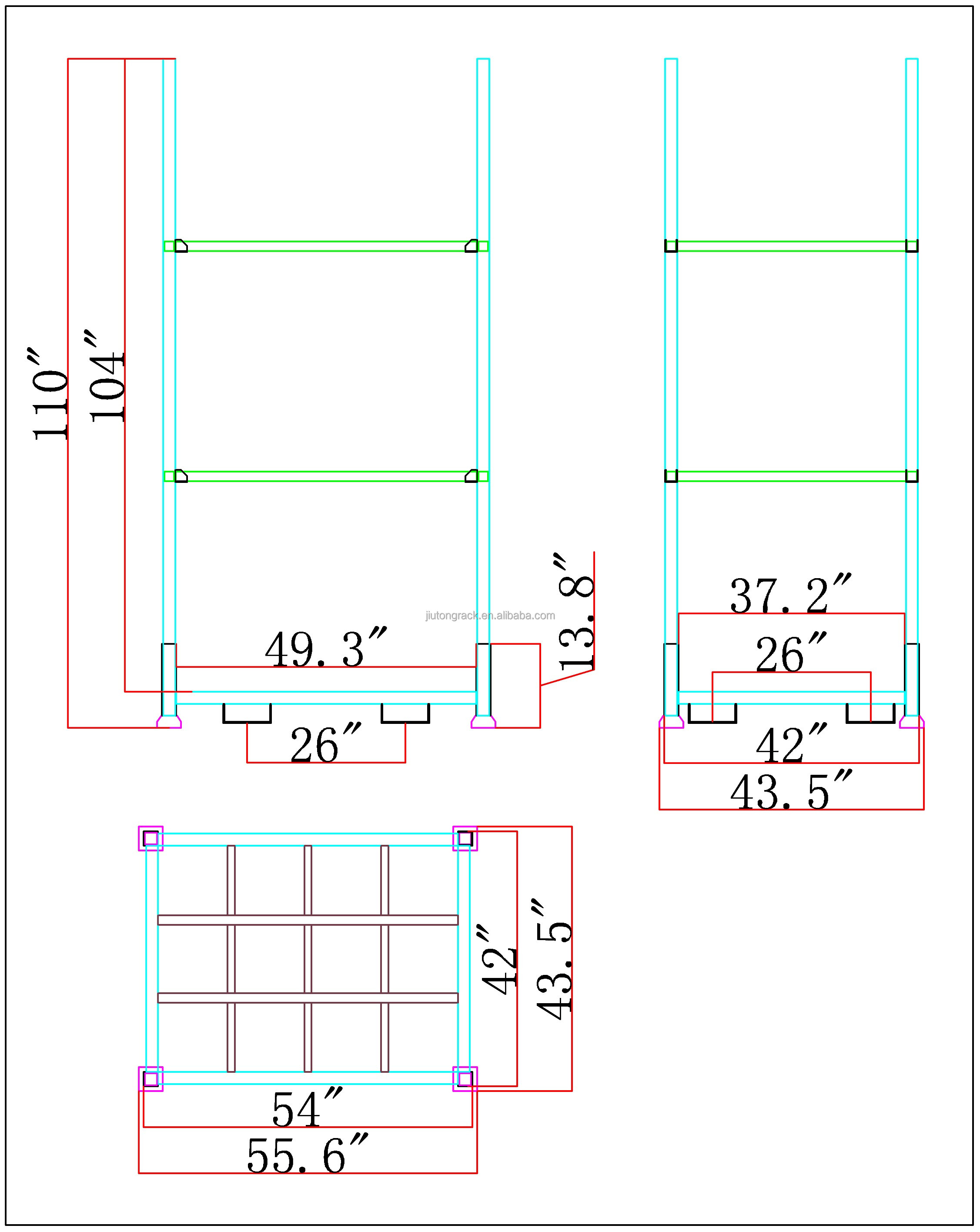

Product drawings
