Heavy Steel Pipe Mills
A logistics director or vice president of operations at a large steel tubular manufacturer watches every shift end the same way: super-long, large-diameter pipe comes off the line by the bundle and lands on the floor or on a light rack that was never built for the tonnage. Under multi-ton loads the floor piles deform, the bundles roll, and the aisle turns into a slip-and-strike hazard no safety audit will pass. Terack structural steel telescopic cantilever racks carry that weight on Q235 uprights with multi-ton rated arms, extend 100% to the overhead crane or heavy side-loader pick point, and stop the roll-off with end-stopped roller arms, engineered to the load code before the first bundle is set.
| Product | Structural Steel Telescopic / Roll-Out Cantilever Rack (Terack) |
|---|---|
| Load per arm | Multi-ton rated, up to 3000 kg per arm for heavy pipe |
| Structure | Q235 carbon steel uprights, braced base, bolted connections |
| Crane / side-loader | 100% extension to crane pick and side-loader aisle |
| Slip safety | Roller-guided arms with end stops, no roll-off |
| Compliance | Bay tonnage by structural calculation to load-safety codes |
A pipe mill out-produces its own storage
For the logistics lead at a large tubular manufacturer, output is the easy part and storage is the bottleneck. Seamless and welded line pipe leaves the finishing end in super-long, large-diameter bundles that weigh tonnes and arrive faster than any flat area can absorb. They get dropped where the truck or the aisle has room, the yard swallows the stock, and the next shift starts by hunting the heat number before it can even load a customer truck. The mill is not short of steel, it is short of a structure rated for the steel it already makes.
Light racks deform and bundles roll
The failure mode is predictable. A floor pile of heavy pipe settles and spreads, and a light cantilever rack that was specced for bar stock bends its arms under a bundle it was never meant to hold. Once a bundle shifts on a deflected arm, it rolls, and a rolling multi-ton pipe in a shared aisle is exactly the strike hazard a strict industrial safety standard is written to prevent. For a VP of operations weighing vendor capacity, the line item a cheap quote hides is the deformation and roll-off risk that shows up only after the first full bundle is loaded, and by then the audit is failed.
A structural steel rack is rated before it is loaded
Terack builds the rack the tonnage actually demands. The uprights are Q235 carbon steel with a braced, bolted base, and every arm is rated to a multi-ton working load and locked by structural calculation, not by a catalogue guess. The arm spacing is set to the pipe diameter and wall schedule, so a large-diameter bundle gets a level built for its weight instead of borrowing one sized for bar. For a logistics director comparing vendor strength, this is the proof point: a structure whose bay tonnage is documented to the load-safety code, supplied by an engineering division that returns the calculation with the quote instead of after the failure.
End-stopped arms and full extension end the roll-off

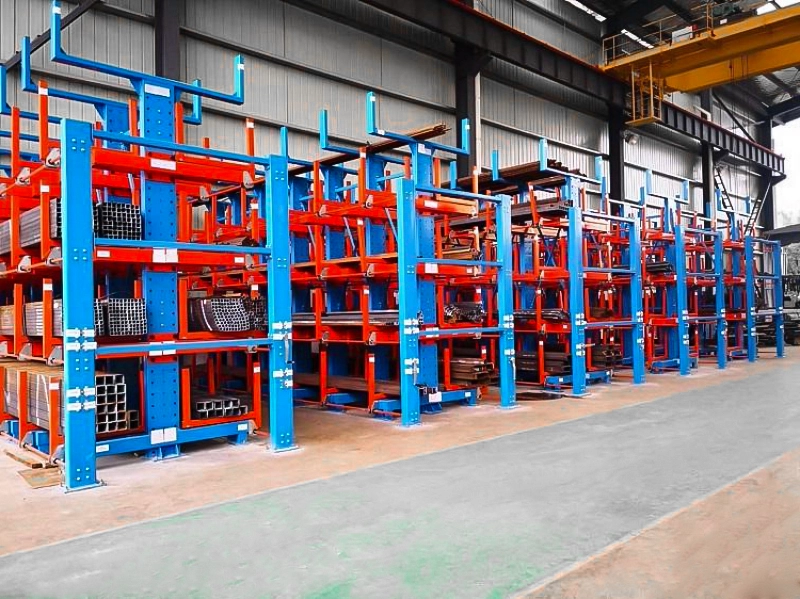

Structurally, the roller-guided arms extend 100% to a fixed overhead crane or heavy side-loader pick point, so a bundle is lifted straight from its level without dragging it across the aisle. Each arm carries an end stop, so a round bundle cannot roll off a deflected edge the way it does on a light rack, and the braced base holds the tonnage without the floor spread you see in a pile. The result for the mill is a yard that passes the safety audit: heavy pipe sits on rated, labeled levels, the crane and side-loader work fixed points, roll-off is designed out, and the aisle stays clear for people and trucks.

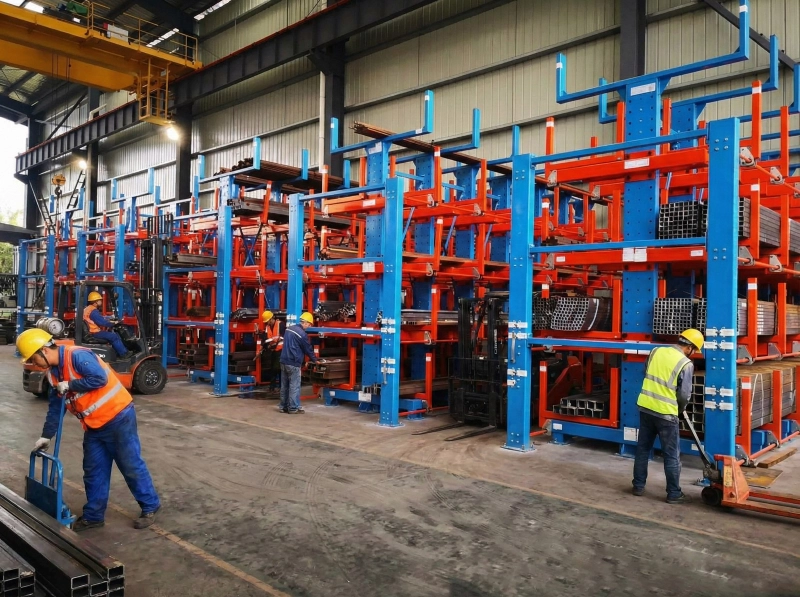

- Heavy long pipe stored on multi-ton rated, braced cantilever arms
- Crane or heavy side-loader picks each bundle at a fixed, slip-free point
Get the Terack Heavy Pipe Cantilever Specification Sheet
