steel pallet

If you have any question or need drawings or solutions, Please leave us a message.

Now

Dimensions (mm)			Weight	Structure	2-way/4-way	Surface	Capacity (t)
A	B	H	KG	Structure	2-way/4-way	Surface	Dynamic	Static
800	1200	157	27.95	Single-Side, Full	4-way	Powder Coating	2	4
1000	1200	157	31.27	Single-Side, Full	4-way	Powder Coating	2	4
1100	1100	157	30.28	Single-Side, Full	4-way	Powder Coating	2	4
800	1200	157	27.46	Single-Side, Full	4-way	Cold Galvanizing	2	4
1000	1200	157	30.27	Single-Side, Full	4-way	Cold Galvanizing	2	4
1100	1100	157	29.78	Single-Side, Full	4-way	Cold Galvanizing	2	4
800	1200	157	22.42	Single-Side, Half covering	4-way	Powder Coating	1.5	3
1000	1200	157	24.37	Single-Side, Half covering	4-way	Powder Coating	1.5	3
1100	1100	157	22.68	Single-Side, Half covering	4-way	Powder Coating	1.5	3
800	1200	157	22.04	Single-Side, Half covering	4-way	Cold Galvanizing	1.5	3
1000	1200	157	23.95	Single-Side, Half covering	4-way	Cold Galvanizing	1.5	3
1100	1100	157	22.28	Single-Side, Half covering	4-way	Cold Galvanizing	1.5	3
800	1200	184	33.55	Single-Side, One Side Full	4-way	Powder Coating	2	4
1000	1200	184	37.7	Single-Side, One Side Full	4-way	Powder Coating	2	4
1100	1100	184	36.95	Single-Side, One Side Full	4-way	Powder Coating	2	4
800	1200	184	32.99	Single-Side, One Side Full	4-way	Cold Galvanizing	2	4
1000	1200	184	37.07	Single-Side, One Side Full	4-way	Cold Galvanizing	2	4
1100	1100	184	36.31	Single-Side, One Side Full	4-way	Cold Galvanizing	2	4
800	1200	184	42.75	Single-Side, Full	4-way	Cold Galvanizing	2	4
1000	1200	184	49.28	Single-Side, Full	4-way	Cold Galvanizing	2	4
1100	1100	184	48.24	Single-Side, Full	4-way	Cold Galvanizing	2	4
Customized as required

Proudct Feature

1.The number of panels can be increased or decreased according to customer’s request.

2.Panel can be added to the bottom of the pallet according to actual loading products.

3.The pallet loading with goods can be stacked if the goods are without fear of pressure and with unitized packaging.

4.The pallet can be used on selective rack, trough type rack and gravity type rack. Both folklift and hand pallet truck are applicative.

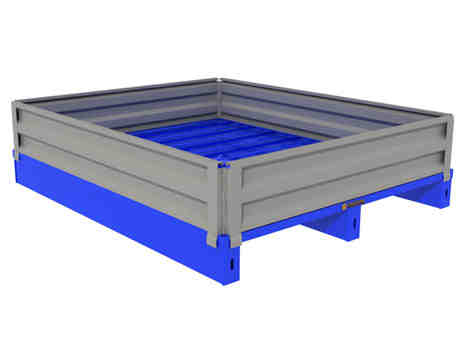

5.To load scattered goods, pallet collar can be installed to the pallet.

6.Customer’s logo can be added as required.

7.Both sides are processed with Angle wrapping edge, which enhances the surface effect of the pallet and reduces the risk of damage to the packaging.

8.In order to reduce the damage to the pallet caused by frequent forklift operation, rectangular tubes are arranged at both ends of the insertion direction to increase the service life.

9.The design of corrugated panel is conducive to improve the anti-skid effect and increase the load capacity of the panel but keep the weight light.

10.The 4-way insert design increase the space utilization and make it more convenient on operation.
