How Overhead Crane Access Works with Full-Extension Mold Drawers

What happens after the drawer is fully extended?

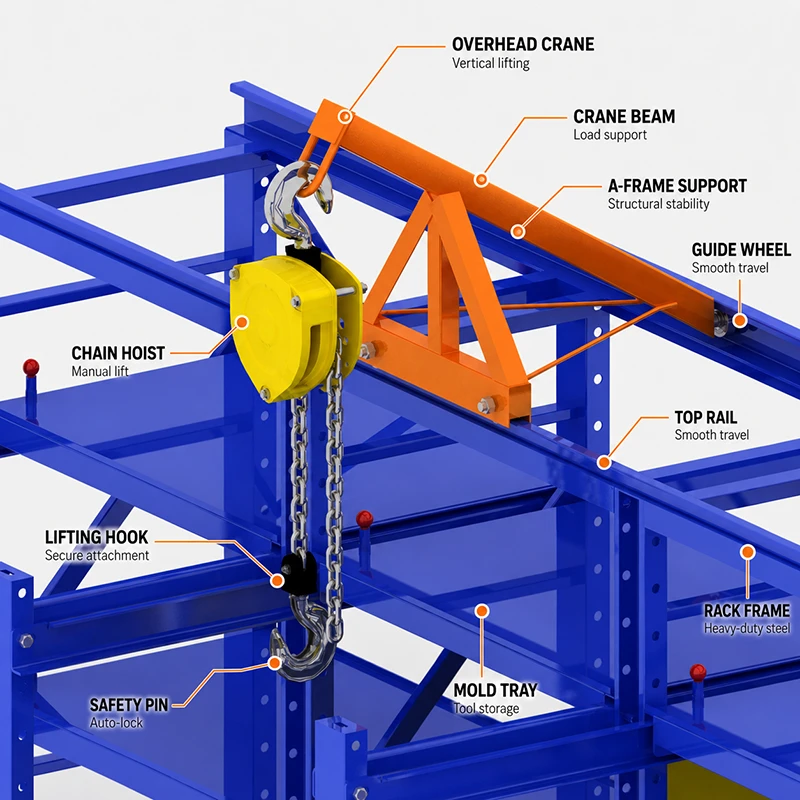

A full-extension drawer brings the mold out from the rack face so the lifting point can be aligned above it. The practical sequence is: isolate the bay, pull the drawer to its designed stop, engage the safety pin and mechanical limit controls, position the overhead crane or chain hoist over the mold, connect approved lifting gear, take up slack gradually, and confirm the mold is clear before moving vertically. Bearing-assisted guide rails change much of the drawer movement from sliding friction to rolling friction, but they do not remove the need to control the center-of-gravity shift.

Build the lifting path before you buy the rack

Check the crane runway, hook height, hoist travel, building clear height, rack top clearance, drawer projection and aisle width as one envelope. The hook must be able to approach the selected drawer without striking the rack, adjacent bays, lights, ducts or other equipment. The mold also needs a controlled destination path to the machine, maintenance bench or transport point. A rack supplier can size drawer dimensions and layer spacing around your inventory, but the available crane envelope and the actual lifting method must be confirmed at the site.

Why hardened flooring and anchoring are prerequisites

Full-extension storage creates a different load condition from a closed rack: the drawer and mold project forward, so the base and floor must resist the resulting forces. Erack is intended for hardened industrial floors and uses floor anchor bolts. The site review should confirm floor condition, anchor feasibility, levelness and the rack layout before installation. A soft, damaged or unverified floor is a stop condition—not a detail to solve after delivery. If the floor cannot safely accept the rack and anchors, choose a different storage plan until the building condition is corrected.

Where this setup fits—and where it does not

• Injection mold rooms with a verified overhead crane or hoist route and hardened, anchorable floors.
• Stamping die and changeover areas where one drawer can be isolated and lifted vertically without crossing people or equipment.
• Mold maintenance and backup-tool storage where 0.5–3 tons per level and the selected drawer dimensions match the actual inventory after engineering review.
• Not a fit for sites without overhead lifting equipment, soft or unverified floors, or a lifting path that depends on dragging a loaded drawer sideways. Use controlled floor stacking or ordinary shelving only after its own load, access and safety limits are assessed.

Buyer questions before specifying an overhead crane mold rack

Can I use Erack without an overhead crane?

Not for the crane-assisted retrieval workflow described here. If the site has no overhead crane, chain hoist or equivalent approved lifting method, do not buy this configuration on the assumption that the mold can be safely handled by hand. Consider engineered floor storage or a conventional rack system matched to the mold weight and handling equipment instead.

What should I send for an initial fit check?

Send the workshop clear height, crane runway and hook travel, available aisle width, floor construction and anchor constraints, mold weights and dimensions, required number of layers, and the intended destination after lifting. These details allow the drawer size, layer spacing and access path to be checked before a quotation.

Submit your workshop clear height, crane and hoist information, floor condition, anchor constraints, and mold dimensions. We can return an initial fit conclusion and identify whether an Erack configuration is appropriate. For the rack structure and options, continue to the Erack product pages for full-extension drawer and heavy-duty mold storage details.
