A full mold drawer can be structurally suitable for a heavy die and still be uncomfortable to start moving. The first pull is where load, drawer alignment, bearing condition, and changeover pressure meet. If your team handles high-load dies repeatedly, the right question is not simply whether a mold rack can carry the die. It is whether the selected retrieval drive makes the first movement controlled, repeatable, and compatible with your lifting process.

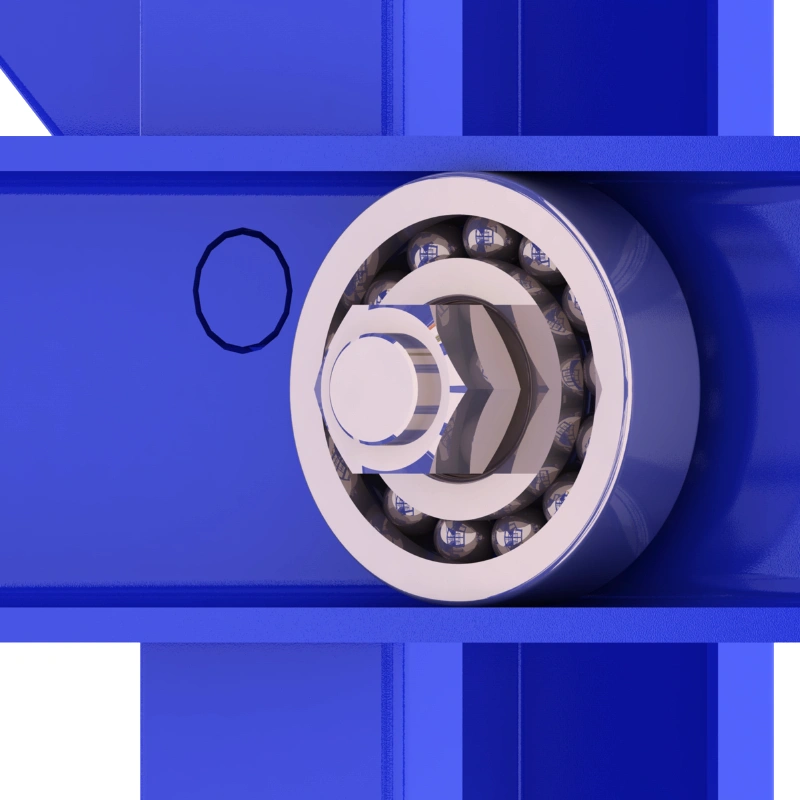

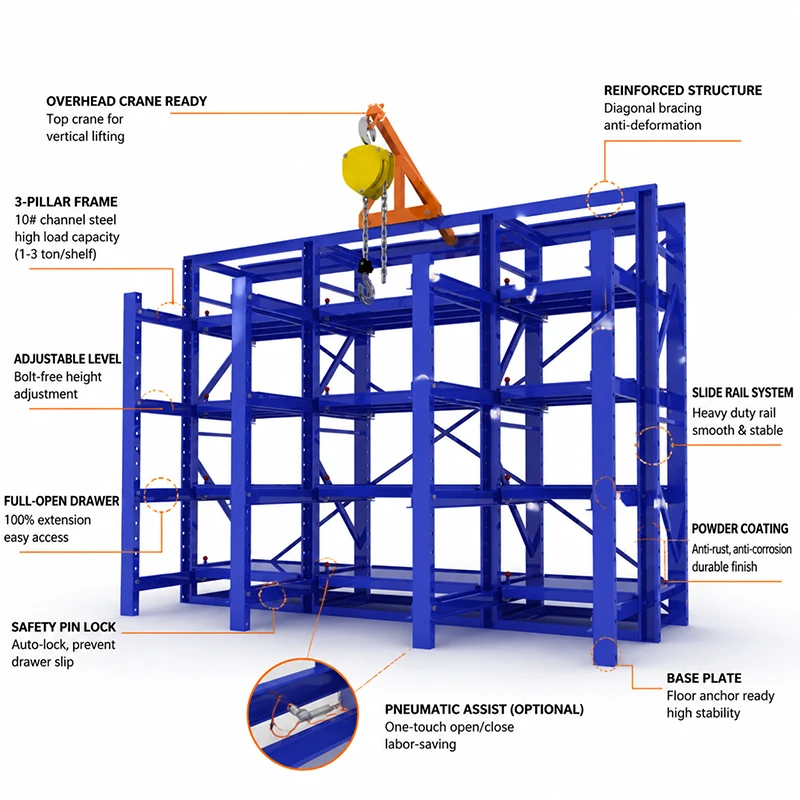

Erack is a heavy-duty roll-out mold rack with full-extension access, bearing-assisted guide rails, safety pins, mechanical travel limits, and crane-compatible access. Pneumatic assist is an option—not a requirement. It is most useful when initial drawer force and repeated changeover effort are limiting the work; it is unnecessary when the die is lighter, access is occasional, or a manual drawer and existing hoist already provide a controlled process.
What pneumatic assist actually changes
Pneumatic assist helps with the drawer’s initial movement and can make repeated pull-out cycles more consistent under a high working load. It does not change the rack’s rated storage capacity, replace the safety pin, or lift the mold from the drawer. After the drawer is extended and the die is accessible, the overhead crane, chain hoist, or electric hoist still performs the vertical lift. In practical terms, pneumatic assist addresses push-pull effort and changeover rhythm—not the complete mold-handling operation. Final drive selection should be checked against the actual die weight, drawer size, cycle frequency, available air supply, and the site’s lifting method.
Manual, pneumatic, or hoist: how to choose
Use a manual drawer when the die is within a manageable pull range, retrieval is occasional, and operators can move the drawer without forcing or sudden release. Choose pneumatic assist when the same high-load drawers are opened frequently, when initial pull effort is a recurring bottleneck, or when the team needs a more repeatable start to each changeover. Use a manual hoist or electric hoist when the main challenge is vertical lifting after the drawer is open, not horizontal drawer movement. These choices can also work together: a pneumatic drawer can reduce the initial horizontal effort while a crane or hoist handles the die. Do not select a drive by nominal rack capacity alone; submit the single-die weight, dimensions, center-of-gravity information, daily changeover count, and available utilities for a project-level recommendation.
When pneumatic is not necessary
Pneumatic assist may add complexity without improving the process when molds are light relative to the selected drawer, retrieval is infrequent, or the operator can open the drawer smoothly with a manual arrangement. It is also not a substitute for a suitable hardened floor, floor anchoring, clear crane access, safety pins, mechanical limits, and a defined lifting procedure. If the site has no compressed-air supply, or if the real bottleneck is crane positioning and vertical lifting, solve that constraint first. Erack can be configured around manual retrieval, pneumatic assistance, manual hoist support, or electric hoist support, but the safe choice depends on the complete handling path rather than one feature.
A quick fit check for your mold room
- High-load, high-frequency changeover: consider pneumatic assist when repeated initial pull effort is slowing the work or increasing operator strain.
- High-load, occasional retrieval: a manual drawer with a suitable overhead crane or hoist may be the more proportionate choice.

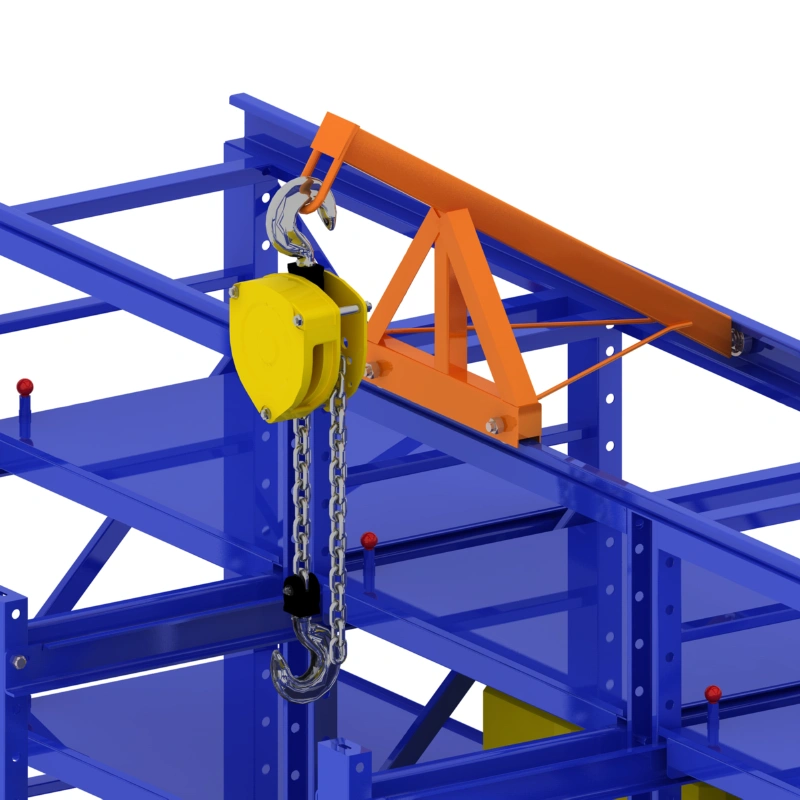

- Vertical-lift bottleneck: prioritize crane, chain-hoist, or electric-hoist access after full drawer extension; pneumatic assist alone will not solve it.
- No hardened floor, anchoring, overhead lifting path, or controlled safety procedure: resolve the site conditions before specifying the rack or its drive.
Pneumatic mold rack questions from engineers
Does pneumatic assist increase the mold rack’s load rating?
No. Pneumatic assist is a drawer-movement aid. The applicable level load remains within the configured Erack range of 0.5–3 tons per layer, subject to the final design and project verification. It does not replace safety pins, guide-rail limits, floor anchoring, or the required lifting equipment.
How should I decide between pneumatic assist and a hoist?
Separate the two motions. Pneumatic assist supports the initial horizontal pull-out of a loaded drawer. A manual or electric hoist supports vertical lifting once the die is accessible. If both motions create delays, a combined configuration may be appropriate; if only vertical lifting is difficult, improve the hoist and crane path instead.
