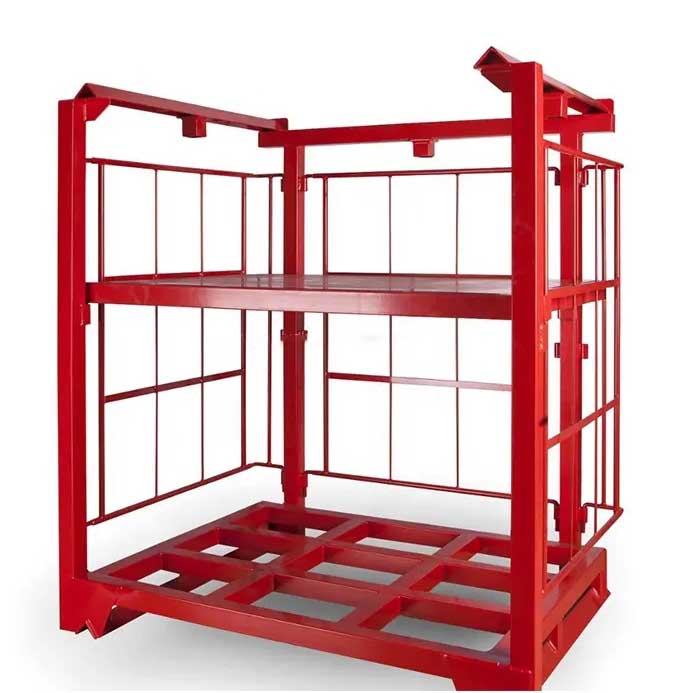

Nesting warehouse iron stackable pallet rack industry stacking frame
Nesting warehouse iron stackable pallet rack industry stacking frame
Nesting warehouse iron stackable pallet rack industry stacking frame
Exclusive Inverted Angles–Safe, secure and simple stacking
Specification of pallet rack frame
| Same design, different sizes | |||||
| Model No. | Exterior Dimension | Interior Dimension |
Loading capacity |
Stackability |
Total container |
| LxWxH(mm) | LxWxH(mm) | kg | |||
| HML-NR1302 | 1300x1200x1200 | 1200x1150x1000 | 1000 | 4 | 1×40'HQ |
| HML-NR1304 | 1300x1200x1400 | 1200x1150x1200 | 1000 | 4 | |
| HML-NR1402 | 1400x1200x1200 | 1300x1150x1000 | 1000 | 4 | 1×40'HQ |
| HML-NR1404 | 1400x1200x1400 | 1300x1150x1200 | 1000 | 4 | |
| HML-NR1502 | 1500x1200x1200 | 1400x1150x1000 | 1000 | 4 | 1×40'HQ |
| HML-NR1504 | 1500x1200x1400 | 1400x1150x1200 | 1000 | 4 | |
| HML-NR1602 | 1600x1200x1200 | 1500x1150x1000 | 1000 | 4 | 1×40'HQ |
| HML-NR1604 | 1600x1200x1400 | 1500x1150x1200 | 1000 | 4 | |
| Material | Mild steel Q235 | ||||
| Finish | Powder coating | ||||
| Available design | Detachable/undetachable | ||||
| Application area | Warehouse, logistic, recycling, etc. | ||||
| Remark | Customized or OEM support | ||||
| Key features |
1. Safe, secure, and simple stacking 2. Increased handling and storage flexibility 3. By positioning the bottom angles of the top rack over the stacking tubes of the unit below, the Nestainer rack can be guided into its stacked position for full column-to-column loading |
||||
Application of pallet rack frame
Similar products of nestainer rack
Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack
Product drawings
