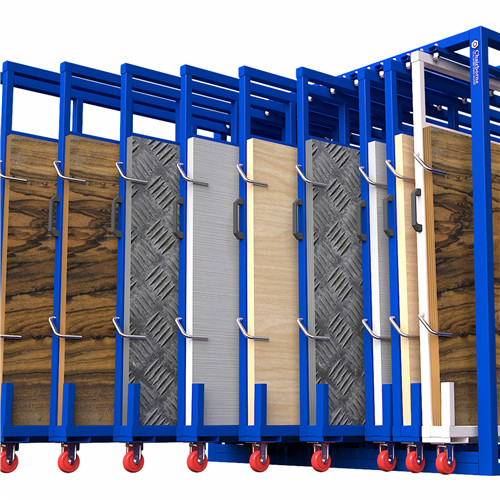

Roll Out Racks
The Roll Out Racks the drawer structure design principle.It is mainly composed of two parts the sheet glass storage racks and the drawer.Each drawer has a space-saving design
| Code | Dimensions(mm) | Weiht | Material | Capacity (t) | Surface | ||||
| L | W | H | a | b | KG | ||||
| 050003398 | 1785 | 1660 | 1635 | 1700 | 1400 | 521 | Q235 | 8t | Powder coating |
1.This product is suitable for storing all kinds of metal, wood, plastic and other plates
2.There are multiple pull-out storage units, each unit stores the plates independently to prevent the plates from scratching each other;
3.Intensive storage mode to improve space utilization;
4.specifications can be customized according to user needs;
5.Canceling to the storage method of the whole stack in the past; in the best way ,when need to pick up the panel ,which one is used to take which one, convenient and safe;
6.Casters under each drawer can be easily pulled out and pushed back;
7. The main frame is provided with rolling guides to prevent derailment and collision;
Product drawings
