100 mm Nesting Gap for Stack Racks: Forklift Entry and Empty Return Savings

When a stack rack is used as a returnable asset, the question is not only how much it can carry when full. The real cost shows up when the rack comes back empty, waits in a staging zone, or sits through a slow season. That is why the nesting clearance matters: it decides whether empty frames slide in smoothly, or waste space and create handling friction.

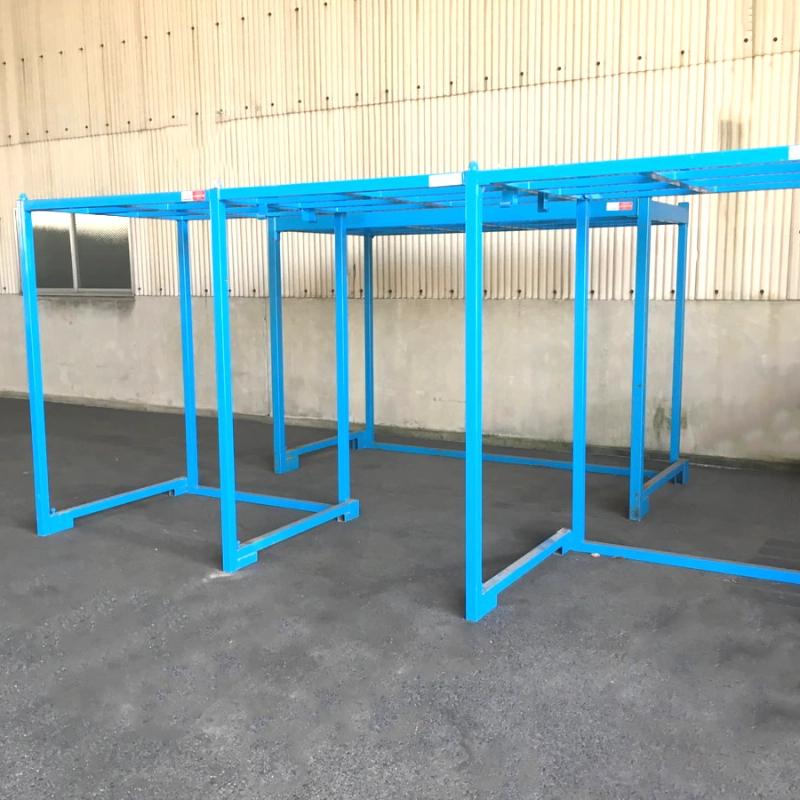

In this Rerack project sample, the nesting gap is set at 100 mm. That number is not presented here as a universal standard. It is a practical project value that balances two things at the same time: the fork must enter and exit without binding, and the empty rack still has to nest tightly enough to reduce trailer volume and yard footprint.

What the 100 mm gap is solving

The purpose of the nesting gap is simple: make the empty frame stackable without turning the forklift approach into a precision-only job. If the gap is too tight, the operator has to fight the frame, scrape the coating, or re-enter at a different angle. If the gap is too loose, the footprint grows and the whole point of nesting is lost.

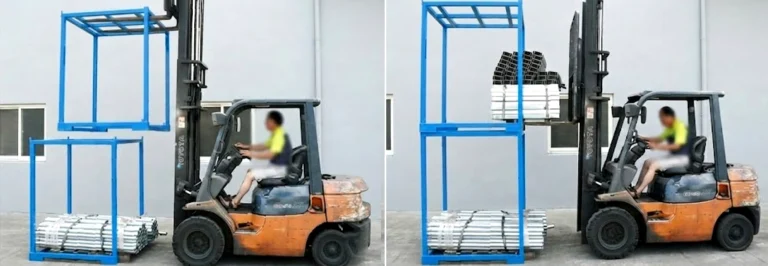

A 100 mm project gap gives the operator enough room to pick up, settle, and set down the frame while keeping the empty rack bundle compact. For export loops and warehouse returns, that is the difference between a rack that behaves like a return asset and a rack that behaves like dead space.

Why fork thickness should set the clearance

The right clearance is not chosen by guesswork. It should be matched to the actual fork thickness, fork heel geometry, and the real insertion angle used in the yard. A catalog number is not enough, because different forklifts and attachments behave differently once the operator starts loading under time pressure.

That is why the 100 mm value in this sample should be read as a project specification, not a claim that every site should copy it unchanged. If your forklift forks are thicker, your turning tolerance is smaller, or your handling route is rougher, the nesting gap should be rechecked against the real equipment that will touch the frame.

What this means for return freight and seasonal buffering

Once empty racks nest correctly, the return leg changes from a volume problem into a controllable logistics task. More nested units can fit per trailer, so the cost of bringing empties back drops. In an export loop, that matters as much as outbound loading efficiency, because the empty return leg is part of the asset life cycle.

Seasonal businesses feel the same effect inside the warehouse. During peak, compact empty racks can be parked in a corner staging area without consuming full pallet-rack lanes. During off-season, the same stack rack pool can be held back as buffer capacity instead of becoming a storage burden.

Where this sample fits, and where it does not

This sample is a good fit when the operation relies on forklifts, returnable racks, and variable demand. It suits export trade, 3PL cross-dock pools, and seasonal overflow rooms where empty return volume and staging density matter.

It is not the first choice when the site needs fixed, highly selective pallet access on every level. In that case, standard pallet racks may be more practical. If the layout is fixed and lane density is the main target, drive-in pallet racking can be the better alternative. If the cargo can tolerate bottom compression and the handling route is simple, floor block stacking may still be acceptable, but it gives up the control and return efficiency that a stack rack system provides.

For teams comparing stack racks, post pallets, and other returnable storage assets, the decision should start with the actual fork thickness, the return route, and the amount of space the empty frame is allowed to consume. That is the real logic behind the 100 mm sample gap.

FAQ

Is 100 mm always the right nesting gap?

No. In this article it is a project sample value. The final clearance should be confirmed against the real forklift fork thickness, operator tolerance, and the handling route used in daily work.

When should I choose another system instead?

If your main priority is selective picking and fixed storage positions, a standard pallet rack may be better. If you want high lane density in a fixed layout, drive-in pallet racking may be more suitable. Use this stack rack approach when return volume, nesting efficiency, and forklift-based circulation are the main pain points.
