When a motorcycle exporter compares a 20ft container with a 40ft high-cube, the useful question is not simply “how many racks fit?” The answer depends on the motorcycle envelope, the Mtrack frame selected, whether posts are folded or removed, the wheel-fixing arrangement, and how each unit is protected for the voyage.
For budgeting freight, the documented Mtrack project range is approximately 28–56 sets in a 20ft container and 72–135 sets in a 40ft high-cube container. These are project and layout references—not a universal loading rating. The final count must be checked against the approved drawing, packing method and container loading plan. For the product concept, see PDP-02: Mtrack motorcycle pallet rack.
Why the same motorcycle pallet rack can produce different container counts

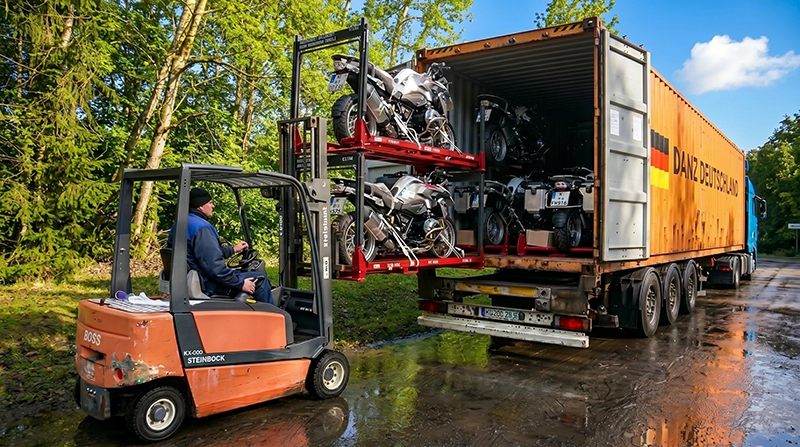

An Mtrack is a configurable steel motorcycle pallet and motorcycle pallet rack system. Its base is designed around the motorcycle rather than general cargo, with a wheel groove or channel, front-wheel locating or clamping options, strap points and forklift access. Those details make the motorcycle a controlled, fork-handled logistics unit, but they also affect the shipping footprint.
A compact design may use a narrower or shorter platform for a defined motorcycle envelope. A mixed-fleet program may need more length, width or clearance. Fork openings can also be configured for two-way or four-way handling, with the opening size and center spacing confirmed on the drawing. Fold-down or removable posts help reduce empty-return volume, while fixed or more protective structures can occupy additional space. A rack that works well in a warehouse is therefore not automatically the rack that gives the highest container count.
What the documented 20ft and 40HQ references show
The following figures are useful for an initial freight comparison:
20ft container: technical layouts recorded 28–32 sets; another project reference recorded 35 sets; a freight-planning layout recorded 56 sets.
40ft high-cube container: a motorcycle logistics project recorded 72 sets; technical layouts recorded 80–90 sets; another project recorded 88 sets; and a freight-planning reference recorded 135 sets.
The spread is intentional. It reflects different outer dimensions, loading direction, stack policy, wheel chocks or wheel restraints, post configuration and packaging. For example, a technical arrangement may be revised from about 90 to 80 sets in a 40HQ, or from 32 to 28 sets in a 20ft, when the structural layout or packing assumption changes. The figures should be read as evidence of design sensitivity, not as a promise that every Mtrack order will load to one of these numbers.
A practical method to estimate your motorcycle shipping pallet quantity
Use a four-step estimate before asking for a freight quote:
- Fix the vehicle envelope. Record motorcycle length, handlebar width, height, wheelbase, weight and any mixed models. Reference Mtrack projects cover different envelopes and working loads, so do not substitute a catalogue maximum for your actual fleet.
- Choose the rack configuration. Confirm platform dimensions, wheel groove or chock type, front-wheel restraint, strap points, forklift direction, and whether posts are fixed, fold-down or removable. These features determine both usable footprint and stacking clearance.
- Separate packing assumptions. Stretch-wrap or film protection generally allows a tighter layout than individual wooden crates, but the required clearance, corner protection and export handling method must be confirmed. A metal motorcycle pallet is not automatically a metal motorcycle shipping crate, and the packing decision changes the count.
- Test the container layout. Check the clear internal length, width and height, door access, loading sequence, stack height and safe forklift path. Calculate the number per floor layer, then apply only the stack levels permitted by the final structure and vehicle arrangement. The result is an estimate until the drawing and loading plan are approved.
When a 20ft container or 40HQ is the better comparison
- Choose a 20ft comparison when the shipment is a smaller batch, when destination delivery is constrained, or when the selected pallet footprint makes a shorter container easier to load and unload.
- Compare a 40HQ when annual volume is larger and the design can use its extra length and height without exceeding the approved stack or handling limits.
- Use film-wrapped units only when the motorcycle, finish protection and export handling process allow it; wooden-crate packing can reduce the practical quantity even when the steel rack dimensions do not change.
- Request a mixed-fleet study when motorcycle sizes, wheel chocks or rack types vary. A single headline count can be misleading if the loading plan must reserve clearance for the largest model.
FAQ: container loading for Mtrack motorcycle racks
Is 135 sets the standard 40HQ capacity?
No. 135 sets is a documented freight-planning reference under its own layout and packing assumptions. Other references show 72, 80–90 and 88 sets in 40HQ containers. The same principle applies to 20ft references of 28–32, 35 and 56 sets. Final quantity depends on packaging, wheel restraints, rack type, posts, loading direction and the approved drawing.
What should an exporter send for a confirmed estimate?
Send the container type, motorcycle dimensions and weights, annual quantity, required packaging, wheel-fixing preference, forklift access, stacking policy and destination handling constraints. Steel Pallet can then prepare a container loading proposal rather than applying a fixed number. Start with the BLOG-02 specification guide, review the handling examples in SOCIAL-04, and submit the container type plus annual volume for a project-specific estimate.
