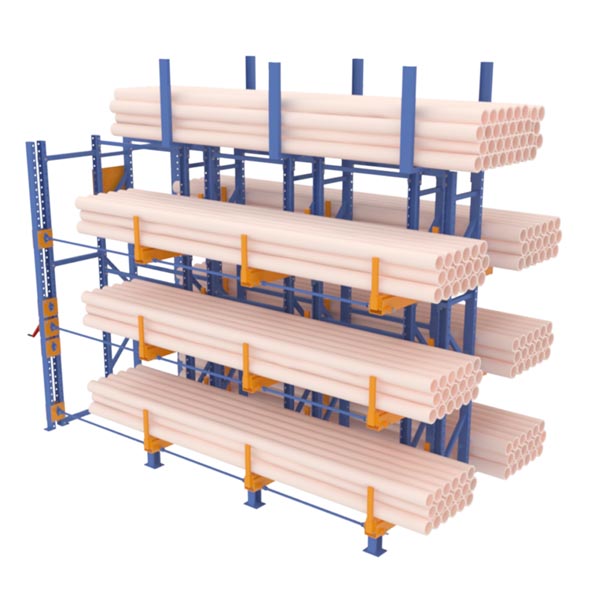

Roll Out Cantilever Rack
Roll out cantilever rack for crane-loaded pipe, tubing, bar stock and long materials. Custom arm length, load rating and warehouse layout support.
| Overall | Overall | Bracket Widt h | Bay Width | Layers | Capacity | SurfaceTreatment |
| L(mm) | H(mm) | W(mm) | W1*H1(mm) | n | T(kg) | Powder Coating |
| 6400 | 3720 | 1640 | 500 | 4 | 1000 | Blue |
| Customized as required | ||||||
1.This product is especially suitable for storing all kinds of longer materials.
2.The product has an independent retractable storage space, which can be used with lifting equipment for convenient access.
3.The single shelf can carry up to 5 tons, and the whole shelf can store dozens of tons of goods.
4.The cantilever is controlled to extend and retract through the corresponding shaft on the transmission box, which is safe and convenient.
5.Cantilever extends and retracts along a straight line to save space.
6.The specifications of this product can be customized according to user requirements.
7.Multiple storage units to facilitate cargo classification.
8.Cantilever materials are all high quality thick wall profiles, strong and durable, with accurate dimensions.
9.The cantilever active roller has anti-skid treatment, which increases the friction with the telescopic arm.
Product drawings
