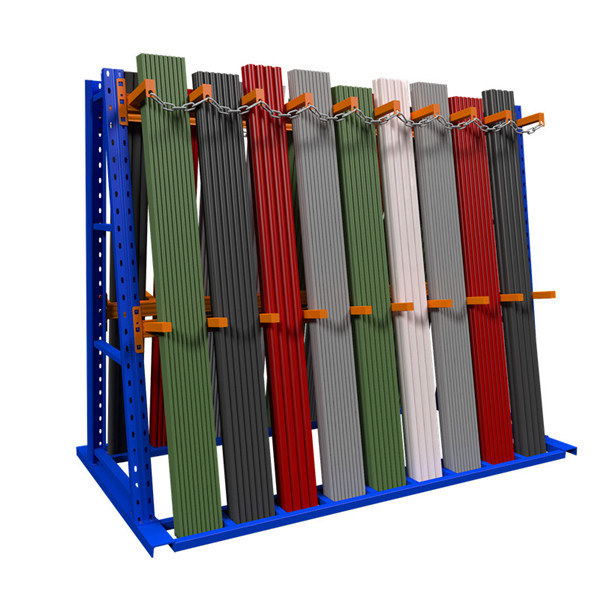

Vertical Pipe Storage Racks
Vertical pipe storage racks for stainless steel pipe, PVC pipe and bend-sensitive long materials. Custom upright rack sizes for pipe warehouses and distributors.
| code | Spec Size | |||
| A | B | C | H | |
| 130011228 | 2500mm | 1400mm | —— | 2000mm |
1.Vprack is used for storage of pipes with poor bending resistance, such as stainless steel pipes, and is suitable for pipe distribution and other industries;
2.Vprack is a vertical movable pipe, which can be deformed by sparks;
3. Vprack has multiple storage units to classify pipes into categories;
4. Compared with the horizontal storage cantilever, Vprack has lower cost, stronger storage capacity and more separation;
5.Use high-quality carbon steel as raw material;
6.Both the base and the A-frame are welded with strength, which is strong and durable;
7.Equipped with interception chains to prevent cargo dumping;
Product drawings
